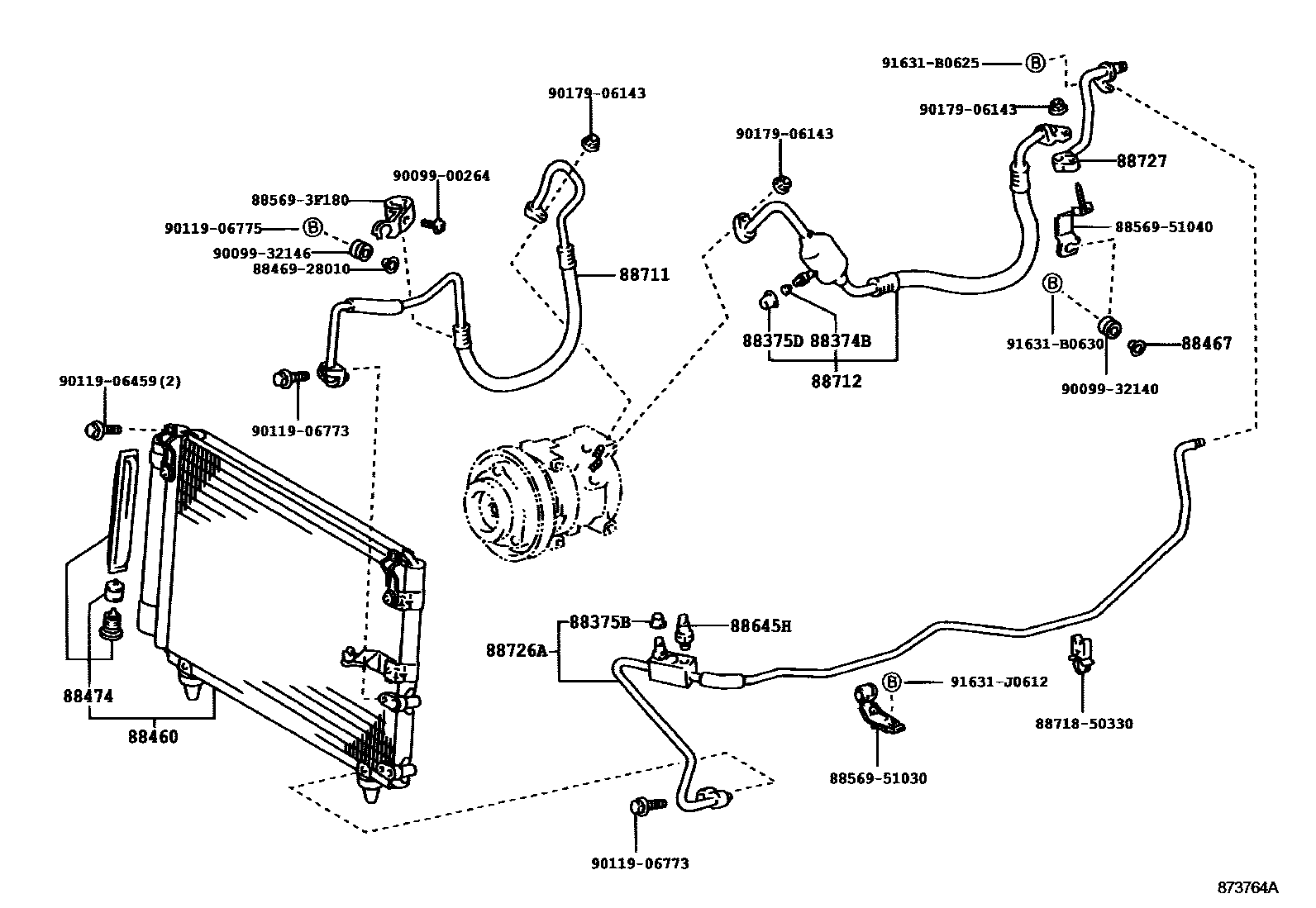

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1FRONT 0002 1FRONT--W(REAR AIR CONDITIONER0003 1FRONT 0004 1FRONT--W(REAR AIR CONDITIONER0005 1REAR 0006 1O-RING 0007 1O-RING 0008 1REAR

88374BVALVE, SERVICE, NO.1

main88374-30010iJZS175199909-200108

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iJZS175199909-200108

88375DCAP, SERVICE VALVE, NO.2

main88375-30290iJZS175199909-200108

88460CONDENSER ASSY, COOLER

main88460-30830iJZS175199909-200108

88467CUSHION, COOLER CONDENSER, NO.1

main88467-14070iJZS175199909-200108

88474DRYER, COOLER

main88474-47010iJZS175199909-200108

88645HSWITCH, PRESSURE NO.1

main88645-22070iJZS175199909-200108

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-3A460iJZS175199909-200108

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-3A870iJZS175199909-200108

main88712-51020iJZS175200108-200312

88726APIPE, COOLER REFRIGERANT LIQUID, A

main88726-3K520iJZS175199909-200108

main88726-3K630iJZS175199909-200108

W(REAR AIR CONDITIONER)

88727TUBE, SUCTION, NO.2

main88727-3F200iJZS175199909-200108

W(REAR AIR CONDITIONER)

main88727-51020iJZS175199909-200108

8846928010SWITCH, PRESSURE CONTROL

main88469-28010

885693F180CLAMP (FOR COOLER RELAY)

main88569-3F180

8856951030CLAMP (FOR COOLER RELAY)

main88569-51030

8856951040CLAMP (FOR COOLER RELAY)

main88569-51040

8871850330PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-50330

9009900264

main90099-00264

9009932140

main90099-32140

9009932146

main90099-32146

9011906459

main90119-06459

9011906773

main90119-06773

9011906775

main90119-06775

9017906143

main90179-06143

91631B0625

main91631-B0625

91631B0630

main91631-B0630

91631J0612

main91631-J0612

26 parts on this diagram · 8 diagrams in section
