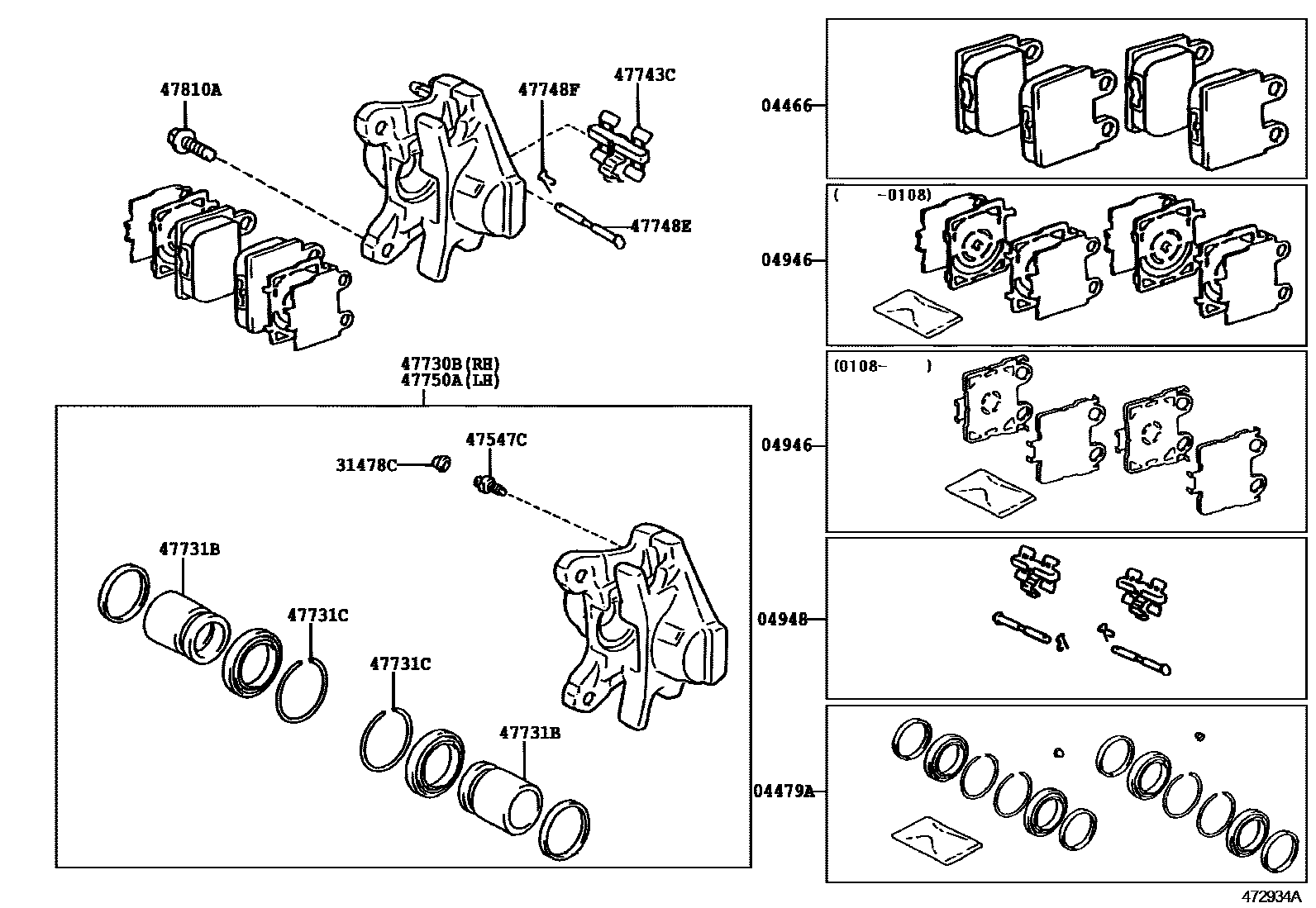

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-22180iJZS175200209-200312

MARK AK PA561

main04466-30150iJZS175199909-200002

MARK AK PA544

main04466-30151iJZS175200002-200201

MARK AK PA544

main04466-51011iJZS175200201-200209

MARK AK PA544

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-30231iJZS175199909-200312

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-30071iJZS175199909-200108

main04946-53010iJZS175200108-200312

04948FITTING KIT, DISC BRAKE, REAR

main04948-30071iJZS175199909-200312

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iJZS175199909-200312

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-27030iJZS175199909-200312

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-30480iJZS175199909-200312

47731BPISTON, REAR DISC BRAKE

main47731-30190iJZS175199909-200312

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90520-52006iJZS175199909-200312

47743CSPRING, ANTI-SQUEAL(FOR REAR DISC BRAKE)

main47743-30030iJZS175199909-200312

47748EPIN, W/HOLE(FOR REAR DISC BRAKE)

main47735-30011iJZS175199909-200312

47748FCLIP(FOR REAR DISC BRAKE)

main90468-12028iJZS175199909-200312

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-30480iJZS175199909-200312

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174iJZS175199909-200312

14 parts on this diagram · 1 diagram in section
