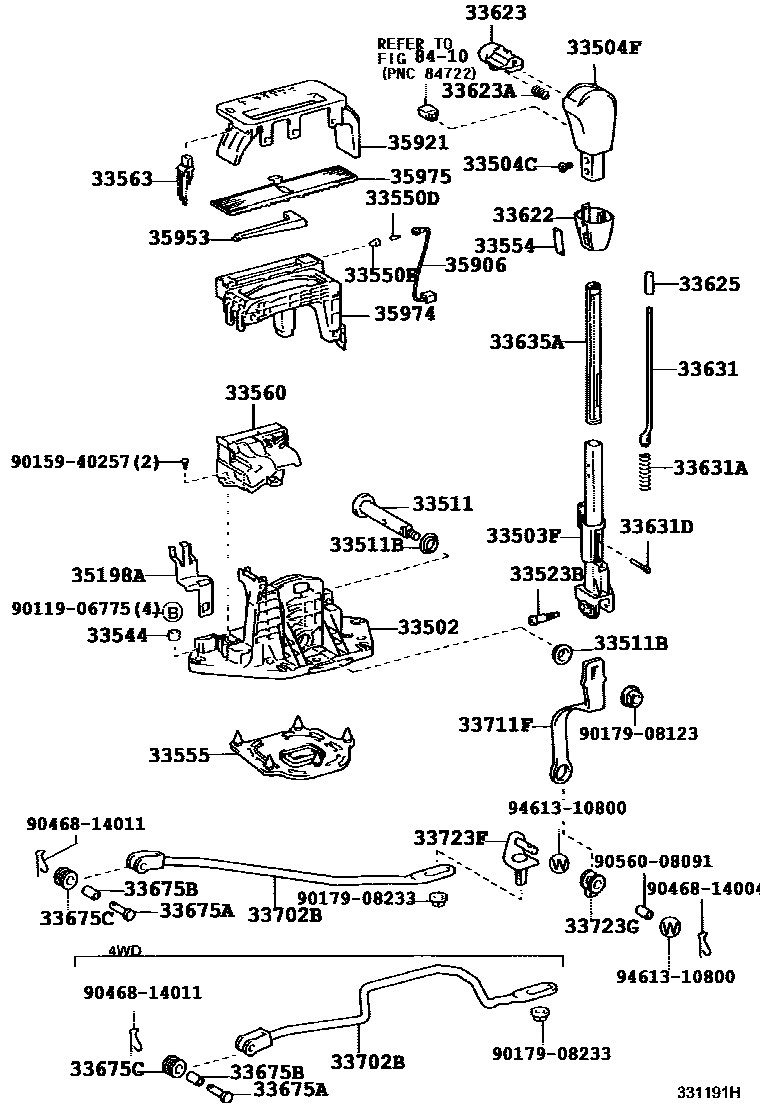

SHIFT LEVER & RETAINER
33502PLATE SUB-ASSY, SHIFT LEVER
33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33504CSCREW (FOR SHIFT LEVER KNOB SETTING)
33504FKNOB SUB-ASSY, SHIFT LEVER
LEATHER,DK.CHARCOAL,TRIM1#
LEATHER,SANDAL WOOD,TRIM0#
URETHANE,DK.CHARCOAL,TRIM1#
URETHANE,SANDAL WOOD,TRIM0#
33511SHAFT, CONTROL (FOR FLOOR SHIFT)
33511BBUSH (FOR CONTROL SHAFT)
33523BPIN, SHIFT LEVER (FOR FLOOR SHIFT)
33544INSERT, SHIFT LEVER, NO.1
33550DBULB, POSITION INDICATOR LAMP
12V 1.2W W/O SOCKET
33550ECAP, POSITION INDICATOR LAMP
33554CAP, SHIFT LEVER
33555BOOT, SHIFT LEVER
33560UNIT ASSY, SHIFT LOCK CONTROL
33563BUTTON, SHIFT LOCK RELEASE
33622COVER, SHIFT LEVER KNOB, NO.1
33623BUTTON, SHIFT LEVER KNOB
DK.CHARCOAL,TRIM1#
SANDAL WOOD,TRIM0#
33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
33625SLEEVE, SHIFT LEVER KNOB
33631ROD, DETENT
33631ASPRING, COMPRESSION (FOR DETENT ROD)
33631DPIN, GROOVED (FOR DETENT ROD)
33635AGUIDE, WIRE, NO.1 (FOR SHIFT LEVER)
33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)
33675BBUSH (FOR TRANSMISSION CONTROL ROD)
33675CGROMMET (FOR TRANSMISSION CONTROL ROD)
33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)
33711FLEVER, CONTROL SHAFT (FOR FLOOR SHIFT)
33723FSWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33723GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)
35198ABRACKET, WIRE HARNESS CLAMP, NO.4
35906WIRE SUB-ASSY, INDICATOR LAMP
35921PLATE, CONTROL POSITION INDICATOR
35953GUIDE, POSITION INDICATOR LIGHT
35974HOUSING, POSITION INDICATOR, LOWER
35975COVER, SLIDE (FOR POSITION INDICATOR)
8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION
9011906775
main90119-06775
9015940257
main90159-40257
9017908123
main90179-08123
9017908233
main90179-08233
9046814004
main90468-14004
9046814011
main90468-14011
9056008091
main90560-08091
9461310800
main94613-10800
44 parts on this diagram · 1 diagram in section
