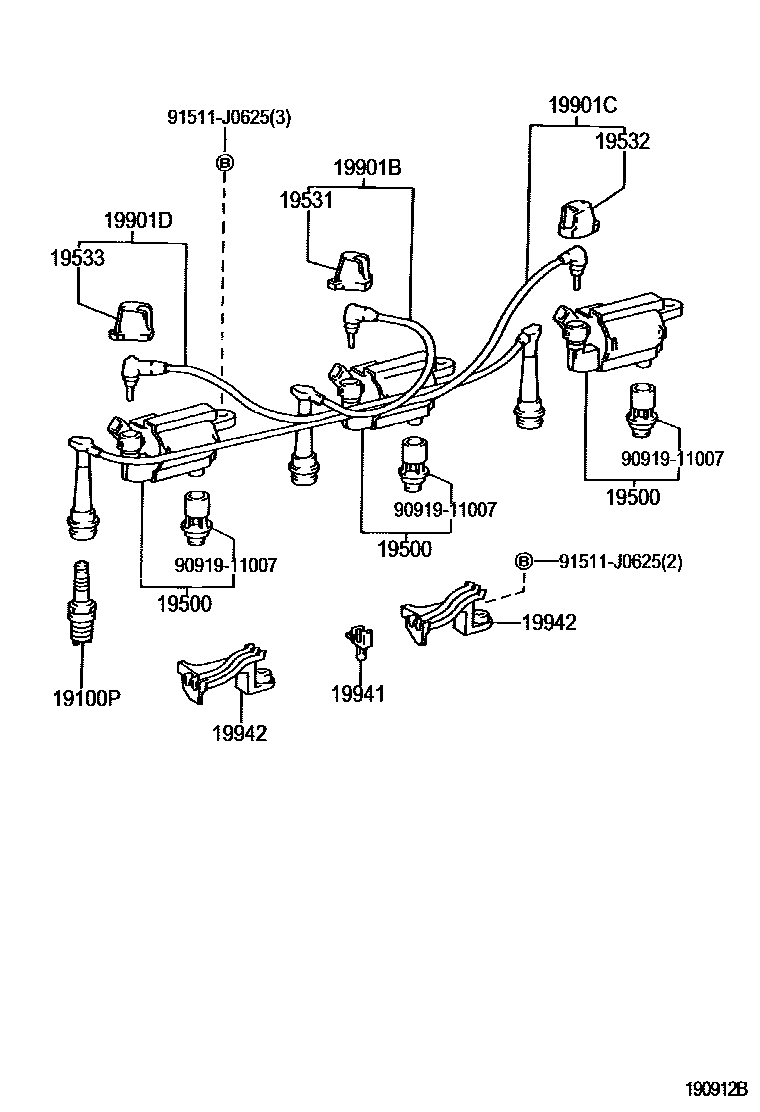

IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90919-01196×6i2JZGE..JZS175199909-200012

PK16TR11

main90919-01197×6i2JZGE..JZS175199909-200012

BKR5EKPB11

main90919-01219×6i2JZGE..JZS175200012-200108

SK16R-P11

19500COIL ASSY, IGNITION

main90919-02216×3i2JZGE..JZS175199909-200108

19531HOLDER, RESISTIVE CORD, NO.1

main19539-50010i2JZGE..JZS175199909-200108

19532HOLDER, RESISTIVE CODE, NO.2

main19532-46010i2JZGE..JZS175199909-200108

19533HOLDER, RESISTIVE CORD, NO.3

main19539-70010i2JZGE..JZS175199909-200108

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-15317i2JZGE..JZS175199909-200108

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-15456i2JZGE..JZS175199909-200108

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-15457i2JZGE..JZS175199909-200108

19941CLAMP, RESISTIVE CORD, NO.1

main90929-01361i2JZGE..JZS175199909-200108

19942CLAMP, RESISTIVE CORD, NO.2

main90929-01360×2i2JZGE..JZS175199909-200108

9091911007

main90919-11007

91511J0625

main91511-J0625

12 parts on this diagram · 1 diagram in section
