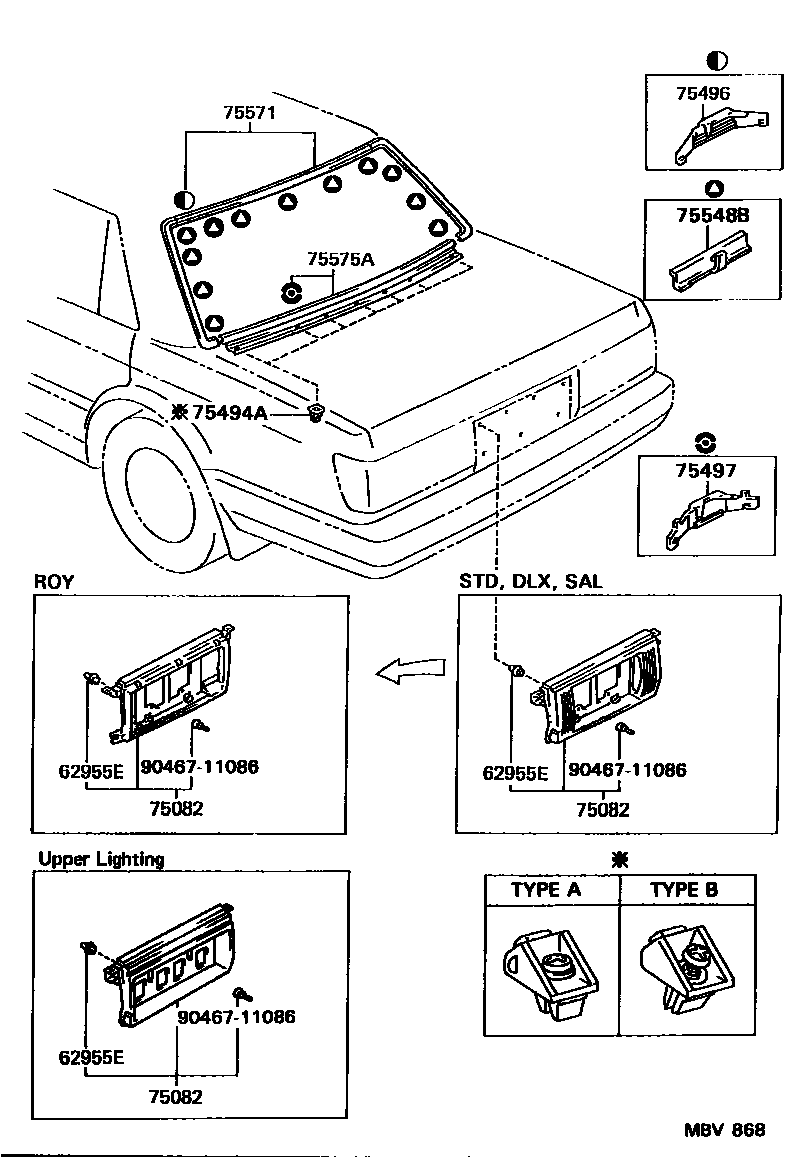

REAR MOULDING

62955ERETAINER, LOWER BACK FINISH PANEL

main62955-20040×4iGS131,JZS133,LS130,YS132199110-200104

75082PANEL SUB-ASSY, LOWER BACK FINISH, CENTER

main75082-30220iJZS133..ROY199110-199308

main75082-30240iJZS133,LS130,YS132..B,D,G199110-199512

main75082-30250iGS131;JZS133..5F..GEN..Q199408-199512

main75082-30280iJZS133..4FC..Q;JZS133..5F..GCC..Q199408-199512

75494ACLIP, OUTSIDE MOULDING, NO.3

main75494-30040×5iGS131,JZS133,LS130,YS132199110-199211

TYPE A

main75494-30060×2iGS131,JZS133,LS130,YS132199110-200104

TYPE B

75496CLIP, BACK WINDOW OUTSIDE MOULDING, NO.1

main75496-30080×12iGS131,JZS133,LS130,YS132199110-200104

75497CLIP, BACK WINDOW OUTSIDE MOULDING, NO.2

main75497-30050×7iGS131,JZS133,LS130,YS132199110-200104

75548BFASTENER, BACK WINDOW OUTSIDE MOULDING

main75548-32070×12iGS131,JZS133,LS130,YS132199110-200104

75571MOULDING, BACK WINDOW, OUTSIDE UPPER

main75571-30270iGS131,JZS133,LS130,YS132199110-200104

75575AMOULDING, BACK WINDOW, OUTSIDE LOWER

main75575-30240iGS131,JZS133,LS130,YS132199110-200104

9046711086

main90467-11086

9 parts on this diagram · 1 diagram in section
