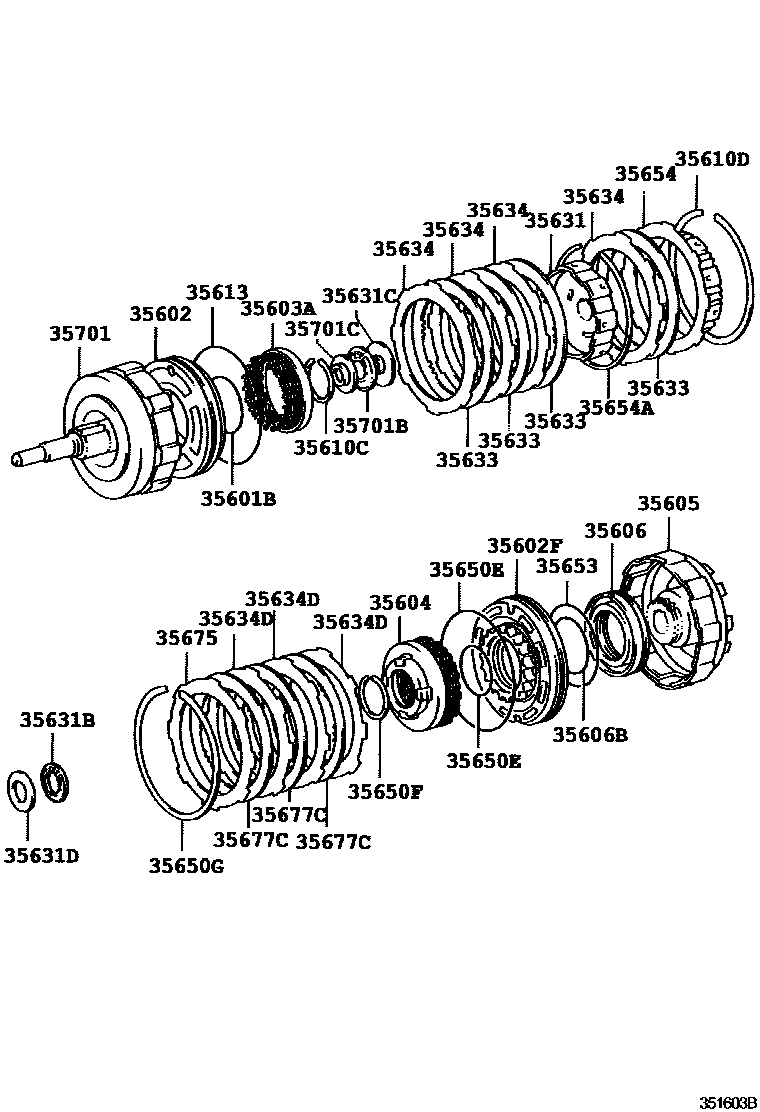

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
35601BRING, O (FOR FRONT CLUTCH DRUM)
35602PISTON SUB-ASSY, FRONT CLUTCH
HONG KONG SPEC
35602FPISTON SUB-ASSY, REAR CLUTCH, NO.2
35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN
HONG KONG SPEC
35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN
35605DRUM SUB-ASSY, REAR CLUTCH W/2ND SUN GEAR
35606PISTON SUB-ASSY, REAR CLUTCH
35606BRING (FOR REAR CLUTCH PISTON INNER)
35610CRING, SHAFT SNAP (FOR FRONT CLUTCH PISTON RETURN SPRING)
35610DRING, HOLE SNAP (FOR FRONT MULTIPLE DISC CLUTCH)
35613RING, CLUTCH PISTON OIL SEAL, OUTER
35631HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH)
35631BBEARING, THRUST(FOR FRONT CLUTCH HUB)
35631CRACE, THRUST BEARING(FOR FRONT CLUTCH HUB FRONT)
35631DRACE, THRUST BEARING(FOR FRONT CLUTCH HUB REAR)
35633DISC, CLUTCH (FOR FRONT CLUTCH)
35634DPLATE, REAR CLUTCH
T=1.8
35650ERING, O (FOR REAR CLUTCH PISTON OUTER)
INNER
INNER
OUTER
OUTER
35650FRING, SHAFT SNAP
35650GRING, SHAFT SNAP (FOR REAR CLUTCH PISTON RETURN SPRING)
35653RING, REAR CLUTCH OIL SEAL, OUTER
35654HUB, REAR CLUTCH
35654ARING, HOLE SNAP (FOR REAR CLUTCH HUB)
35675FLANGE, REAR CLUTCH
T=4.0
35677CDISC, REAR CLUTCH
35701SHAFT SUB-ASSY, INPUT
HONG KONG SPEC
HONG KONG SPEC
35701BBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT REAR)
35701CRACE, THRUST BEARING (FOR INPUT SHAFT REAR)
29 parts on this diagram · 3 diagrams in section
