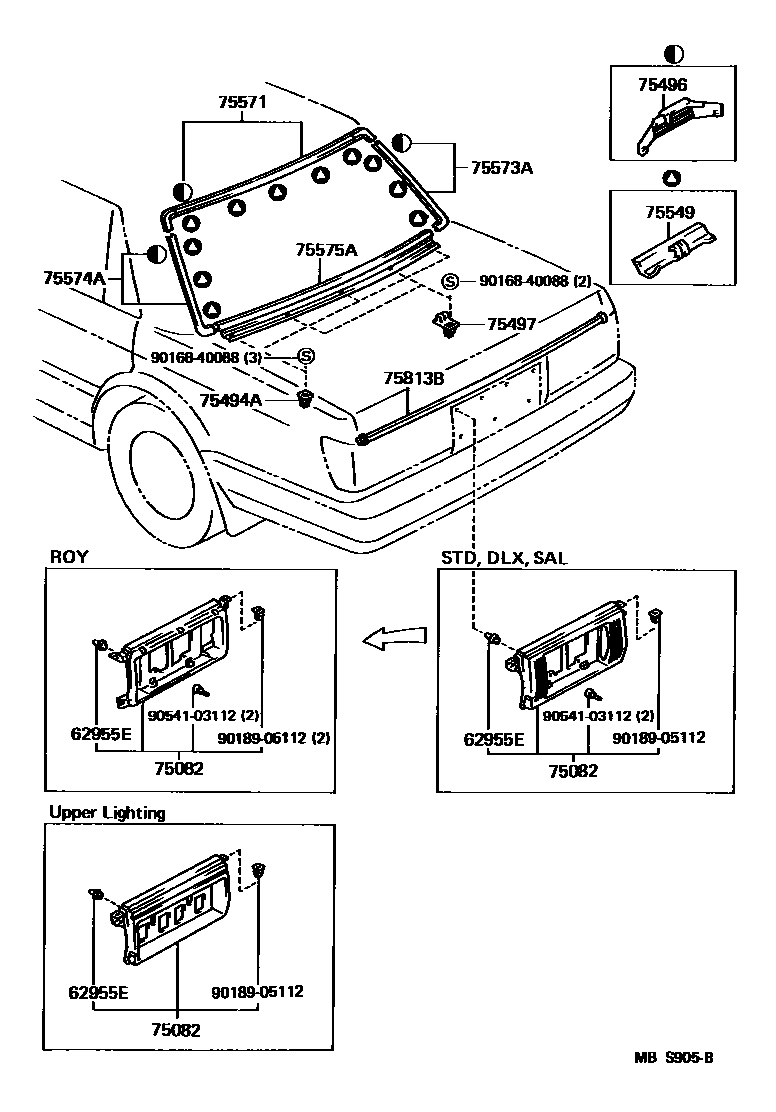

REAR MOULDING
62955ERETAINER, LOWER BACK FINISH PANEL
75082PANEL SUB-ASSY, LOWER BACK FINISH, CENTER
main75082-30130iMS132,135..ROY..GEN; MS135..SED..GCC;LS130,MS132,133,YS132..SED..(DLX,SAL,STD)198709-199110
W(SIDE LIGHTING)
W(UPPER LIGHTING)
75494ACLIP, OUTSIDE MOULDING, NO.3
75496CLIP, BACK WINDOW OUTSIDE MOULDING, NO.1
75497CLIP, BACK WINDOW OUTSIDE MOULDING, NO.2
BLUE
75549FASTENER, BACK WINDOW OUTSIDE MOULDING, NO.2
75571MOULDING, BACK WINDOW, OUTSIDE UPPER
75573AMOULDING, BACK WINDOW, OUTSIDE RH
75574AMOULDING, BACK WINDOW, OUTSIDE LH
75575AMOULDING, BACK WINDOW, OUTSIDE LOWER
75813BMOULDING, LUGGAGE COMPARTMENT DOOR
9016840088
main90168-40088
9018905112
main90189-05112
9054103112
main90541-03112
14 parts on this diagram · 5 diagrams in section
