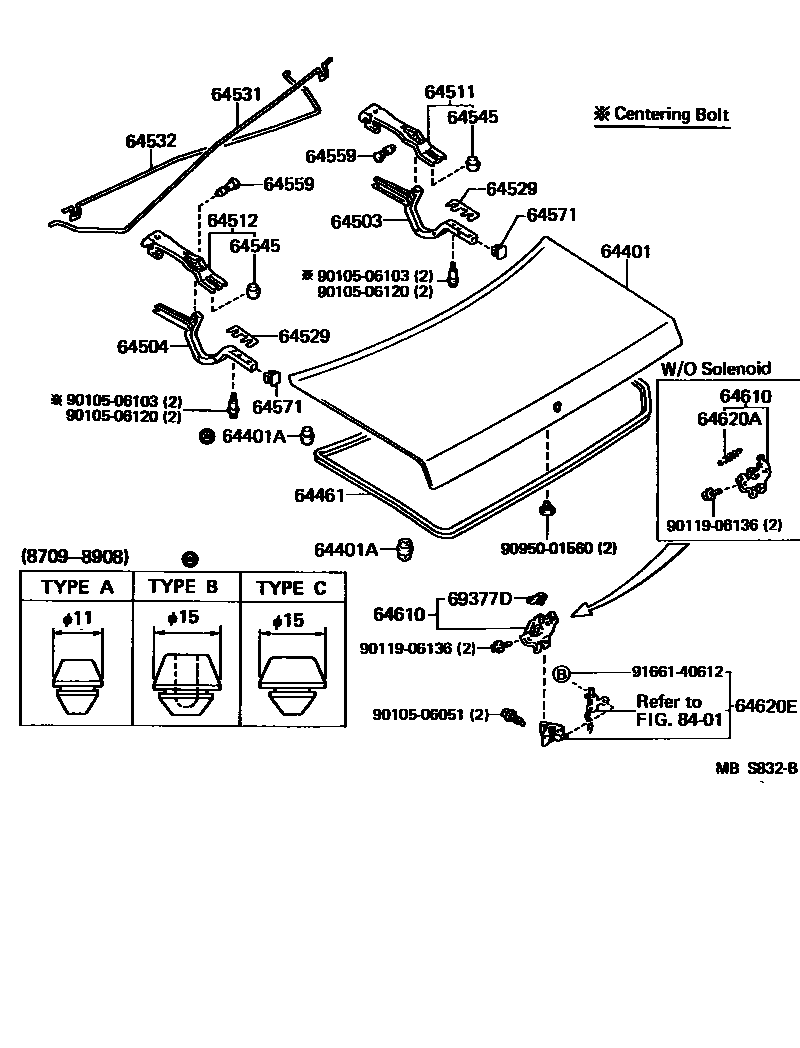

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-30620iLS130,YS132198709-198908

main64401-30622iGS131,MS132,135..SED198709-198908

main64401-30640iYS132..4F198904-198906

011PHILIPPINE SPEC

main64401-30672iMS133,135..HT198709-199110

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-08009×2iLS130,MS13#,YS132..HT,SED198709-198802

FR

main90541-08018×2iGS131,LS130,MS13#,YS132..HT,SED198805-199110

FR

main90541-09017×2iLS130,MS13#,YS132..HT,SED198802-198805

FR

main90541-20003×2iGS131,LS130,MS13#,YS132..HT,SED198709-199110

RR

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-30170iGS131,LS130,MS13#,YS132..SED198709-199110

main64461-30190iMS133,135..HT198709-199110

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-30020iGS131,LS130,MS13#,YS132..SED198709-199110

main64503-30030iMS133,135..GCC198709-198712

main64503-30040iMS133,135..GCC198712-198902

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64504-30020iGS131,LS130,MS13#,YS132..SED198709-199110

main64504-30030iMS133,135..GCC198709-198712

main64504-30040iMS133,135..GCC198712-198902

64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64511-30080iGS131,LS130,MS13#,YS132..SED198709-199110

main64511-30120iMS133,135..HT198709-199110

64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64512-30040iGS131,LS130,MS13#,YS132..SED198709-199110

main64512-30050iMS133,135..HT198709-199110

64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE

main64529-14010iGS131,LS130,MS13#,YS132..HT,SED198709-199110

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-30150iGS131,LS130,MS13#,YS132..SED198709-199110

main64531-30180iMS133,135..HT198709-199110

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-30150iGS131,LS130,MS13#,YS132..SED198709-199110

main64532-30180iMS133,135..HT198709-199110

64545CUSHION, LUGGAGE DOOR HINGE

main90541-10144×2iGS131,LS130,MS13#,YS132..SED198709-199110

main90541-11006×2iMS133,135..HT198709-199110

64559PIN, LUGGAGE DOOR HINGE

main64559-30010×2iGS131,LS130,MS13#,YS132..HT,SED198709-199110

64571COVER, LUGGAGE COMPARTMENT DOOR HINGE

main64571-30020×2iGS131,LS130,MS13#,YS132..HT,SED198709-199110

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-30020iLS130,MS132,133,YS132..(DLX,STD)..GEN198709-199110

main64610-30070iLS130..4H; YS132;LS130,MS132,133..(4F,5F)..STD199008-199110

HONG KONG SPEC; W(ELECTRIC MAGNET)

64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90506-08001iLS130,MS132,133,YS132..(DLX,STD)..GEN198709-199110

WD=0.8,CW=13

64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR

main64620-30070iGS131,LS130,MS13#,YS132..HT,SED198709-198908

main64620-30071iGS131,LS130,MS13#,YS132..HT,SED198908-199110

69377DSNAP, DOOR LOCK CONTROL ROD

main69377-30031iGS131,LS130,MS13#,YS132..HT,SED198904-199008

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506051

main90105-06051

9010506103

main90105-06103

9010506120

main90105-06120

9011906136

main90119-06136

9095001560

main90950-01560

9166140612

main91661-40612

24 parts on this diagram · 1 diagram in section
