SIDE MOULDING

0001 1 0002 1 0003 1 0004 1 0005 1

75553MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-30150iLS110,MS11#,RS110197909-198203

main75551-30151iLS110,MS112,RS110198203-198307

75554MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-30150iLS110,MS11#,RS110197909-198203

main75552-30151iLS110,MS112,RS110198203-198307

75555MOULDING, ROOF DRIP SIDE FINISH, REAR RH

main75055-39035iLS110,MS11#,RS110197909-198307

75556MOULDING, ROOF DRIP SIDE FINISH, REAR LH

main75056-39025iLS110,MS11#,RS110197909-198307

75721MOULDING, FRONT DOOR BELT, RH

main75710-39045iLS110,MS112,RS110197909-198307

W/DOOR MIRROR

main75710-39055iMS112..SAL..EUR;MS112..(BTP,DLX,ROY)..(EUR,GEN)..EFI;LS110,MS11#,RS110..(EUR,GEN)..(CBR,DSL)197909-198307

75722MOULDING, FRONT DOOR BELT, LH

main75720-39045iMS112..SAL..EUR;LS110,MS112,RS110..CBR,DSL;MS112..(DLX,ROY)..(EUR,GEN)..EFI197909-198307

W/DOOR MIRROR

main75720-39055iMS112..RHD;LS110,MS111,RS110..SED..(ARL,GEN)197909-198307

75733MOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-30070iMS11#,RS110..ROY,SAL197909-198307

75734MOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-30060iMS11#,RS110..ROY,SAL197909-198307

75735MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH

main75753-30030iMS11#,RS110..ROY,SAL197909-198307

75736MOULDING, FRONT DOOR WINDOW FRAME, UPPER LH

main75754-30040iMS11#,RS110..ROY,SAL197909-198307

75737MOULDING, FRONT DOOR WINDOW FRAME, FRONT RH

main75751-30120iMS11#,RS110..ROY,SAL197909-198307

75738MOULDING, FRONT DOOR WINDOW FRAME, FRONT LH

main75752-30110iMS11#,RS110..ROY,SAL197909-198307

75751MOULDING, REAR DOOR BELT, RH

main75730-30050iLS110,MS11#,RS110197909-198307

75752MOULDING, REAR DOOR BELT, LH

main75740-30100iLS110,MS11#,RS110197909-198307

75761MOULDING, REAR DOOR WINDOW FRAME, REAR RH

main75765-30080iMS11#,RS110..ROY,SAL197909-198307

75762MOULDING, REAR DOOR WINDOW FRAME, REAR LH

main75766-30080iMS11#,RS110..ROY,SAL197909-198307

75765MOULDING, REAR DOOR WINDOW FRAME, UPPER RH

main75763-30040iMS11#,RS110..ROY,SAL197909-198307

75766MOULDING, REAR DOOR WINDOW FRAME, UPPER LH

main75764-30040iMS11#,RS110..ROY,SAL197909-198307

75767MOULDING, REAR DOOR WINDOW FRAME, FRONT RH

main75761-30060iMS11#,RS110..ROY,SAL197909-198307

75768MOULDING, REAR DOOR WINDOW FRAME, FRONT LH

main75762-30060iMS11#,RS110..ROY,SAL197909-198307

75851MOULDING, ROCKER PANEL, RH

main75850-39035iLS110,MS11#,RS110..DLX197909-198307

75851AMOULDING, ROCKER PANEL, FRONT RH

main75851-39035iLS110,MS11#,RS110..SED..(DLX,ROY,SAL)197909-198307

W/ARCH MOULDING

75851DCLIP(FOR ROCKER PANEL MOULDING SET)

main75867-30020iLS110,MS11#,RS110..DLX,ROY,SAL197909-198307

75852MOULDING, ROCKER PANEL, LH

main75850-39035iLS110,MS11#,RS110..DLX197909-198307

75852AMOULDING, ROCKER PANEL, FRONT LH

main75852-39035iLS110,MS11#,RS110..SED..(DLX,ROY,SAL)197909-198307

W/ARCH MOULDING

75853AMOULDING, ROCKER PANEL, CENTER RH

main75853-39035iLS110,MS11#,RS110..SED..(DLX,ROY,SAL)197909-198307

W/ARCH MOULDING

75854AMOULDING, ROCKER PANEL, CENTER LH

main75853-39035iLS110,MS11#,RS110..SED..(DLX,ROY,SAL)197909-198307

W/ARCH MOULDING

75855AMOULDING, ROCKER PANEL, REAR RH

main75855-39025iLS110,MS11#,RS110..SED..(DLX,ROY,SAL)197909-198307

W/ARCH MOULDING

75856AMOULDING, ROCKER PANEL, REAR LH

main75856-39025iLS110,MS11#,RS110..SED..(DLX,ROY,SAL)197909-198307

W/ARCH MOULDING

75871MOULDING, FRONT FENDER WHEEL OPENING, RH

main75871-39045iLS110,MS11#,RS110..SED..(DLX,ROY,SAL)197909-198307

75872MOULDING, FRONT FENDER WHEEL OPENING, LH

main75872-39045iLS110,MS11#,RS110..SED..(DLX,ROY,SAL)197909-198307

75873MOULDING, QUARTER PANEL WHEEL OPENING, RH

main75873-39045iLS110,MS11#,RS110..SED..(DLX,ROY,SAL)197909-198307

75874MOULDING, QUARTER PANEL WHEEL OPENING, LH

main75874-39045iLS110,MS11#,RS110..SED..(DLX,ROY,SAL)197909-198307

75951PLATE, FRONT DOOR SCUFF, OUTSIDE RH

main67913-30130-02iLS110,MS11#,RS110197909-198108

DARK WINE,RED/MAROON,TRIM3#

main67913-30130-03iLS110,MS112,RS110198108-198307

GRAY,GRAY,TRIM1#

main67913-30130-04iLS110,MS11#,RS110197909-198307

BLUE,BLUE,TRIM8#

main67913-30130-05iLS110,MS11#,RS110197909-198108

GREIGE,BEIGE,TRIM4#

main67913-30130-15iLS110,MS112,RS110198108-198307

BEIGE,BEIGE,TRIM4#

75952PLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67914-30140-02iLS110,MS11#,RS110197909-198108

DARK WINE,RED/MAROON,TRIM3#

main67914-30140-03iLS110,MS112,RS110198108-198307

GRAY,GRAY,TRIM1#

main67914-30140-04iLS110,MS112,RS110197909-198307

BLUE,BLUE,TRIM8#

main67914-30140-05iLS110,MS11#,RS110197909-198108

GREIGE,BEIGE,TRIM4#

main67914-30140-15iLS110,MS112,RS110198108-198307

BEIGE,BEIGE,TRIM4#

75955PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67917-30080-02iLS110,MS11#,RS110197909-198108

DARK WINE,RED/MAROON,TRIM3#

main67917-30080-03iLS110,MS112,RS110198108-198307

GRAY,GRAY,TRIM1#

main67917-30080-04iLS110,MS11#,RS110197909-198307

BLUE,BLUE,TRIM8#

main67917-30080-05iLS110,MS11#,RS110197909-198108

GREIGE,BEIGE,TRIM4#

main67917-30080-15iLS110,MS112,RS110198108-198307

BEIGE,BEIGE,TRIM4#

75956PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67918-30080-02iLS110,MS11#,RS110197909-198108

DARK WINE,RED/MAROON,TRIM3#

main67918-30080-03iLS110,MS112,RS110198108-198307

GRAY,GRAY,TRIM1#

main67918-30080-04iLS110,MS11#,RS110197909-198307

BLUE,BLUE,TRIM8#

main67918-30080-05iLS110,MS11#,RS110197909-198108

GREIGE,BEIGE,TRIM4#

main67918-30080-15iLS110,MS112,RS110198108-198307

BEIGE,BEIGE,TRIM4#

9016440034

main90164-40034

9016745002

main90167-45002

9017905095

main90179-05095

9018904022

main90189-04022

9018905012

main90189-05012

9354054008

main93540-54008

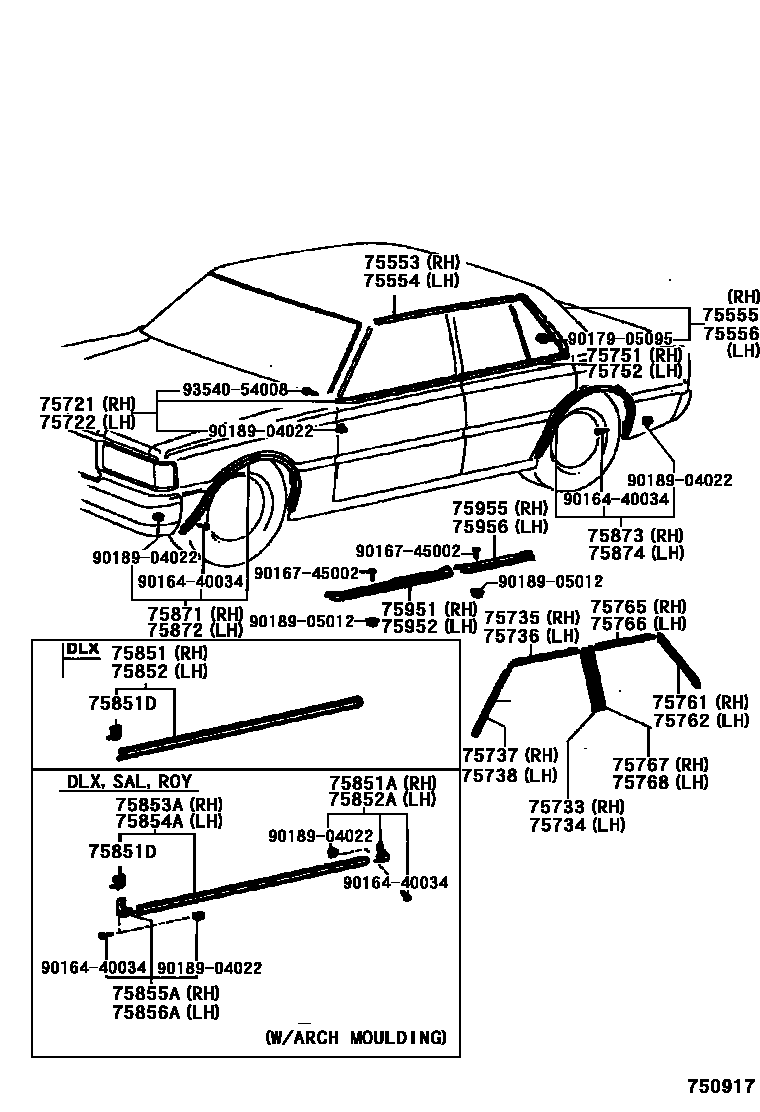

43 parts on this diagram · 5 diagrams in section
