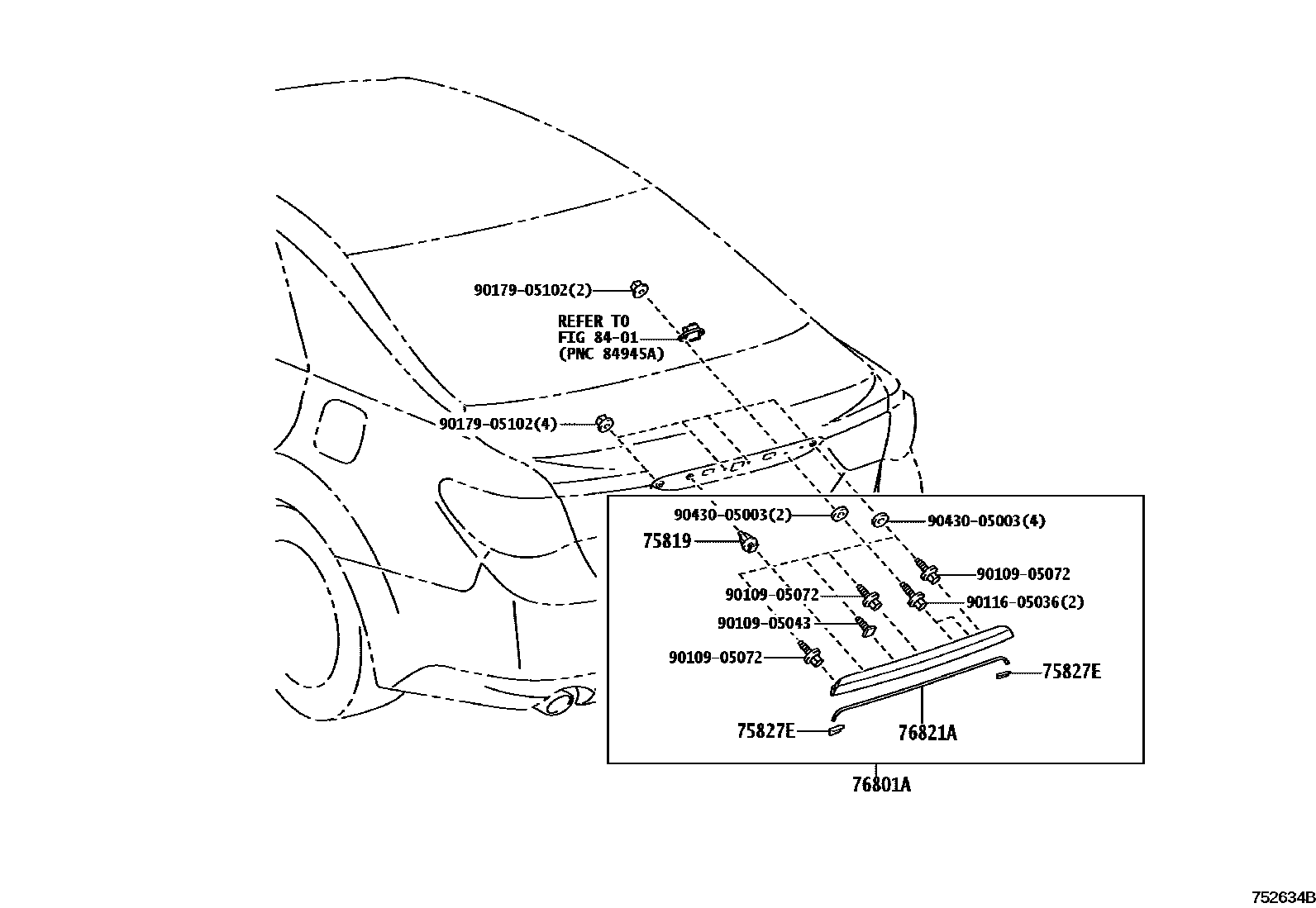

REAR MOULDING

75819CLIP, LUGGAGE COMPARTMENT DOOR MOULDING

main75819-33010iGRX130201112-201208

75827EPROTECTOR, LUGGAGE DOOR MOULDING

main76823-22020×2iGRX130201112-201208

76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE

main76801-22150iGRX130201112-201208

76821APROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH

main76821-22050iGRX130201112-201208

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010905043

main90109-05043

9010905072

main90109-05072

9011605036

main90116-05036

9017905102

main90179-05102

9043005003

main90430-05003

10 parts on this diagram · 1 diagram in section
