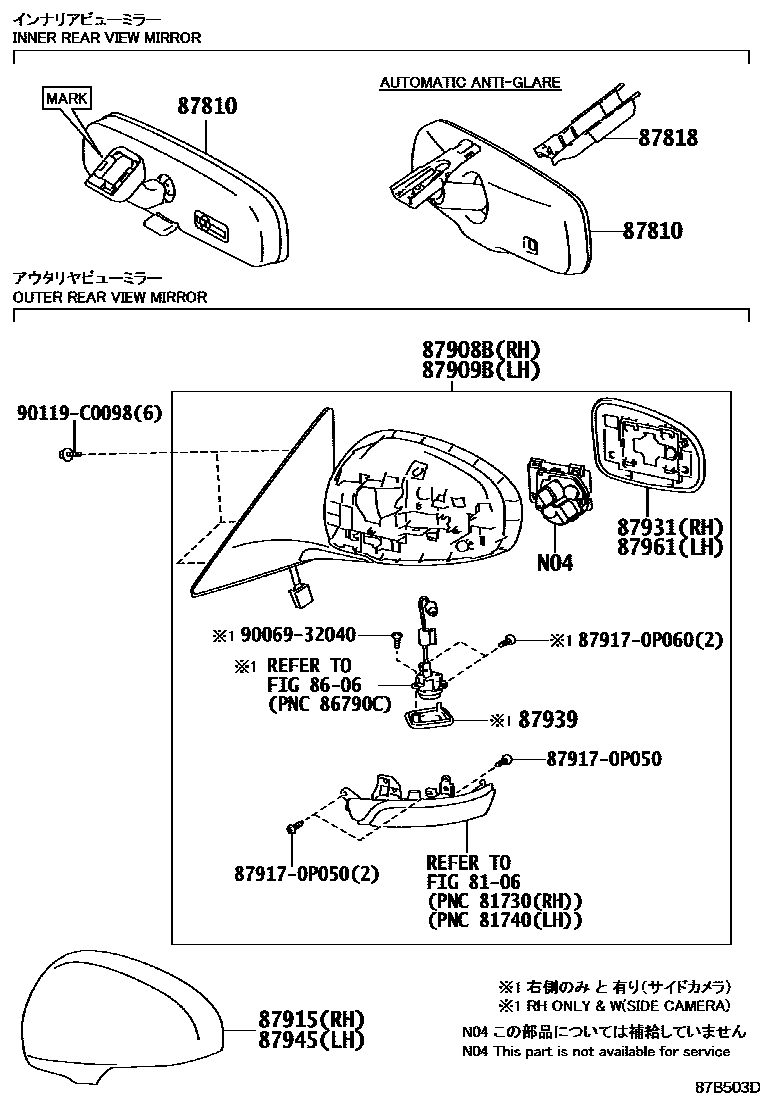

MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
8606CAMERA & REAR MONITOR DISPLAY
87810MIRROR ASSY, INNER REAR VIEW
MARK A076976
MARK A047171
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL); SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM); SPORT & WITH(*MR&*NS); SPORT & WITH(*MR)
87818COVER, INNER RR VIEW MIRROR
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL); SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM); SPORT & WITH(*MR&*NS); SPORT & WITH(*MR)
87908BMIRROR SUB-ASSY, RH
SPORT & W(*MR & *NS)
SPORT & WITH(*MR)
SPORT & W(*MR); WITH(*MR & *NS); WITH(*MR)
SPORT & W(*MR); WITH(*MR & *NS); WITH(*MR)
87909BMIRROR SUB-ASSY, LH
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL); SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM); SPORT & WITH(*MR&*NS); SPORT & WITH(*MR); WITH(*MR&*NS)
SPORT & W(*MR & *NS); SPORT & W(*MR); WITH(*MR & *NS); WITH(*MR)
87915COVER, OUTER MIRROR, RH
PAINT REQ.
87931OUTER MIRROR, RH
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL); SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM); SPORT & WITH(*MR&*NS); SPORT & WITH(*MR); WITH(*MR&*NS)
87939COVER, OUTER MIRROR HOLE, RH
87945COVER, OUTER MIRROR, LH
PAINT REQ.
87961MIRROR OUTER, LH
SPORT & W(*MR & *NS); SPORT & W(*MR); WITH(*MR & *NS); WITH(*MR)
879170P050ESCUTCHEON
main87917-0P050
879170P060ESCUTCHEON
main87917-0P060
9006932040
main90069-32040
90119C0098
main90119-C0098
15 parts on this diagram · 1 diagram in section
