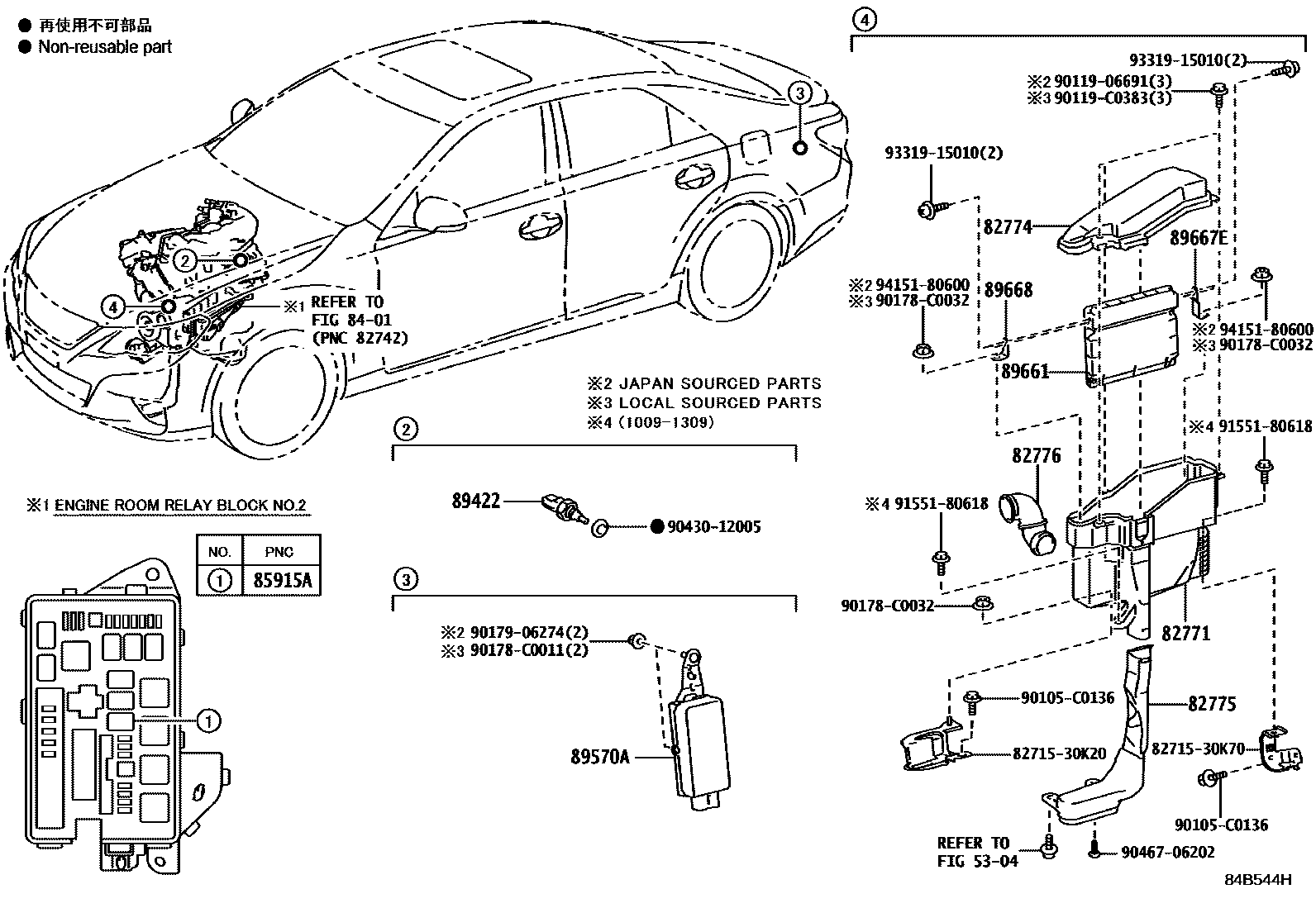

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

82771BOX, ENGINE ROOM ECU

main82771-30060iGRX13#201009-201309

82774COVER, ENGINE ROOM ECU

main82774-22010iGRX13#201009-201309

82775DUCT, ENGINE ROOM ECU INLET

main82775-0P020iGRX13#201009-201309

82776DUCT, ENGINE ROOM ECU OUTLET

main82776-0P020iGRX13#201009-201309

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85915ARELAY, MAIN

main90987-T2005iGRX13#201009-201309

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-0D010iGRX13#201009-201309

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-22210iGRX13#201009-201309

89661COMPUTER, ENGINE CONTROL

main89661-0P090iGRX131201009-201309

main89661-0P100iGRX132201009-201309

main89661-0P110iGRX131201309-201609

main89661-0P120iGRX132201309

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-30300iGRX13#201009-201309

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-30280iGRX13#201009-201309

8271530K20BRACKET,WIRING HARNESS CLAMP

main82715-30K20

8271530K70BRACKET,WIRING HARNESS CLAMP

main82715-30K70

90105C0136

main90105-C0136

9011906691

main90119-06691

90119C0383

main90119-C0383

90178C0011

main90178-C0011

90178C0032

main90178-C0032

9017906274

main90179-06274

9043012005

main90430-12005

9046706202

main90467-06202

9155180618

main91551-80618

9331915010

main93319-15010

9415180600

main94151-80600

25 parts on this diagram · 2 diagrams in section
