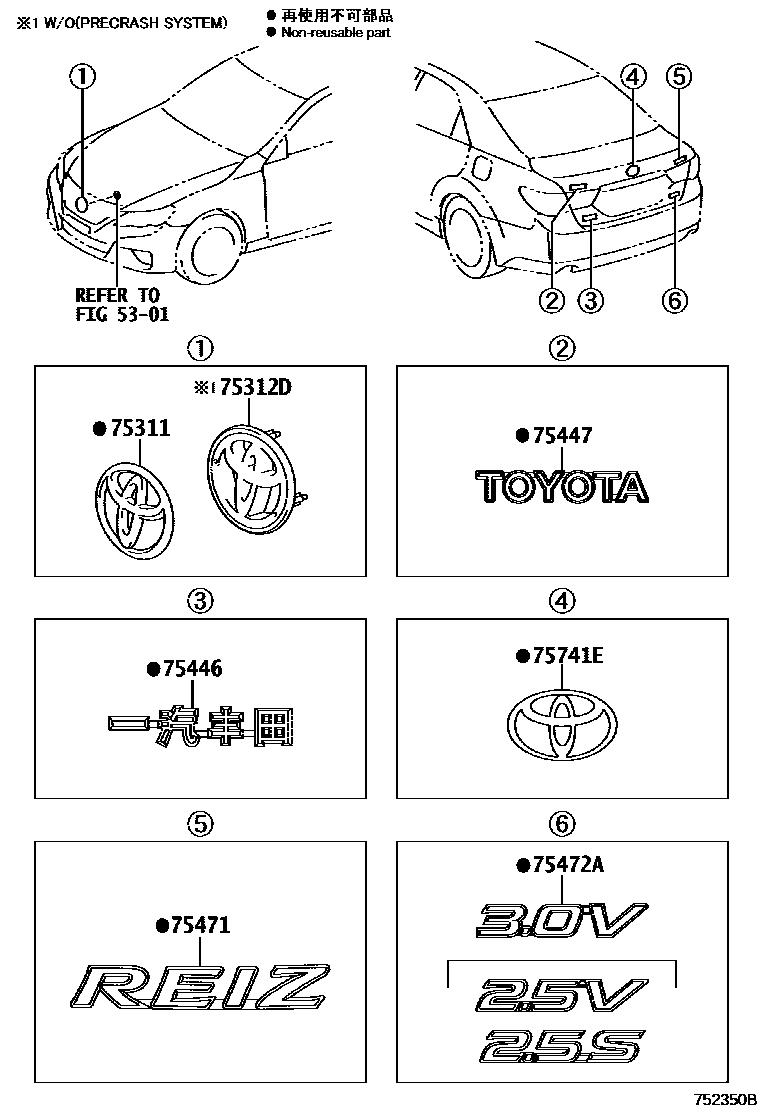

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

5301RADIATOR GRILLE

→ Go to FIG 53-01

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main53141-30120iGRX131201309-201609

main90975-C2003iGRX132201009-201309

75312DBASE, RADIATOR GRILLE EMBLEM

main53141-0P010iGRX132201009-201309

75446PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.6

main75441-02240iGRX13#201009-201309

75447PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.7

main75441-0P020iGRX13#201009-201309

75471PLATE, REAR BODY NAME, NO.1(MODEL MARK)

main75471-0P020iGRX13#201009-201309

REIZ

75472APLATE, REAR BODY NAME, NO.2

main75472-0P060iGRX131201009-201309

3.0V

main75472-0P070iGRX132..25S201309

2.5V

main75472-0P080iGRX132..30V201009-201309

2.5S

75741EEMBLEM, SYMBOL

main90975-C2002iGRX13#201309

8 parts on this diagram · 1 diagram in section
