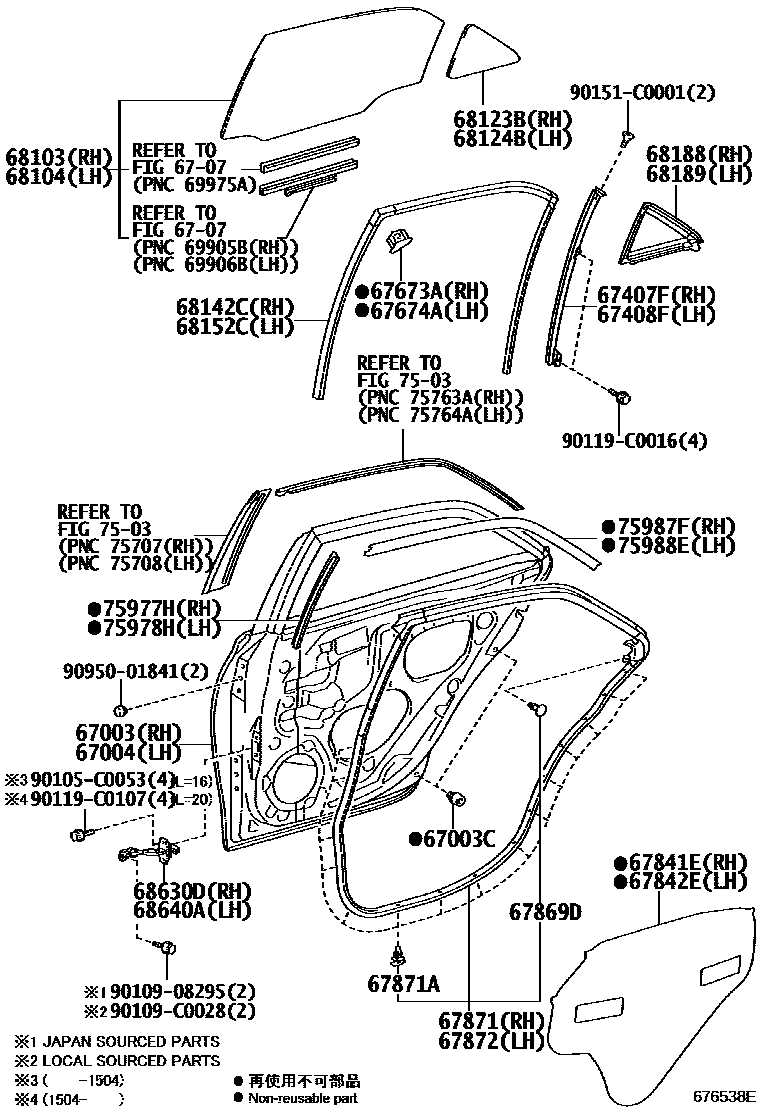

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67003CCUSHION, REAR DOOR PANEL
67004PANEL SUB-ASSY, REAR DOOR, LH
6707REAR DOOR WINDOW REGULATOR & HINGE
67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH
67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH
67673AGARNISH, REAR DOOR FRAME, RH
67674AGARNISH, REAR DOOR FRAME, LH
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67869DCLIP, DOOR WEATHERSTRIP
67871WEATHERSTRIP, REAR DOOR, RH
67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*UVCT,T=4.0,C.GREEN
68104GLASS SUB-ASSY, REAR DOOR, LH
*UVCT,T=4.0,C.GREEN; *UVCT,T=4.0,C.GREEN,SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL); *UVCT,T=4.0,C.GREEN,SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM); *UVCT,T=4.0,C.GREEN,SPORT & WITH(*MR&*NS); *UVCT,T=4.0,C.GREEN,SPORT & WITH(*MR)
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
*UVCT,T=4.0,C.GREEN; *UVCT,T=4.0,C.GREEN,SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL); *UVCT,T=4.0,C.GREEN,SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM); *UVCT,T=4.0,C.GREEN,SPORT & WITH(*MR&*NS); *UVCT,T=4.0,C.GREEN,SPORT & WITH(*MR)
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
*UVCT,T=4.0,C.GREEN; *UVCT,T=4.0,C.GREEN,SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL); *UVCT,T=4.0,C.GREEN,SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM); *UVCT,T=4.0,C.GREEN,SPORT & WITH(*MR&*NS); *UVCT,T=4.0,C.GREEN,SPORT & WITH(*MR)
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
7503SIDE MOULDING
75977HSTRIPE, REAR DOOR OUTSIDE, LOWER RH
75978HSTRIPE, REAR DOOR OUTSIDE, LOWER LH
75987FSTRIPE, REAR DOOR, OUTSIDE, RH
75988ESTRIPE, REAR DOOR, OUTSIDE LH
90105C0053
main90105-C0053
9010908295
main90109-08295
90109C0028
main90109-C0028
90119C0016
main90119-C0016
90119C0107
main90119-C0107
90151C0001
main90151-C0001
9095001841
main90950-01841
36 parts on this diagram · 2 diagrams in section
