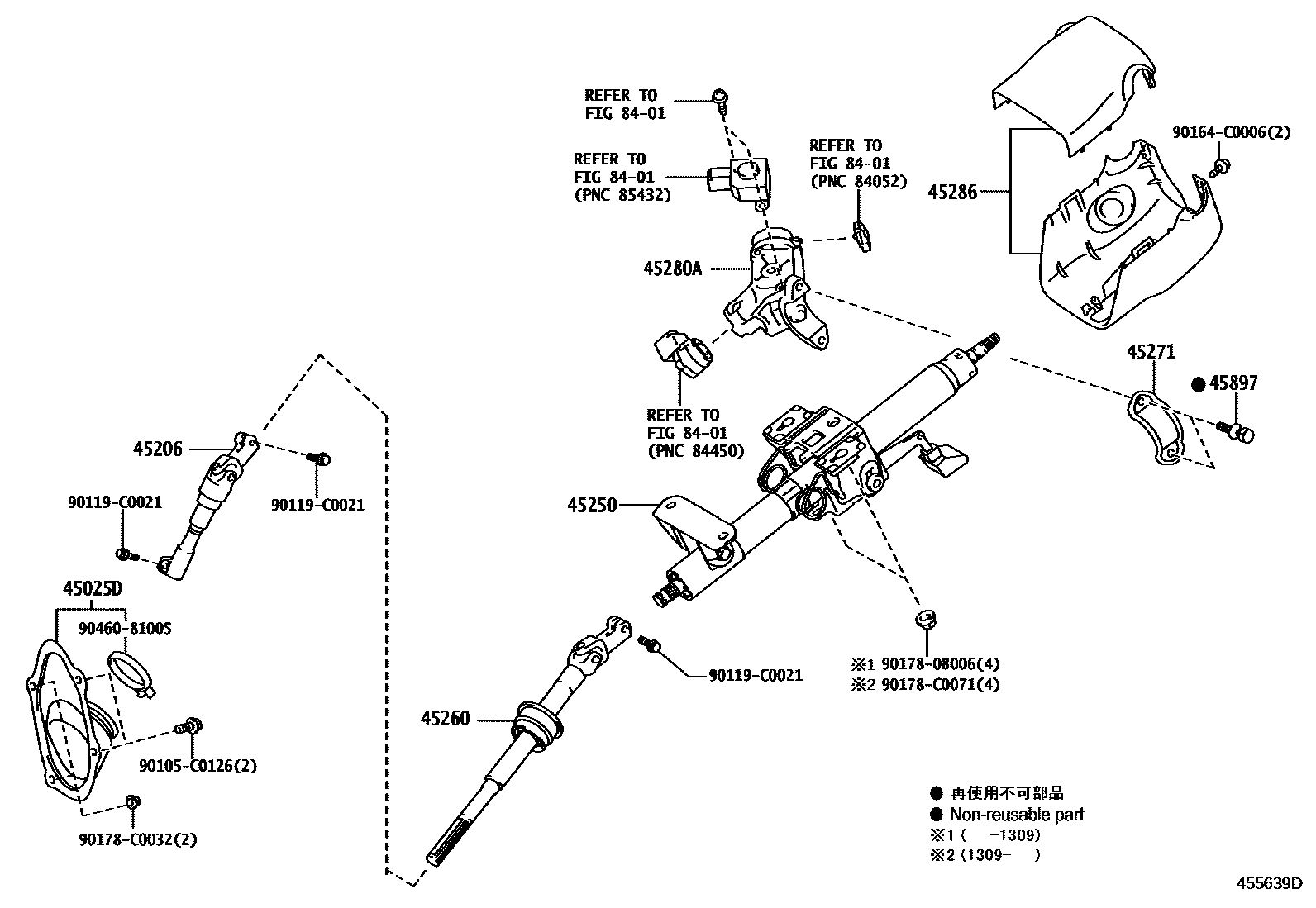

STEERING COLUMN & SHAFT

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-0P010i201309

main45025-30380i201309-201609

main45025-0N010i201309

SPORT & W(*MR & *NS); SPORT & W(*MR)

45206YOKE SUB-ASSY, STEERING SLIDING W/SHAFT

main45206-0N020i201009-201205

main45206-0N021i201205-201309

45250COLUMN ASSY, STEERING

main45250-0N030i201009-201309

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL); SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM); SPORT & WITH(*MR&*NS); SPORT & WITH(*MR)

main45250-0P030i201009-201107

main45250-0P031i201108-201309

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-0N020i201309

45271CLAMP, STEERING COLUMN, UPPER

main45271-52030i201309

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-0P011i201009-201309

45286COVER, STEERING COLUMN

main45286-0P903-C0i201009-201309

BLACK,TRIM0#,2#; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),BLACK,TRIM0#,2#; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),BLACK,TRIM0#,2#; SPORT & WITH(*MR&*NS),BLACK,TRIM0#,2#; SPORT & WITH(*MR),BLACK,TRIM0#,2#

main45286-0P904-C0i201009-201309

BLACK,TRIM0#,2#

45897BOLT, STEERING LOCK SET

main45897-12020×2i201009-201309

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90105C0126

main90105-C0126

90119C0021

main90119-C0021

90164C0006

main90164-C0006

9017808006

main90178-08006

90178C0032

main90178-C0032

90178C0071

main90178-C0071

9046081005

main90460-81005

16 parts on this diagram · 2 diagrams in section
