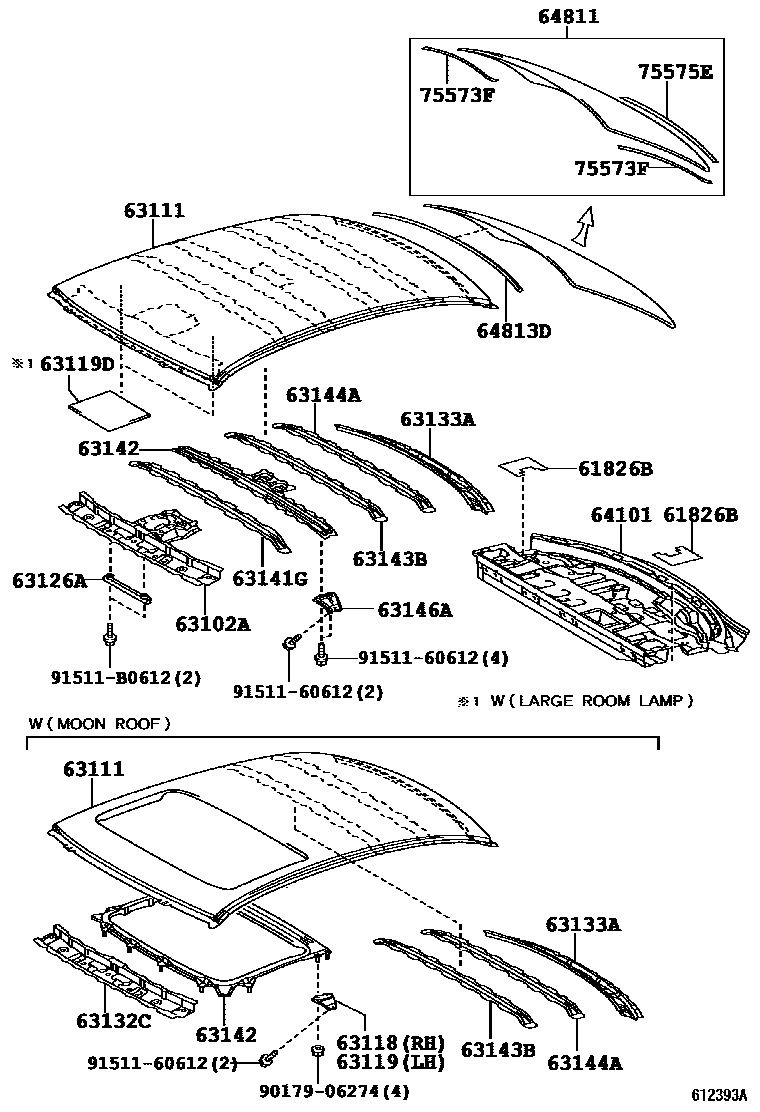

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1W(MOON ROOF)

61826BPLATE, NOISE CONTROL, NO.3

main61826-0P010×2iGRX12#200510-200710

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-0P901iGRX12#..25V,30V; GRX122..25200510-200710

ROOM LAMP-LARGE ILLUMINATED

63111PANEL, ROOF

main63111-0P010iGRX122..25; GRX122..25V200710

ROOM LAMP-LARGE ILLUMINATED

main63111-0P020supersedes 63111-0P010iGRX122..25200905

2.5S SPECIAL MOON ROOF & AVX VERSION; 2.5S SPECIAL MOON ROOF VERSION

63118SUPPORT, ROOF PANEL, RH

main63118-0P010iGRX12#..25V,30V200510-200710

63119SUPPORT, ROOF PANEL, LH

main63118-0P010iGRX12#..25V,30V200510-200710

63119DPAD, ROOF PANEL, NO.1

main63119-0P010×2iGRX12#..25V,30V; GRX122..25200510-200710

ROOM LAMP-LARGE ILLUMINATED

63126ADAMPER, WINDSHIELD HEADER PANEL

main63126-0P010iGRX12#200510-200710

63132CPANEL, WINDSHIELD HEADER, INNER

main63132-0P010iGRX12#..25V,30V200510-200710

63133AFRAME, BACK WINDOW, UPPER

main63133-0P010iGRX12#200510-200710

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63143-22180iGRX12#..25V,30V; GRX122..25200510-200710

ROOM LAMP-LARGE ILLUMINATED

63142REINFORCEMENT, ROOF PANEL, NO.2

main63103-0P010supersedes 63142-0N902iGRX12#..25V,30V; GRX122..25200510-200710

ROOM LAMP-LARGE ILLUMINATED

main63142-0N902supersedes 63103-0P010iGRX122..25200905

2.5S SPECIAL MOON ROOF & AVX VERSION; 2.5S SPECIAL MOON ROOF VERSION

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63144-22160iGRX122..25; GRX122..25V200710

ROOM LAMP-LARGE ILLUMINATED

main63148-0P010supersedes 63144-22160iGRX122..25200905

2.5S SPECIAL MOON ROOF & AVX VERSION; 2.5S SPECIAL MOON ROOF VERSION

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63128-0P010iGRX12#200510-200710

63146ABRACKET, ROOF PANEL REINFORCEMENT, NO.1

main63146-0P010×2iGRX12#..25V,30V; GRX122..25200510-200710

ROOM LAMP-LARGE ILLUMINATED

64101PANEL SUB-ASSY, UPPER BACK

main64101-0P010iGRX12#200710

64811GLASS, BACK WINDOW

main64801-0P010iGRX122200710

*UVCEHT,T=3.5,GREEN

main64801-0P020supersedes 64801-0P010iGRX12#..25V,30V; GRX122..25200510-200710

*UVCEHT,T3.5,C.GREEN; *UVCEHT,T3.5,C.GREEN,2.5S SPECIAL VERSION

64813DDAM, BACK WINDOW GLASS ADHESIVE

main64813-0P010iGRX12#200510-200710

75573FMOULDING, BACK WINDOW, OUTSIDE

main75573-0P010×2iGRX12#200510-200710

75575EMOULDING, BACK WINDOW, OUTSIDE LOWER

main75575-0P010iGRX12#200510-200710

9017906274

main90179-06274

9151160612

main91511-60612

91511B0612

main91511-B0612

22 parts on this diagram · 2 diagrams in section
