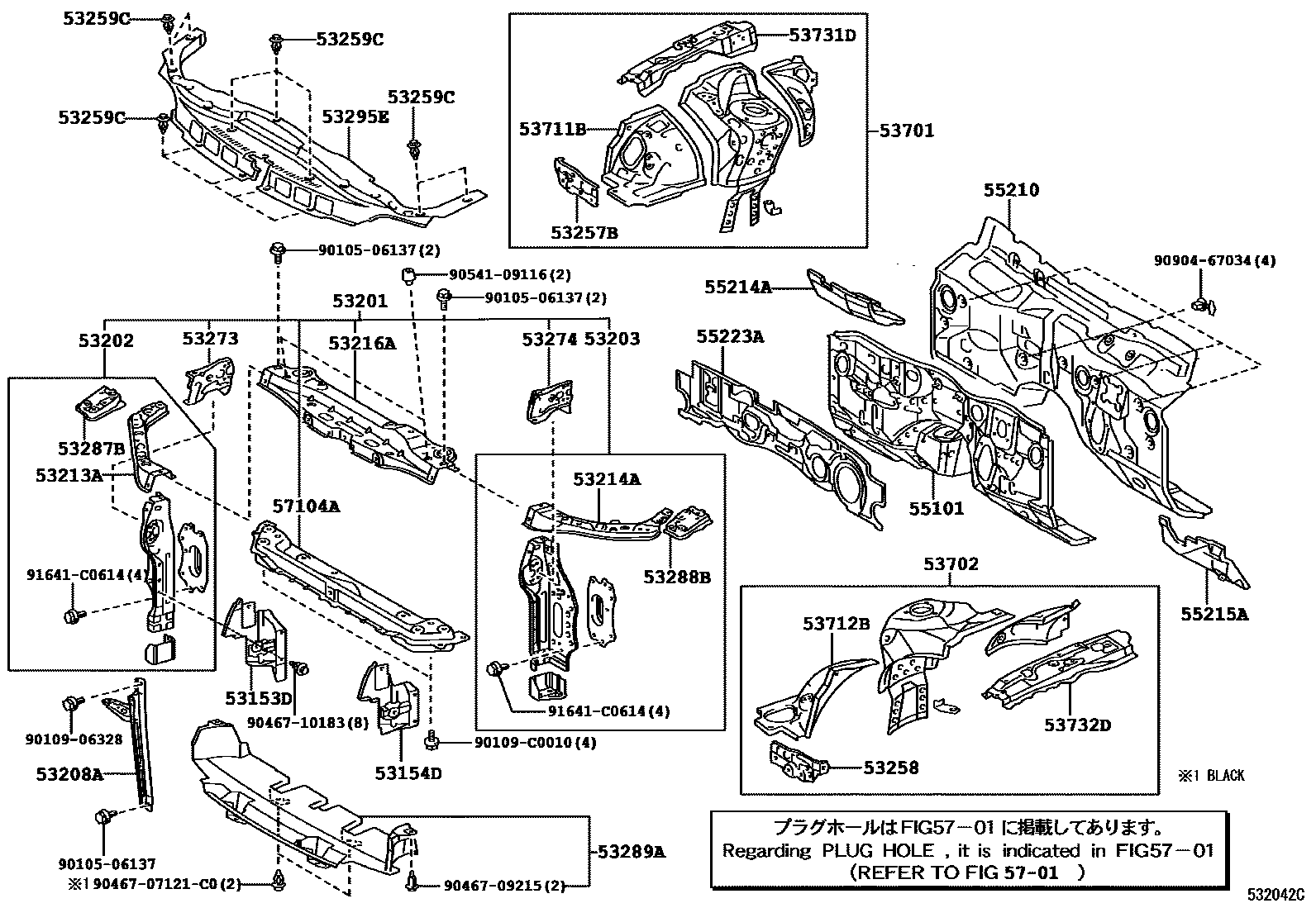

FRONT FENDER APRON & DASH PANEL
53153DGUIDE, RADIATOR GRILLE SIDE AIR, RH
53154DGUIDE, RADIATOR GRILLE SIDE AIR, LH
53201SUPPORT SUB-ASSY, RADIATOR
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53208ASUPPORT SUB-ASSY, HOOD LOCK
53213ASUPPORT, RADIATOR, UPPER RH
53214ASUPPORT, RADIATOR, UPPER LH
53216ASUPPORT, RADIATOR, UPPER
53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER
53258BRACKET, FRONT END PANEL MOUNTING, LH
53259CCLIP, RADIATOR SUPPORT TO FRAME SEAL
53273BRACKET, FRONT BUMPER ARM MOUNTING, RH
53274BRACKET, FRONT BUMPER ARM MOUNTING, LH
53287BEXTENSION, RADIATOR SUPPORT, RH
53288BEXTENSION, RADIATOR SUPPORT, LH
53289ACOVER, RADIATOR SUPPORT OPENING
53295ESEAL, COOL AIR INTAKE DUCT
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
55101PANEL SUB-ASSY, DASH
55210INSULATOR ASSY, DASH PANEL
55214APAD, DASH PANEL INSULATOR, NO.2
55215APAD, DASH PANEL INSULATOR, NO.3
55223AINSULATOR, DASH PANEL, OUTER
5701HOLE PLUG
57104AMEMBER SUB-ASSY, FRONT CROSS
9010506137
main90105-06137
9010906328
main90109-06328
90109C0010
main90109-C0010
9046707121C0
main90467-07121C0
9046709215
main90467-09215
9046710183
main90467-10183
9054109116
main90541-09116
9090467034
main90904-67034
91641C0614
main91641-C0614
40 parts on this diagram · 1 diagram in section
