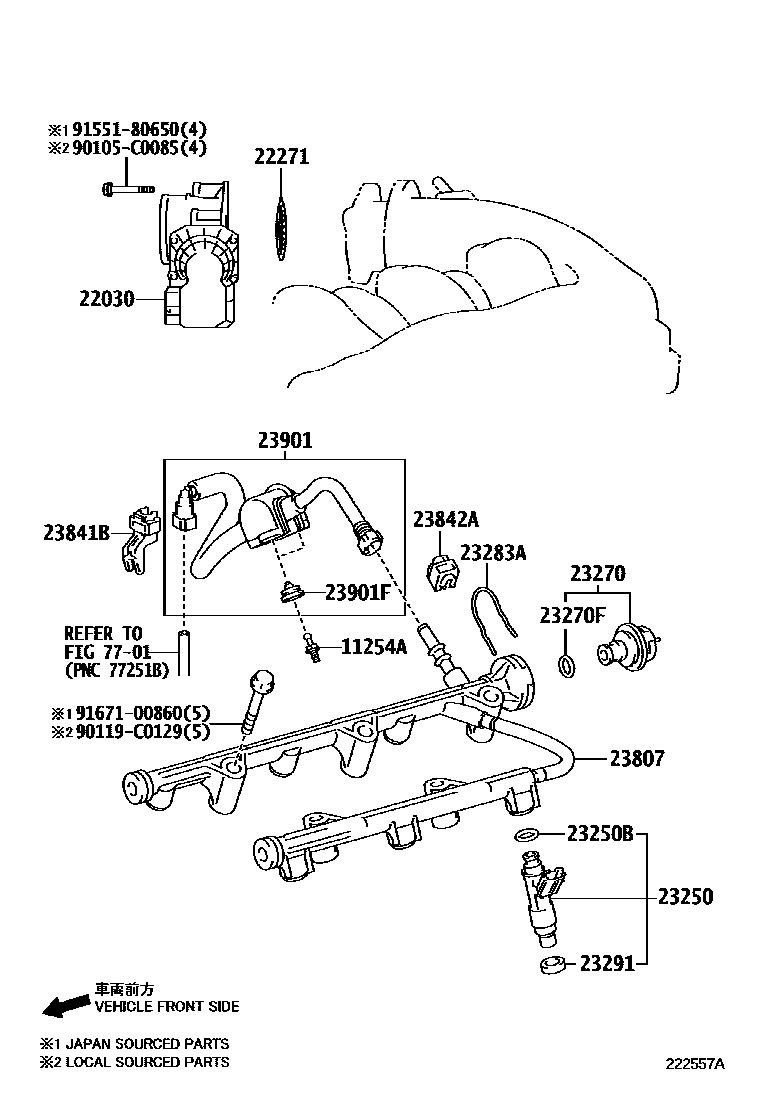

FUEL INJECTION SYSTEM

11254ABRACKET, V-BANK COVER

main11254-31020×2i3GRFE,5GRFE..GRX12#200710

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0P040i3GRFE,5GRFE..GRX12#200510-200710

22271GASKET, THROTTLE BODY

main22271-31030i3GRFE,5GRFE..GRX12#200510-200710

23250INJECTOR ASSY, FUEL

main23209-0P050×6i3GRFE,5GRFE..GRX12#200510-200710

23250BRING, O(FOR FUEL INJECTOR)

main90301-07033×6i3GRFE,5GRFE..GRX12#200510-200710

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-31010i3GRFE,5GRFE..GRX12#200510-200710

main23270-31080i3GRFE,5GRFE..GRX12#200908

23270FRING, O(FOR PULSATION DAMPER)

main90301-07033i3GRFE,5GRFE..GRX12#200710

23283AHOLDER, FUEL PRESSURE REGULATOR

main23283-31010i3GRFE,5GRFE..GRX12#200510-200710

23291INSULATOR, INJECTOR VIBRATION

main23291-0P020×6i3GRFE,5GRFE..GRX12#200804

(L)

main23291-23010×6i3GRFE,5GRFE..GRX12#200510-200710

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-31030i3GRFE,5GRFE..GRX12#200710

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i3GRFE,5GRFE..GRX12#200706-200710

main23841-28010i3GRFE,5GRFE..GRX12#200510-200705

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-31020i3GRFE,5GRFE..GRX12#200710

23901TUBE SUB-ASSY, FUEL

main23901-31130i3GRFE,5GRFE..GRX12#200510-200603

main23901-31131i3GRFE,5GRFE..GRX12#200603-200710

23901FGROMMET(FOR FUEL TUBE)

main90480-22024×2i3GRFE,5GRFE..GRX12#200510-200710

7701FUEL TANK & TUBE

→ Go to FIG 77-01

90105C0085

main90105-C0085

90119C0129

main90119-C0129

9155180650

main91551-80650

9167100860

main91671-00860

19 parts on this diagram · 1 diagram in section
