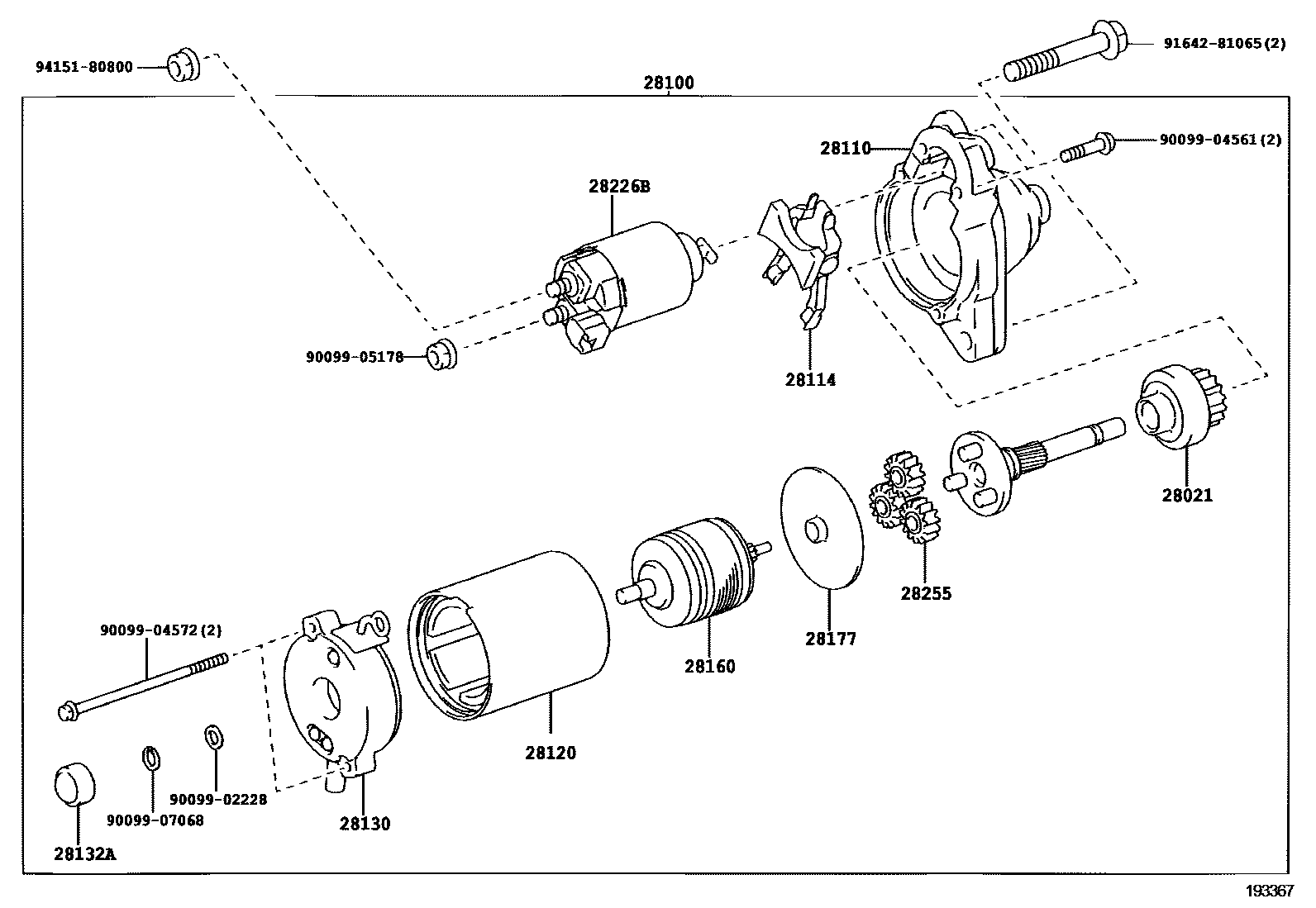

STARTER

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-21060i3GRFE,5GRFE..GRX12#200710

28100STARTER ASSY

main28100-0P010i3GRFE,5GRFE..GRX12#200510-200710

12V 1.7KW

main28100-0P011i3GRFE,5GRFE..GRX12#200912

12V 1.7KW

28110HOUSING ASSY, STARTER DRIVE

main28110-31040i3GRFE,5GRFE..GRX12#200510-200710

28114PIN, STARTER DRIVE LEVER SET

main28114-21060i3GRFE,5GRFE..GRX12#200510-200710

28120YOKE ASSY, STARTER

main28120-0H120i3GRFE,5GRFE..GRX12#200807

main28120-28040i3GRFE,5GRFE..GRX12#200510-200710

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-0P010i3GRFE,5GRFE..GRX12#200807

main28130-31070i3GRFE,5GRFE..GRX12#200510-200710

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-28040i3GRFE,5GRFE..GRX12#200510-200710

28160ARMATURE ASSY, STARTER

main28160-21060i3GRFE,5GRFE..GRX12#200510-200710

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i3GRFE,5GRFE..GRX12#200510-200710

28226BSTARTER KIT, REPAIR SERVICE

main28226-22061i3GRFE,5GRFE..GRX12#200510-200710

28255GEAR, PLANET

main28255-20020×3i3GRFE,5GRFE..GRX12#200510-200710

9009902228

main90099-02228

9009904561

main90099-04561

9009904572

main90099-04572

9009905178

main90099-05178

9009907068

main90099-07068

9164281065

main91642-81065

9415180800

main94151-80800

18 parts on this diagram · 1 diagram in section
