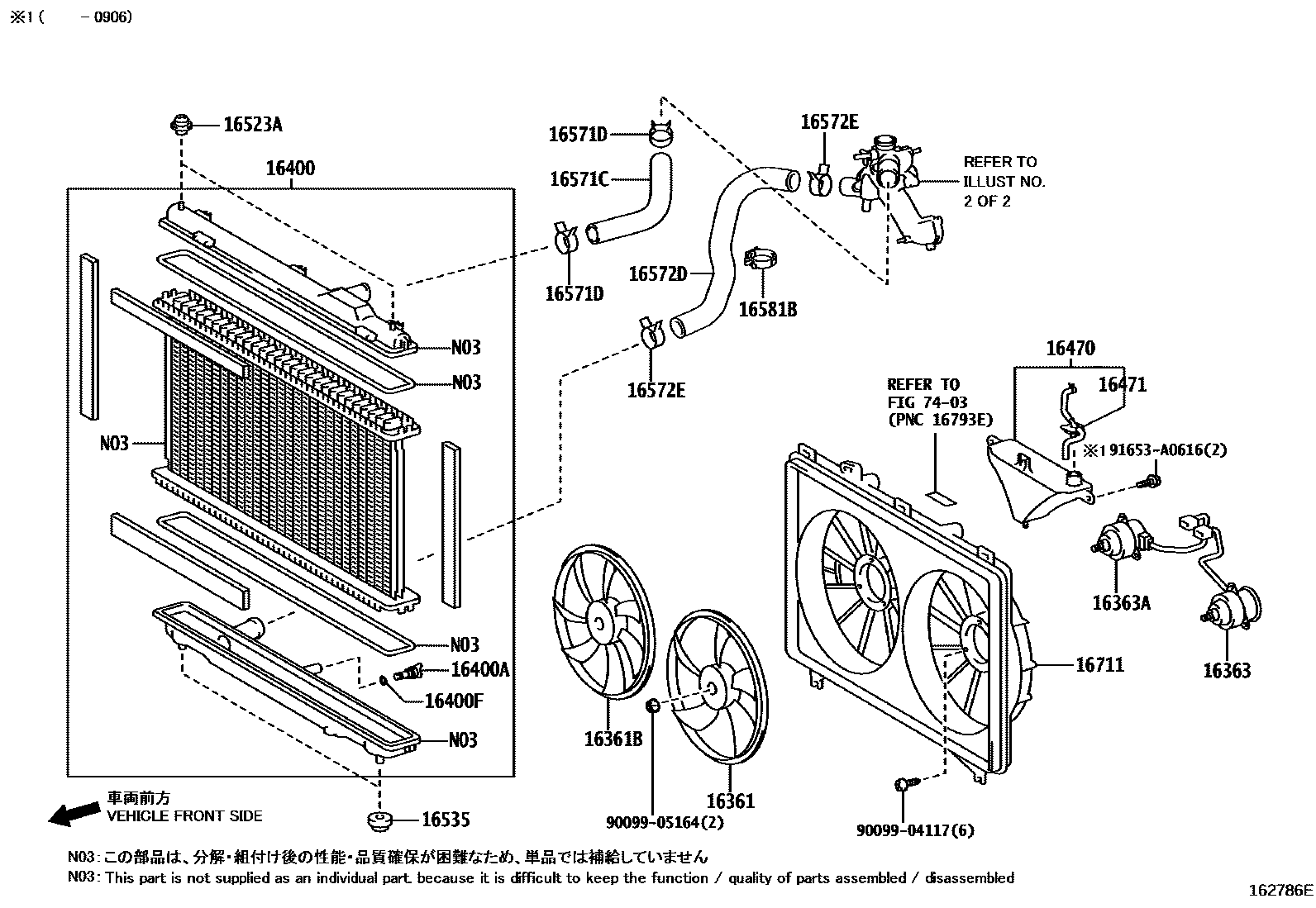

RADIATOR & WATER OUTLET

0001 1 0002 1

16361FAN

main16361-0P040200510-200710

16361BFAN, NO.2

main16361-0P050200510-200710

16363MOTOR, COOLING FAN

main16363-0P050200510-200710

16363AMOTOR, COOLING FAN, NO.2

main16363-0P040200510-200710

16400RADIATOR ASSY

main16400-0P100200510-200609

main16400-0P101200610-200710

16400ACOCK SUB-ASSY, RADIATOR DRAIN

main16417-0H290200703-200710

main16417-21280200510-200702

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050200510-200710

16470TANK ASSY, RADIATOR RESERVE

main16470-0P010200510-200710

16471CAP SUB-ASSY, RESERVE TANK

main16405-0P020200510-200710

16523ACUSHION, RADIATOR SUPPORT

main16523-0P010200510-200710

16535SUPPORT, RADIATOR, LOWER

main90480-T0007200510-200710

16571CHOSE, RADIATOR, NO.1

main16571-0P060200510-200512

main16571-0P150200710

main16571-31150200601-200710

16571DCLIP, RADIATOR HOSE, NO.1

main90466-41007200510-200909

main96136-44801200910

16572DHOSE, RADIATOR, NO.2

main16572-0P060200510-200512

main16572-0P160200710

main16572-31191200601-200710

16572ECLIP, RADIATOR HOSE, NO.2

main90466-41007200510-200909

main96136-44801200910

16581CLAMP, HOSE(FOR WATER HOSE)

main16581-31010200510-200710

16581BCLAMP, HOSE(FOR RADIATOR HOSE)

main16581-78100200510-200710

16711SHROUD, FAN

main16711-0P070200510-200710

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

9009904117

main90099-04117

9009905164

main90099-05164

91653A0616

main91653-A0616
