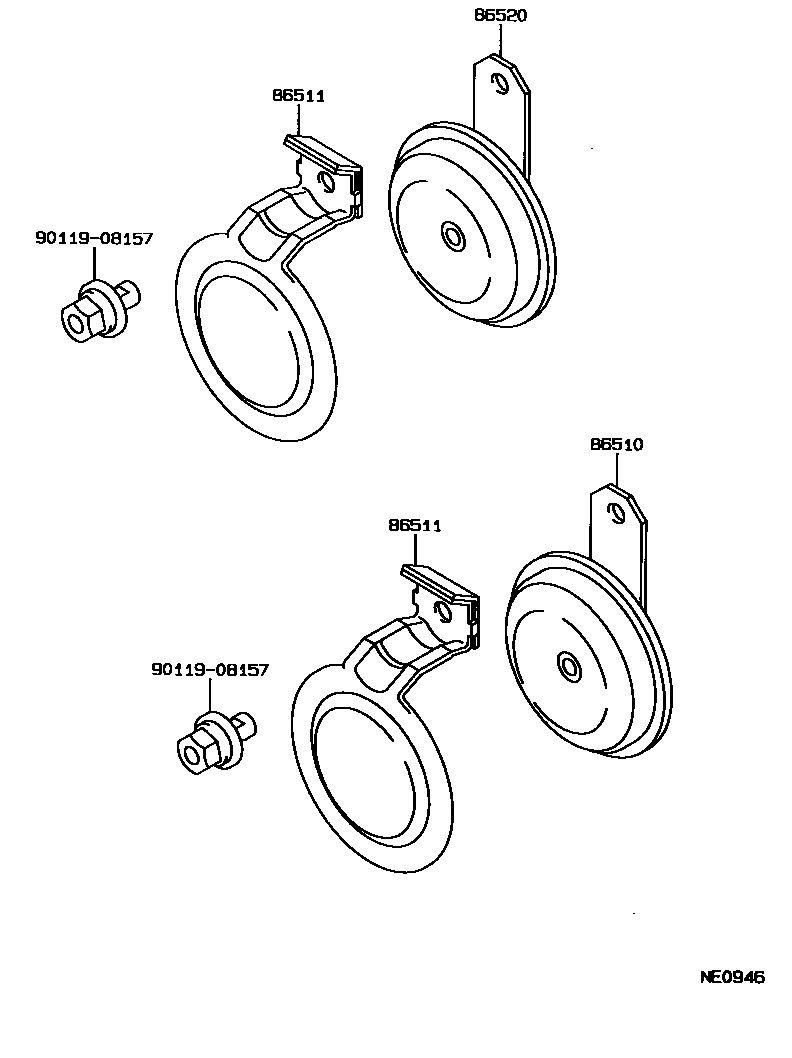

HORN

86510HORN ASSY, HIGH PITCHED

main86510-12270iMX83198808-199008

main86510-12480iLX80,RX80..LHD..GEN198808-199008

CHINA SPEC

main86510-20190iGX81,LX80,MX81,RX8#198808-199008

main86510-20230iGX81,LX80,MX81,RX8#199008-199608

main86510-22240iLX80,RX80..LHD199008-199302

CHINA SPEC

main86510-22250iMX83199008-199302

86511COVER, HIGH PITCHED HORN

main86511-12550×2iLX80,RX80..LHD..GEN198808-199302

86520HORN ASSY, LOW PITCHED

main86520-12220iMX83198808-199008

main86520-12670iGX81,LX80,MX81,RX8#198808-199008

main86520-12680iLX80,RX80..LHD..GEN198808-199008

CHINA SPEC

main86520-22220iLX80,RX80..LHD199008-199302

CHINA SPEC

main86520-22230iGX81,LX80,MX81,RX8#199008-199608

main86520-22240iMX83199008-199302

9011908157

main90119-08157

4 parts on this diagram · 1 diagram in section
