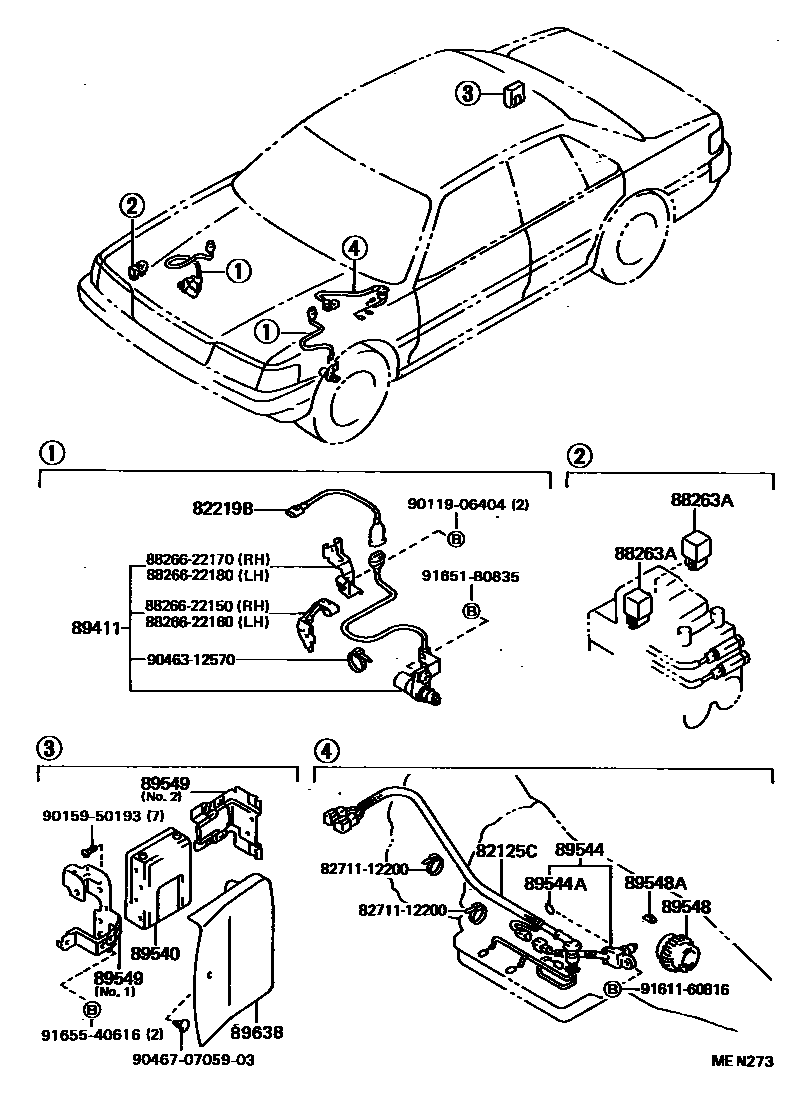

ABS & VSC
82125CWIRE, TRANSMISSION
82219BWIRE, SENSOR
LH
RH
GRAND PACKAGE,LH
GRAND PACKAGE,RH
88263ARELAY, SKID CONTROL
MOTOR RELAY
SOLENOID RELAY
89411SENSOR, SPEED
RH
GRAND PACKAGE,RH
LH
GRAND PACKAGE,LH
89540COMPUTER ASSY, SKID CONTROL
GRAND PACKAGE
89544SENSOR, SKID CONTROL
89544ARING, O (FOR SKID CONTROL SENSOR)
89548ROTOR, SKID CONTROL SENSOR
89548AKEY, WOODRUFF (FOR SKID CONTROL SENSOR ROTOR)
89549BRACKET, SKID CONTROL COMPUTER
NO.1
NO.2
89638COVER, BRAKE CONTROL COMPUTER
8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12200
8826622150CLAMP, AIR SUSPENSION SENSOR, NO.1
main88266-22150
8826622160CLAMP, AIR SUSPENSION SENSOR, NO.1
main88266-22160
8826622170CLAMP, AIR SUSPENSION SENSOR, NO.1
main88266-22170
8826622180CLAMP, AIR SUSPENSION SENSOR, NO.1
main88266-22180
9011906404
main90119-06404
9015950193
main90159-50193
9046312570
main90463-12570
904670705903
main90467-0705903
9161160816
main91611-60816
91651B0835
main91651-B0835
9165540616
main91655-40616
23 parts on this diagram · 1 diagram in section
