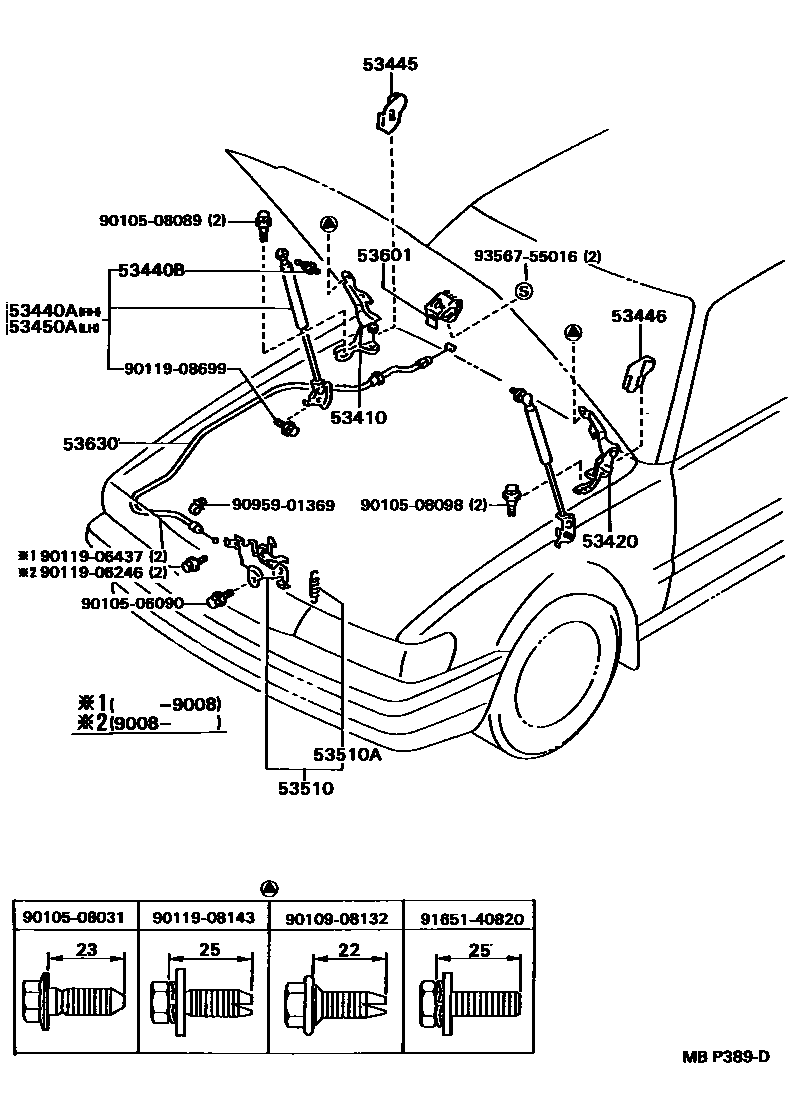

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-22080iGX81,LX80,MX8#,RX8#198808-199608

53420HINGE ASSY, HOOD, LH

main53420-22080iGX81,LX80,MX8#,RX8#198808-199608

53440ASUPPORT ASSY, HOOD, RH

main53440-29046iGX81,LX80,MX8#,RX8#198808-199608

53440BBOLT, HOOD SUPPORT, NO.1

main68961-22020×2iGX81,LX80,MX8#,RX8#198808-199608

53445COVER, HOOD HINGE, RH

main53445-22010iGX81,LX80,MX81,RX8#..LHD198808-199608

53446COVER, HOOD HINGE, LH

main53446-22010iGX81,MX83,RX80..RHD198808-199302

53450ASUPPORT ASSY, HOOD, LH

main53450-29046iGX81,LX80,MX8#,RX8#198808-199608

53510LOCK ASSY, HOOD

main53510-22290iGX81,MX83,RX80..RHD198808-199302

main53510-22300iGX81,LX80,MX81,RX8#..LHD198808-199608

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09029iGX81,LX80,MX8#,RX8#198808-199608

WD=0.9,CW=26.5,WD=0.9

main90506-18061iGX81,LX80,MX8#,RX8#198808-199608

WD=1.8,CW=18,CW=18,WD=1.8

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-10020-C0iRX81199409-199608

BLACK,TRIM3#

main53601-10020-D1iRX81199302-199409

NEW MAROON,TRIM3#

main53601-20060-10iGX81,LX80,MX8#,RX8#198808-199008

DARK BLUE,TRIM8#

main53601-20060-33iGX81,LX80,MX8#,RX8#199008-199302

MEDIUM GRAY,TRIM1#

main53601-20060-36iGX81,LX80,MX8#,RX8#198808-199302

SABLE,TRIM4#

main53601-20060-42iGX81,LX80,MX8#,RX8#198808-199302

NEW MAROON,TRIM3#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-22170iGX81,LX80,MX81,RX8#..LHD198808-199608

main53630-22210iGX81,MX83,RX80..RHD198808-199302

9010506090

main90105-06090

9010508031

main90105-08031

9010508089

main90105-08089

9010508098

main90105-08098

9010908132

main90109-08132

9011906246

main90119-06246

9011906437

main90119-06437

9011908143

main90119-08143

9011908699

main90119-08699

9095901369

main90959-01369

9165140820

main91651-40820

9356755016

main93567-55016

23 parts on this diagram · 1 diagram in section
