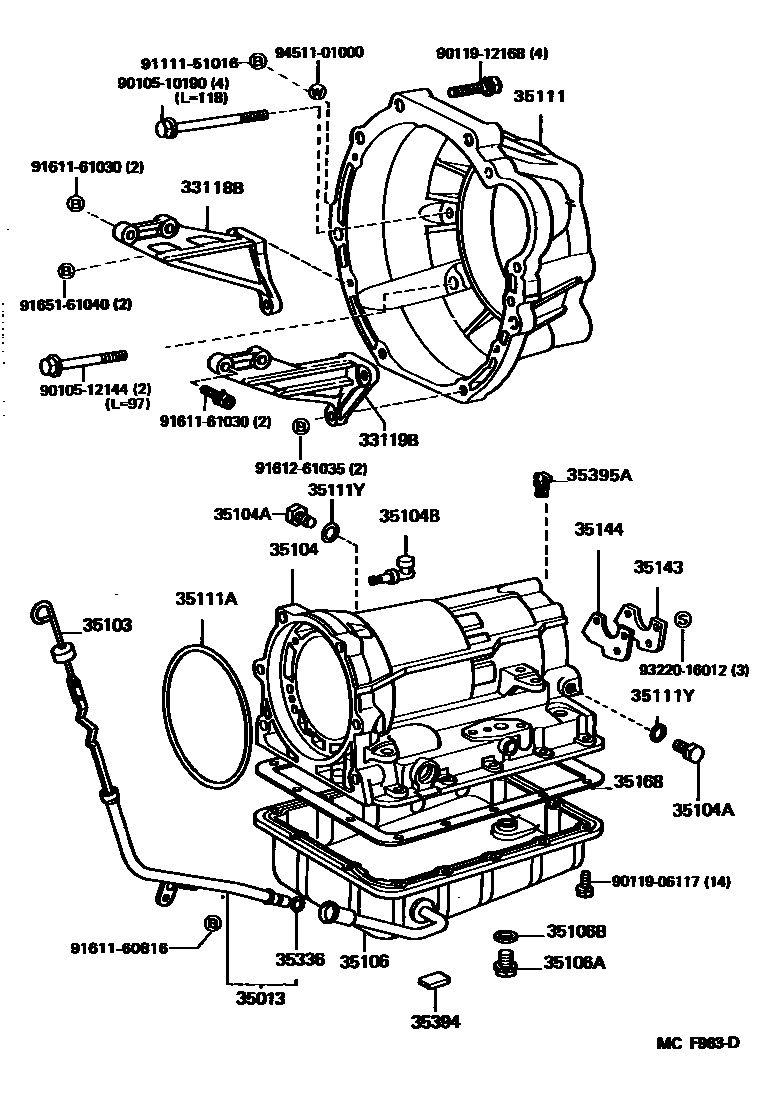

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A42DL 0002 1A42D 0003 1A43DL 0004 1A340E 0005 1A43D

33118BPLATE, STIFFENER, RH(ATM)

main33118-22030iRX8#..4FC198808-199608

main33118-22051iGX81..4FC198808-199512

main33118-22060iMX8#..4FC198808-199302

main33118-25020iLX80..4FC198808-199302

33119BPLATE, STIFFENER, LH(ATM)

main33119-22022iRX8#..4FC198808-199608

main33119-22030iMX8#..4FC198808-199302

main33119-22042iGX81..4FC198808-199512

main33119-25020iLX80..4FC198808-199302

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-22200iMX83198808-199302

main35013-22260iGX81..4FC198808-199409

main35013-22270iLX80..4FC198808-199302

main35013-22280iMX81..4FC198808-199302

main35013-22500iRX81..4FC199409-199608

main35013-35100iRX8#..4FC198808-199409

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-22140iMX83198808-199302

main35103-22150iLX80..4FC198808-199302

main35103-22360iRX81..4FC199409-199608

main35103-30240iGX81,MX81..4FC198808-199302

main35103-35090iRX8#..4FC198808-199409

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-26021iGX81,LX80,MX81,RX8#..4FC198808-199608

main35104-30133iMX83198808-199302

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001iGX81,LX80,MX8#,RX8#..4FC198808-199008

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03108iGX81,LX80,MX8#,RX8#..4FC198808-199608

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-30040iLX80..4FC198808-199003

main35106-30041iLX80..4FC199003-199302

main35106-30050iRX8#..4FC198808-198911

main35106-30051iRX8#..4FC198911-199008

main35106-30060iGX81,MX81..4FC198808-198911

main35106-30061iGX81,MX81..4FC198911-199008

main35106-30100iMX83198808-198911

main35106-30101iMX83198911-199302

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iGX81,LX80,MX8#,RX8#..4FC198808-199608

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iGX81,LX80,MX8#,RX8#..4FC198808-199608

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-14070iMX81..4FC198808-199302

main35111-22060iLX80..4FC198808-199302

main35111-24010iGX81..4FC198808-199302

main35111-24021iMX83198808-199302

main35111-35022iRX8#..4FC198808-199608

35111ARING, O (FOR AUTOMATIC TRANSMISSION HOUSING)

main90301-99054iGX81,LX80,MX81,RX8#..4FC198808-199608

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×2iGX81,LX80,MX8#,RX8#..4FC199008-199608

35143COVER, TRANSMISSION CASE, REAR

main35143-22010iGX81,LX80,MX81,RX8#..4FC198808-199608

35144GASKET, TRANSMISSION CASE REAR COVER

main35144-22010iGX81,LX80,MX81,RX8#..4FC198808-199012

main35144-28010iGX81,LX80,MX81,RX8#..4FC199012-199608

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-22011iGX81,LX80,MX81,RX8#..4FC198808-199608

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iGX81,LX80,MX8#,RX8#..4FC198808-199512

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×2iGX81,MX81..4FC; MX83198808-199302

35395ASTRAINER, GOVERNOR OIL

main35395-40010iGX81,MX81..4FC198808-199108

9010510190

main90105-10190

9010512144

main90105-12144

9011906117

main90119-06117

9011912168

main90119-12168

9111151016

main91111-51016

9161160816

main91611-60816

9161161030

main91611-61030

9161261035

main91612-61035

9165161040

main91651-61040

9322016012

main93220-16012

9451101000

main94511-01000

30 parts on this diagram · 5 diagrams in section
