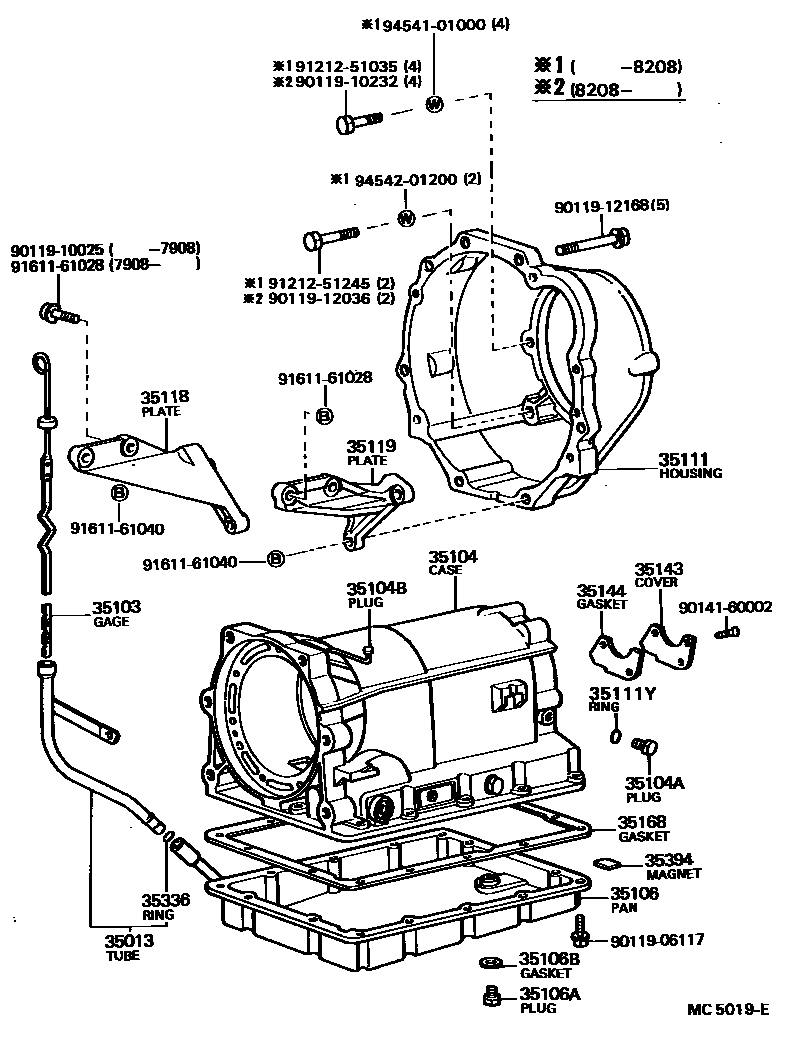

TRANSMISSION CASE & OIL PAN (ATM)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-14091iRX6#..ATM198009-198504

main35013-20040iTX62..3FC198107-198504

main35013-22130iLX60..LHD..4FC198009-198407

main35013-22150iMX6#198009-198504

main35013-22160iGX6#..4FC198208-198504

main35013-30080iLX60..RHD..4FC198009-198208

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-14022iRX6#..3FC198009-198308

main35103-14023iRX60..3FC198308-198407

main35103-20040iTX62..3FC198107-198308

main35103-20041iTX62..3FC198308-198504

main35103-20080iRX60..4FC198107-198308

main35103-20081iRX60..4FC198308-198504

main35103-30100iLX60..RHD..4FC198009-198208

main35103-30120iLX60..LHD..4FC198009-198308

main35103-30121iLX60..4FC198308-198407

main35103-30130iGX6#,MX62..4FC198009-198308

main35103-30131iGX6#,MX6#..4FC198308-198504

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-22024iRX60..3FC198009-198106

main35104-22025iRX6#,TX62..3FC198106-198504

main35104-26010iLX60,MX62..4FC198009-198106

main35104-26011iGX6#,LX60,MX6#..4FC198106-198504

main35104-30082iRX60..4FC198107-198504

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×2iGX6#,LX60,MX6#,RX6#,TX62..ATM198106-198504

main90341-08079×2iLX60,MX62,RX60..ATM198009-198106

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03069iGX6#,LX60,MX6#,RX6#,TX62..ATM198009-198504

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-22020iRX6#,TX62..3FC198009-198504

main35106-22031iRX60..4FC198107-198504

main35106-30040iLX60..RHD..4FC198009-198208

main35106-30050iGX6#,MX6#..4FC198009-198504

main35106-30060iLX60..LHD..4FC198009-198407

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10003iGX6#,LX60,MX62,RX6#,TX62..ATM198009-198307

main90341-10006iGX6#,LX60,MX6#,RX60,TX62..ATM198307-198504

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iGX6#,LX60,MX6#,RX6#,TX62..ATM198009-198504

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-14050iTX62..3FC198107-198504

main35111-14070iMX6#198208-198504

main35111-20061iRX60..3FC198009-198407

main35111-20070iRX60..4FC198107-198202

main35111-20071iRX60..4FC198202-198504

main35111-22031iRX62..3FC198107-198208

main35111-22060iLX60..4FC198208-198407

main35111-24010iGX6#..4FC198208-198504

main35111-30093iLX60..4FC198009-198108

main35111-30094iLX60..4FC198108-198208

main35111-30100iMX62198009-198208

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×2iGX6#,LX60,MX6#,RX6#,TX62..ATM198009-198504

35118PLATE, STIFENER, RH (ATM)

main33118-14010iTX62..3FC198107-198504

main33118-22030iRX6#..ATM198009-198504

main33118-22040iMX6#198009-198504

main33118-22050iGX6#..4FC198208-198504

main33118-25020iLX60..4FC198009-198407

35119PLATE, STIFENER, LH (ATM)

main33119-14040iTX62..3FC198107-198504

main33119-22021iRX6#..ATM198009-198504

main33119-22030iMX6#198009-198504

main33119-22041iGX6#..4FC198208-198504

main33119-25020iLX60..4FC198108-198407

main33119-30040iLX60..4FC198009-198108

35143COVER, TRANSMISSION CASE, REAR

main35143-22010iGX6#,LX60,MX6#,RX6#,TX62..ATM198009-198504

35144GASKET, TRANSMISSION CASE REAR COVER

main35144-22010iGX6#,LX60,MX6#,RX6#,TX62..ATM198009-198504

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-22011iGX6#,LX60,MX6#,RX6#,TX62..ATM198009-198504

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iGX6#,LX60,MX6#,RX6#,TX62..ATM198009-198504

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iLX60,MX62,RX6#,TX62..ATM198009-198504

9011906117

main90119-06117

9011910025

main90119-10025

9011910232

main90119-10232

9011912036

main90119-12036

9011912168

main90119-12168

9014160002

main90141-60002

9121251035

main91212-51035

9121251245

main91212-51245

9161161028

main91611-61028

9161161040

main91611-61040

9454101000

main94541-01000

9454201200

main94542-01200

29 parts on this diagram · 6 diagrams in section
