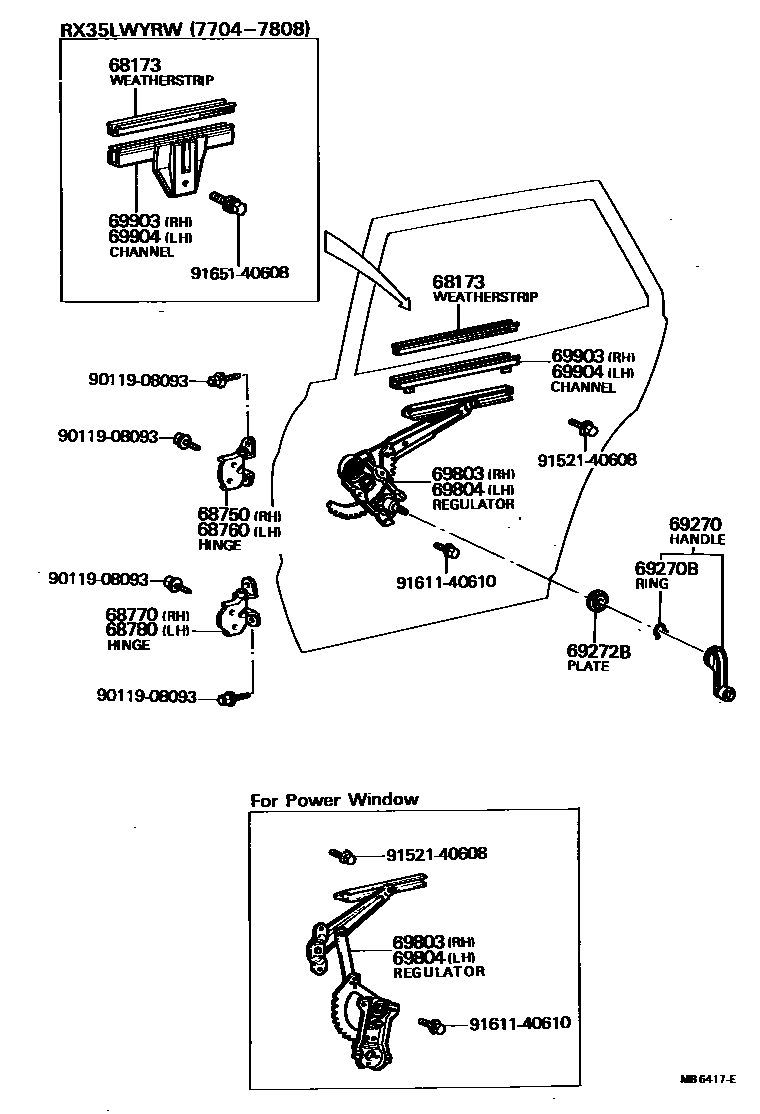

REAR DOOR WINDOW REGULATOR & HINGE

68173WEATHERSTRIP, REAR DOOR GLASS CHANNEL

main69975-22020×2iMX3#,RX3#,TX30..SED,WG197612-198008

68750HINGE ASSY, REAR DOOR, UPPER RH

main68710-22030iMX3#,RX3#,TX30..SED,WG197612-198008

68760HINGE ASSY, REAR DOOR, UPPER LH

main68720-22020iMX3#,RX3#,TX30..SED,WG197612-198008

68770HINGE ASSY, REAR DOOR, LOWER RH

main68730-22030iMX3#,RX3#,TX30..SED,WG197612-198008

68780HINGE ASSY, REAR DOOR, LOWER LH

main68740-22030iMX3#,RX3#,TX30..SED,WG197612-198008

69270HANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-22020-01×2iRX35..3H..GEN;RX35..3FC,4F,5F;MX3#,RX30,TX30..SED,WG197612-198008

BLACK,BLACK,TRIM1#,2#

main69260-22020-02×2iMX3#,RX3#,TX30..SED,WG197808-198008

DARK WINE,RED/MAROON,TRIM3#

main69260-22020-05×2iRX35..3H..GEN;RX35..3FC,4F,5F;MX3#,RX30,TX30..SED,WG197612-198008

BEIGE,BEIGE,TRIM4#

69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iRX35..3H..GEN;RX35..3FC,4F,5F;MX3#,RX30,TX30..SED,WG197612-198008

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69272-30010×2iRX35..3H..GEN;RX35..3FC,4F,5F;MX3#,RX30,TX30..SED,WG197612-198008

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-22050iRX30..SED..GL..(EUR,GEN)197808-198008

FOR POWER WINDOW

main69830-22030iRX35..3H..GEN;RX35..3FC,4F,5F;MX3#,RX30,TX30..SED,WG197612-198008

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-22050iRX30..SED..GL..(EUR,GEN)197808-198008

FOR POWER WINDOW

main69840-22030iRX35..3H..GEN;RX35..3FC,4F,5F;MX3#,RX30,TX30..SED,WG197612-198008

69903CHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-22020iRX35..3H..GEN;RX35..3FC,4F,5F;MX3#,RX30,TX30..SED,WG197612-198008

main69905-91601iRX35..3H..EUG197704-197808

69904CHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69905-22020iRX35..3H..GEN;RX35..3FC,4F,5F;MX3#,RX30,TX30..SED,WG197612-198008

main69906-91600iRX35..3H..EUG197704-197808

9011908093

main90119-08093

9152140608

main91521-40608

9161140610

main91611-40610

9165140608

main91651-40608

16 parts on this diagram · 1 diagram in section
