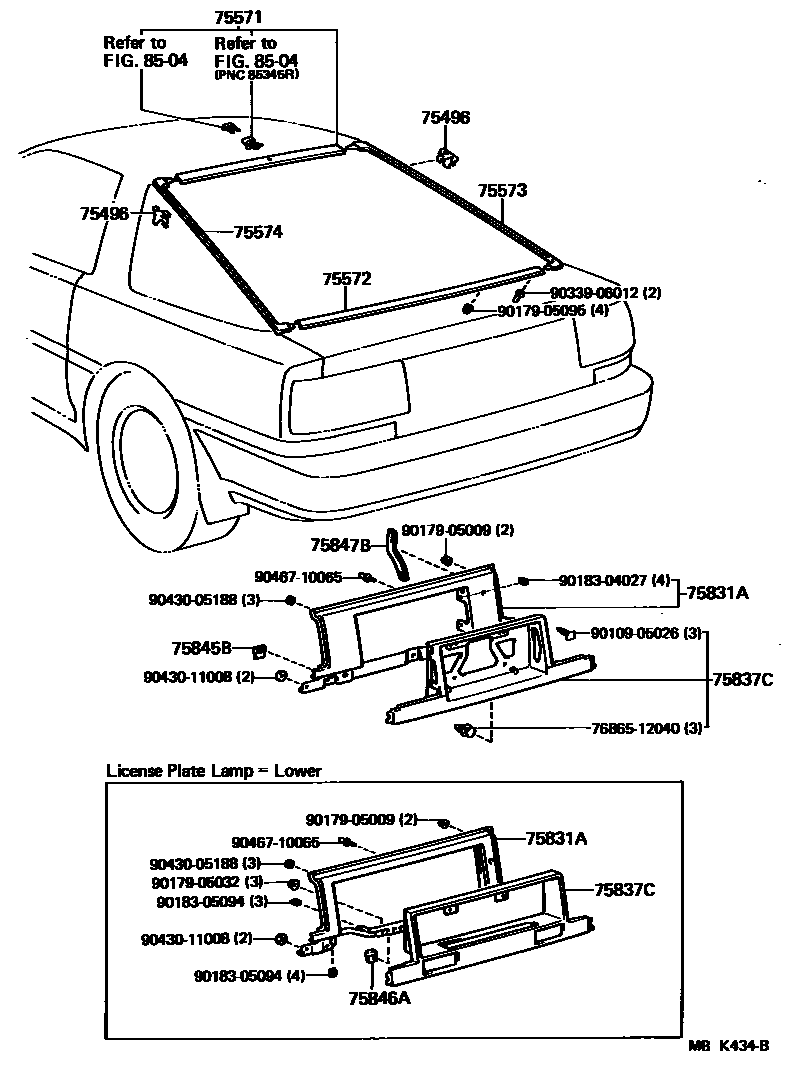

REAR MOULDING

75496CLIP, BACK WINDOW OUTSIDE MOULDING, NO.1

main75496-14010×2iMA70198601-198808

75571MOULDING, BACK WINDOW, OUTSIDE UPPER

main75571-14190iMA70198601-198808

W/*RW

main75571-14200iMA70..LHD198601-198808

W/O *RW

75572MOULDING, BACK WINDOW, LOWER

main75575-14170iMA70198601-198808

75573MOULDING, BACK WINDOW SIDE, RH

main75573-14200iMA70198601-198607

main75573-14201iMA70198607-198703

main75573-14202iMA70198703-198808

75574MOULDING, BACK WINDOW SIDE, LH

main75574-14170iMA70198601-198607

main75574-14171iMA70198607-198703

main75574-14172iMA70198703-198808

75831APANEL, LOWER BACK FINISH, CENTER

main75831-14270iMA70..EUR,GEN,SA198601-198808

*LPL=LOWER

main75831-14280iMA70..SDZ;MA70..ARL,GCC,GEN198601-198808

*LPL=SIDE

75837CCOVER, LOWER BACK FINISH PANEL HOLE

main75837-14030-02iMA70..EUR198601-198808

*LPL=LOWER,MAROON-M,MAROON METALLIC

main75837-14030-03iMA70..EUR198601-198808

*LPL=LOWER,GRAY-M,GRAY

main75837-14030-04iMA70..EUR198601-198808

*LPL=LOWER,BLUE-M,BLUE METALLIC

main75837-14060-02iMA70..SDZ;MA70..ARL,GCC,GEN198601-198808

*LPL=SIDE,MAROON-M,MAROON METALLIC

main75837-14060-03iMA70..SDZ;MA70..ARL,GCC,GEN198601-198808

*LPL=SIDE,GRAY-M,GRAY METALLIC

main75837-14060-04iMA70..SDZ;MA70..ARL,GCC,GEN198601-198808

*LPL=SIDE,BLUE-M,BLUE METALLIC

main75837-14070-02iMA70..GEN,SA198601-198808

*LPL=LOWER,MAROON-M,MAROON METALLIC,TRIM3#

main75837-14070-03iMA70..GEN,SA198601-198808

*LPL=LOWER,GRAY-M,GRAY METALLIC,TRIM1#

main75837-14070-04iMA70..GEN,SA198601-198808

*LPL=LOWER,BLUE-M,BLUE METALLIC,TRIM8#

75845BPAD, LOWER BACK FINISH PANEL

main75845-14160×2iMA70..SDZ;MA70..ARL,GCC,GEN198601-198808

*LPL=SIDE

75846APAD, LOWER BACK PANEL MOULDING, LOWER

main75846-14010×2iMA70..EUR,GEN,SA198601-198808

75847BPAD, LOWER BACK PANEL MOULDING

main75847-14040iMA70..SDZ;MA70..ARL,GCC,GEN198601-198808

*LPL=SIDE

8504REAR WASHER

→ Go to FIG 85-04

7686512040RETAINER, REAR SPOILER, NO.1

main76865-12040

9010905026

main90109-05026

9017905009

main90179-05009

9017905032

main90179-05032

9017905095

main90179-05095

9018304027

main90183-04027

9018305094

main90183-05094

9033906012

main90339-06012

9043005188

main90430-05188

9043011008

main90430-11008

9046710065

main90467-10065

22 parts on this diagram · 1 diagram in section
