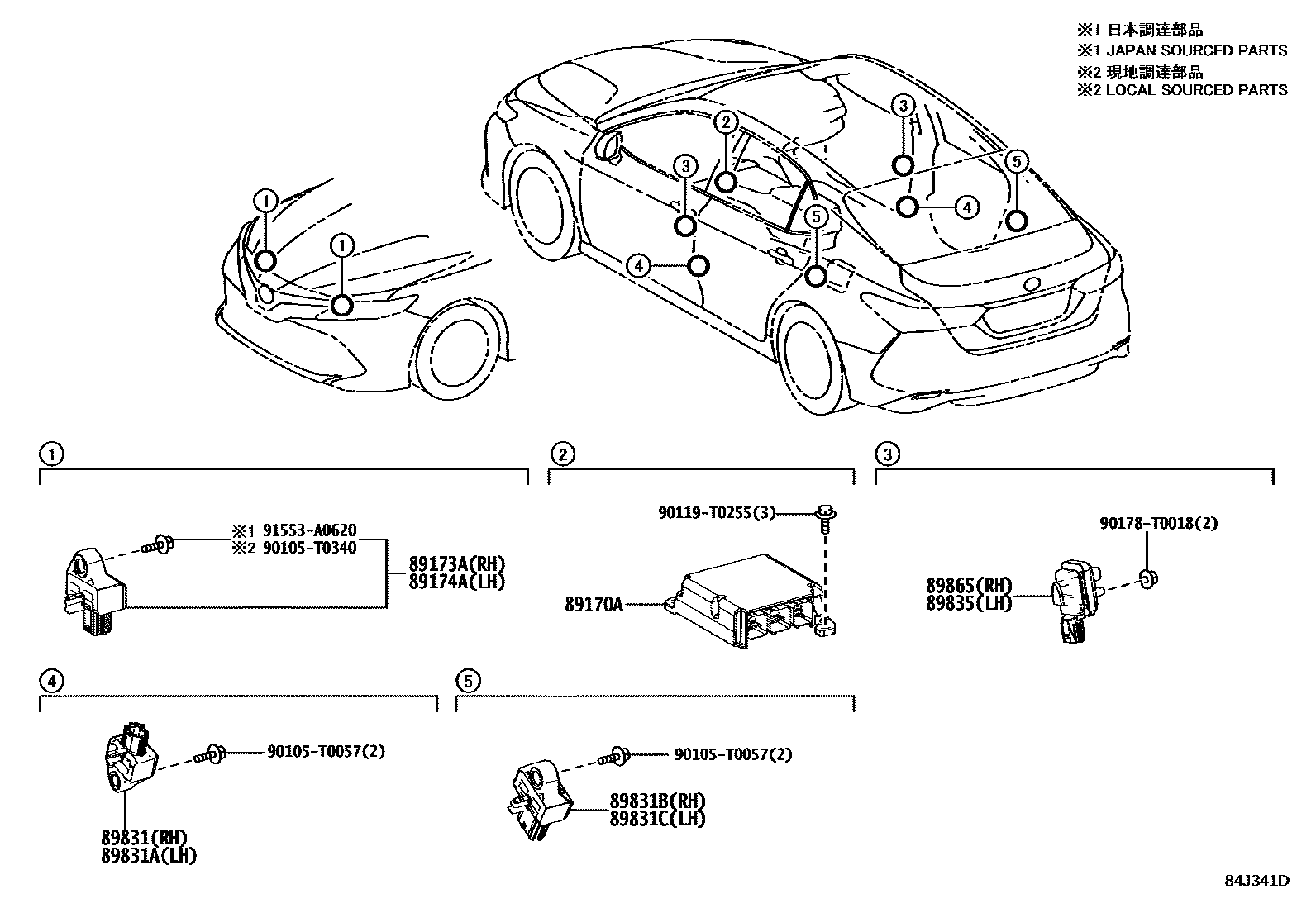

AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-06820iASV7#,AXVA70201810-202110

main89170-06850iAXVH71..RHD..(HBD,HBDV)..(IND,TH)201810-202112

main89170-06870iAXVH71..(HBD,HBDG)..(IDN,TH)201810-202110

main89170-06A00iAXVA70,MXVA71202111

main89170-06A10iAXVH71..LHD;AXVH71..HBDG202111

main89170-06B10iAXVH71..RHD..(HBD,HBDV)202111

89173ASENSOR, AIRBAG, FRONT RH

main89173-09D00iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

89174ASENSOR, AIRBAG, FRONT LH

main89173-09D00iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

89831SENSOR, SIDE AIRBAG, RH, NO.1

main89831-06190iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

89831ASENSOR, SIDE AIRBAG, LH, NO.1

main89831-06190iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

89831BSENSOR, SIDE AIRBAG, RH, NO.2

main89831-06180iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

89831CSENSOR, SIDE AIRBAG, LH, NO.2

main89831-06180iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

89835SENSOR, DOOR SIDE AIRBAG, LH

main8983A-33010iASV7#,AXVA70,AXVH71201810-202012

main8983A-33011iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)202101-202112

89865SENSOR, DOOR SIDE AIRBAG, RH

main8983A-33010iASV7#,AXVA70,AXVH71201810-202012

main8983A-33011iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)202101-202112

90105T0057

main90105-T0057

90105T0340

main90105-T0340

90119T0255

main90119-T0255

90178T0018

main90178-T0018

91553A0620

main91553-A0620

14 parts on this diagram · 1 diagram in section
