AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-06420iASV50..GCC201110-201504

main89170-06440iASV50..ARL201504-201710

main89170-06540iAVV50201201-201504

main89170-06600iGSV50..GCC201504-201710

main89170-06610iGSV50..ARL201504-201710

main89170-06630iASV50..GCC201605-201710

main89170-06430iASV50..GLX,SE201309-201504

VSC-WITH

89173ASENSOR, AIRBAG, FRONT RH

main89173-09820iASV50..6F201110-201211

89174ASENSOR, AIRBAG, FRONT LH

main89173-09820iASV50..6F201110-201211

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-52020iASV50..6FC..(GLX,SE); GSV50;ASV50,AVV50..ARL201110-201504

VSC-WITH

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-52020iASV50..6FC..(GLX,SE); GSV50;ASV50,AVV50..ARL201110-201504

VSC-WITH

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

main89831-33040iASV50..6FC..(GLX,SE); GSV50;ASV50,AVV50..ARL201110-201504

VSC-WITH

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

main89831-33040iASV50..6FC..(GLX,SE); GSV50;ASV50,AVV50..ARL201110-201504

VSC-WITH

90105T0143

main90105-T0143

90119T0255

main90119-T0255

9155380620

main91553-80620

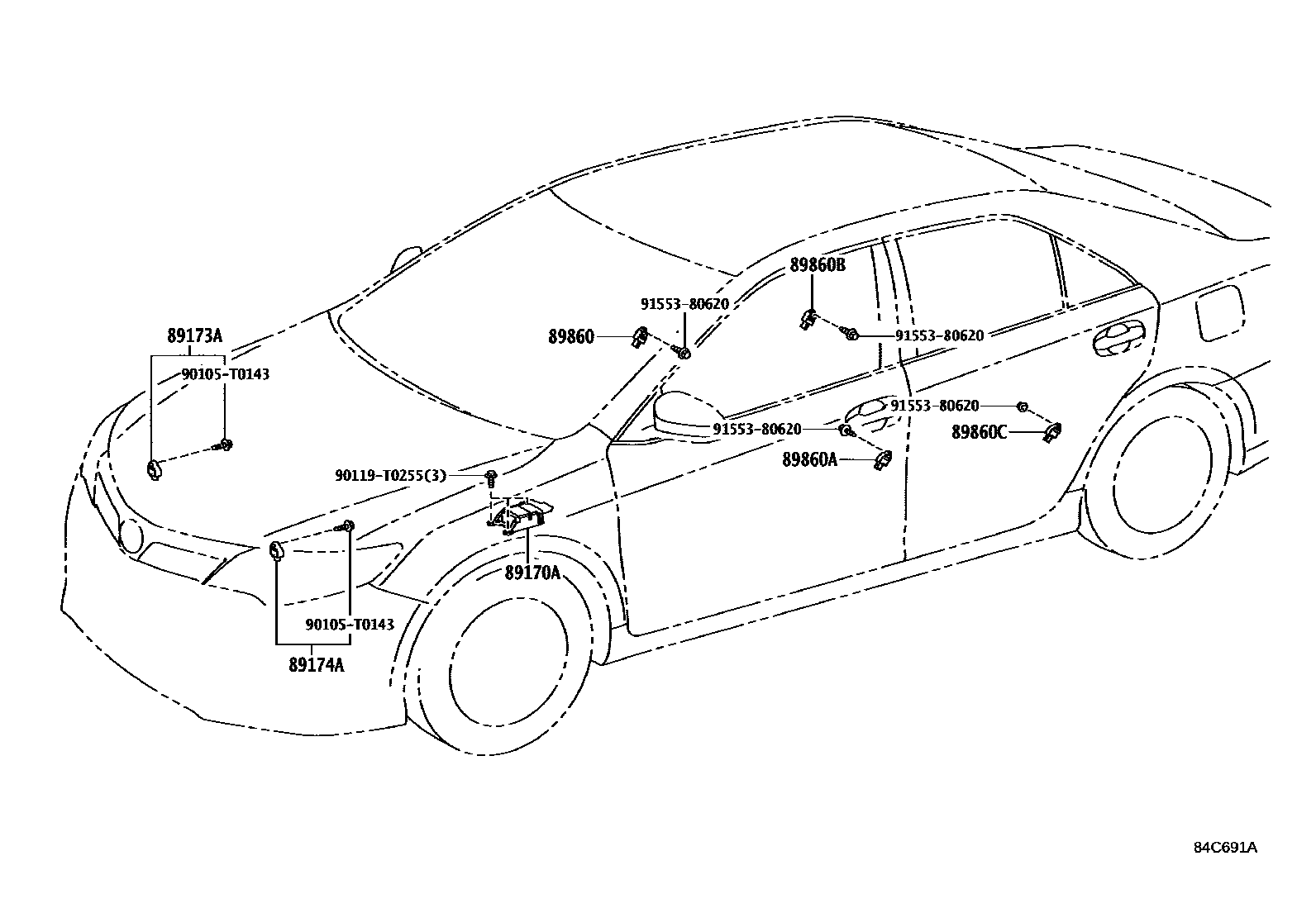

10 parts on this diagram · 1 diagram in section
