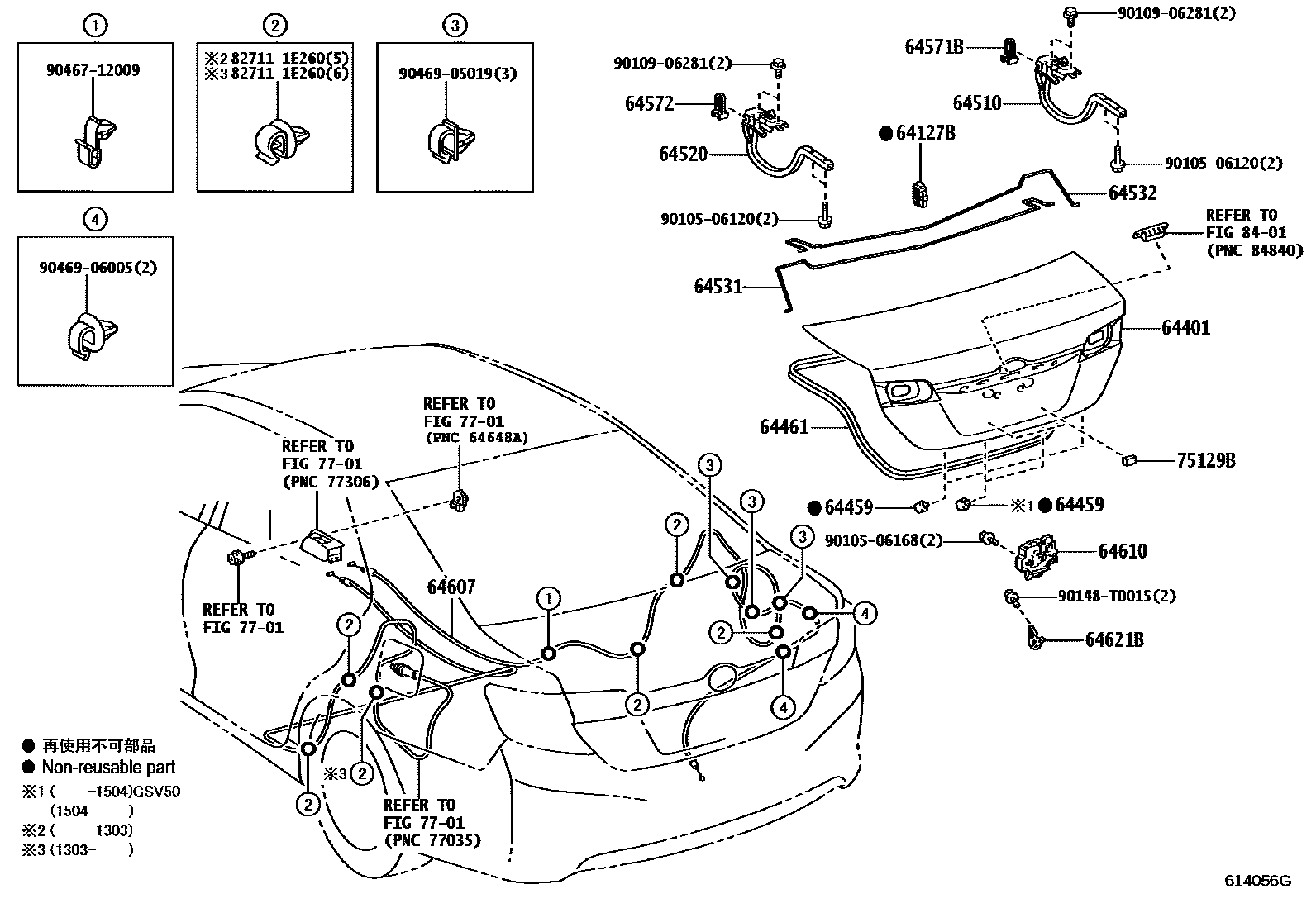

LUGGAGE COMPARTMENT DOOR & LOCK
64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
REAR SPOILER-WITH(LUGGAGE COMPARTMENT DOOR=LIP TYPE)
REAR SPOILER-WITH(LUGGAGE COMPARTMENT DOOR=WING TYPE); REAR SPOILER-WITH(LUGGAGE COMPARTMENT DOOR=WING TYPE)&AUDIO-DISPLAY 6SPEAKER BLUETOOTH
DECONTENT PACKAGE
main64401-06B60supersedes 64401-06B50iASV50,AVV50..ATRS,HBD; ASV50..ATRS; ASV50..ATRSX; ASV50..GLX201504
LIMITED PACKAGE; PAPUA NEW GUINEA/FIJI SPEC; REAR SPOILER-WITH&WIRELESS DOOR LOCK-W(SMART ENTRY)
REAR SPOILER-WITH; SE PACKAGE
STARTING SYSTEM-ROTARY(MECHANICAL)
WIRELESS DOOR LOCK-WITH
STARTING SYSTEM-PUSH BUTTON&AUDIO-AVN 6SPEAKER BLUETOOTH
REAR SPOILER-WITH(LUGGAGE COMPARTMENT DOOR=WING TYPE)
WIRELESS DOOR LOCK-W(SMART ENTRY)
REAR SPOILER-WITH
REAR SPOILER-WITH(LUGGAGE COMPARTMENT DOOR=LIP TYPE)
REAR SPOILER-WITH(LUGGAGE COMPARTMENT DOOR=LIP TYPE)&WIRELESS DOOR LOCK-WITH
REAR SPOILER-WITH
64459CUSHION, LUGGAGE COMPARTMENT DOOR
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
REAR SPOILER-WITH(LUGGAGE COMPARTMENT DOOR=WING TYPE)
64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
64531BAR, LUGGAGE DOOR HINGE TORSION, RH
REAR SPOILER-WITH(LUGGAGE COMPARTMENT DOOR=LIP TYPE)
REAR SPOILER-WITH(LUGGAGE COMPARTMENT DOOR=WING TYPE)
LIMITED PACKAGE; PAPUA NEW GUINEA/FIJI SPEC; REAR SPOILER-WITH
64532BAR, LUGGAGE DOOR HINGE TORSION, LH
REAR SPOILER-WITH(LUGGAGE COMPARTMENT DOOR=LIP TYPE)
REAR SPOILER-WITH(LUGGAGE COMPARTMENT DOOR=WING TYPE)
64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH
64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH
64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR
WIRELESS DOOR LOCK-WITH
64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK
75129BCUSHION, REAR LICENCE PLATE
7701FUEL TANK & TUBE
8401SWITCH & RELAY & COMPUTER
827111E260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E260
9010506120
main90105-06120
9010506168
main90105-06168
9010906281
main90109-06281
90148T0015
main90148-T0015
9046712009
main90467-12009
9046905019
main90469-05019
9046906005
main90469-06005
24 parts on this diagram · 3 diagrams in section
