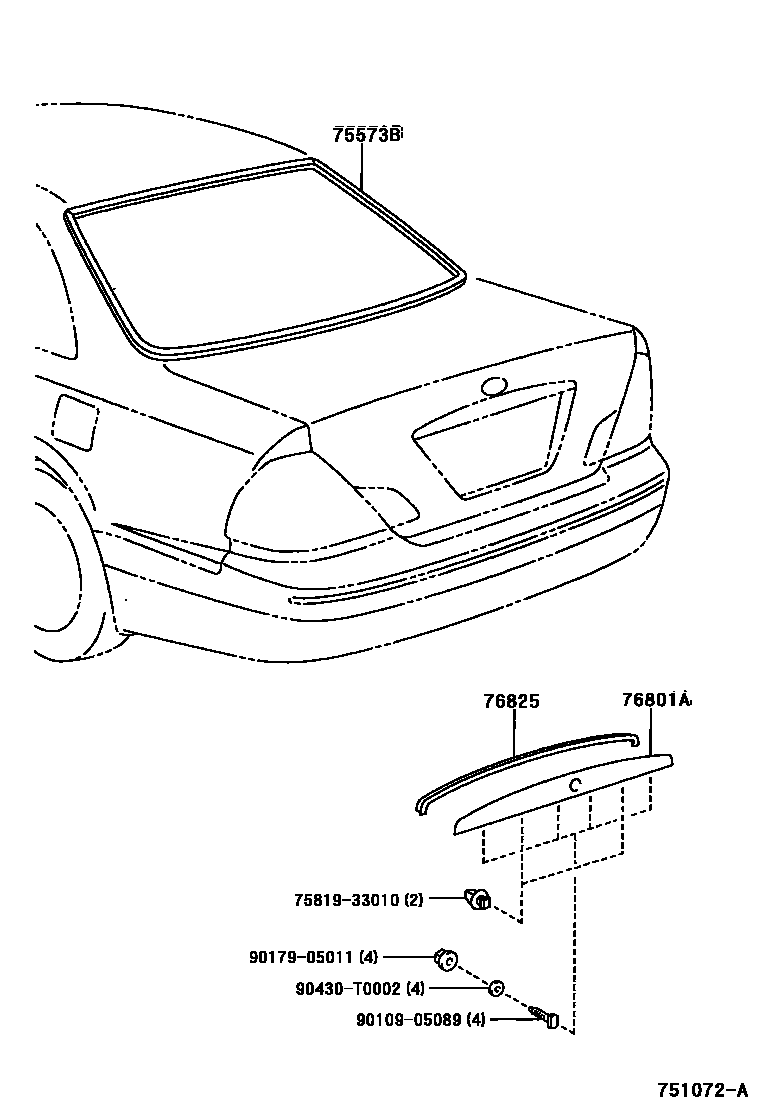

REAR MOULDING

0001 1 0002 1

75573BMOULDING, BACK WINDOW, OUTSIDE

main75571-YC010iACV36,MCV36..ARL200208-200408

main75571-YC020iACV36,MCV36..GCC200208-200408

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-YC060-A0iACV36,MCV36..ALT,SPV,TOU,XLI200408-200606

DIAMOND WHITE,061

main76801-YC060-B0iACV36,MCV36..ALT,SPV,TOU,XLI200408-200508

SILVER M,173

main76801-YC060-B1iACV36,MCV36..ALT,SPV,TOU,XLI200508-200606

SILVER ME.,1D4

main76801-YC060-C0iACV36,MCV36..ALT,SPV,TOU,XLI200408-200606

BLACK MC.,209

main76801-YC060-D0iACV36,MCV36..ALT,SPV,TOU,XLI200408-200606

RED M.M.,3N8

main76801-YC060-E0iACV36..XLI200408-200606

YANMER BEIGE,4Q0

main76801-YC060-E1iACV36,MCV36..TOU,XLI200408-200606

LT.BEIGE ME.OP.,4N5

main76801-YC060-E2iACV36,MCV36..ALT,SPV,TOU,XLI200508-200606

BEIGE M.M.,4N3

main76801-YC060-F0iACV36,MCV36..ALT,SPV,TOU,XLI200408-200508

CHAMPAGNE ME.,583

main76801-YC060-G0iACV36,MCV36..ALT,SPV,TOU,XLI200408-200606

LT.GREEN M.M.,6S8

main76801-YC060-J0iACV36,MCV36..ALT,SPV,TOU,XLI200408-200601

BLUE M.M.,8Q1

main76801-YC060-J1iACV36,MCV36..ALT,SPV,TOU,XLI200408-200606

PALE BLUE M.M.,8R0

main76801-YC060-J2iACV36,MCV36..ALT,SPV200601-200606

LT.BLUE ME.,8M7

main76801-YC060-J3iACV36,MCV36..SPV200601-200606

BLUE ME.,8P1

main76801-YC070-A0iACV36,MCV36..GD,GLI; MCV36..ATM..SPV200408-200606

CHROM PLATED,DIAMOND WHITE,061; DIAMOND WHITE,061

main76801-YC070-B0iACV36,MCV36..GD,GLI; MCV36..ATM..SPV200408-200508

CHROM PLATED,SILVER M,173; SILVER M,173

main76801-YC070-B1iACV36,MCV36..GD,GLI; MCV36..ATM..SPV200508-200606

CHROM PLATED,SILVER ME.,1D4; SILVER ME.,1D4

main76801-YC070-C0iACV36,MCV36..GD,GLI; MCV36..ATM..SPV200408-200606

BLACK MC.,209; CHROM PLATED,BLACK MC.,209

main76801-YC070-D0iACV36,MCV36..GD,GLI; MCV36..ATM..SPV200408-200606

CHROM PLATED,RED M.M.,3N8; RED M.M.,3N8

main76801-YC070-E0iACV36,MCV36..(GD,GLI)..GCC200408-200606

LT.BEIGE ME.OP.,4N5

main76801-YC070-E1iACV36,MCV36..GD,GLI; MCV36..ATM..SPV200508-200606

BEIGE M.M.,4N3; CHROM PLATED,BEIGE M.M.,4N3

main76801-YC070-F0iACV36,MCV36..GD,GLI; MCV36..ATM..SPV200408-200508

CHAMPAGNE ME.,583; CHROM PLATED,CHAMPAGNE ME.,583

main76801-YC070-G0iACV36,MCV36..GD,GLI; MCV36..ATM..SPV200408-200606

CHROM PLATED,LT.GREEN M.M.,6S8; LT.GREEN M.M.,6S8

main76801-YC070-J0iACV36,MCV36..GD,GLI; MCV36..ATM..SPV200408-200601

BLUE M.M.,8Q1; CHROM PLATED,BLUE M.M.,8Q1

main76801-YC070-J1iACV36,MCV36..GD,GLI; MCV36..ATM..SPV200408-200606

CHROM PLATED,PALE BLUE M.M.,8R0; PALE BLUE M.M.,8R0

main76801-YC070-J2iMCV36..GD..ARL; MCV36..SPV200601-200606

CHROM PLATED,LT.BLUE ME.,8M7; LT.BLUE ME.,8M7

main76801-YC080iACV36..ATEVA;MCV36..ATM..(ATEVA,SPV)200408-200606

PLATED

76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE

main76811-YC030iACV36,MCV36..ALT,ALTS200208-200408

NO PAINT REQ.,UNPAINTED(BLACK)

main76811-YC040-A0iACV36,MCV36..ATEVA,SPV,TOU,XLI200208-200408

DIAMOND WHITE,061

main76811-YC040-B0iACV36,MCV36..ATEVA,SPV,TOU,XLI200208-200408

SILVER M,173

main76811-YC040-C0iACV36,MCV36..ATEVA,SPV200404-200408

BLACK MC.,209

main76811-YC040-D0iACV36,MCV36..ATEVA,SPV,TOU,XLI200208-200301

DK.RED MC.,3N4

main76811-YC040-D1iACV36,MCV36..ATEVA,SPV,TOU,XLI200208-200408

DK. RED MC.,3N6

main76811-YC040-D2iACV36,MCV36..ATEVA,SPV,TOU,XLI200301-200408

RED M.M.,3N8

main76811-YC040-E0iACV36,MCV36..ATEVA,SPV,TOU,XLI200208-200408

LT.BEIGE ME.OP.,4N5

main76811-YC040-E1iACV36..XLI200208-200408

YANMER BEIGE,4Q0

main76811-YC040-F0iACV36,MCV36..ATEVA,SPV,TOU,XLI200208-200408

CHAMPAGNE ME.,583

main76811-YC040-G0iACV36,MCV36..ATEVA,SPV,TOU,XLI200208-200301

LT.GREEN ME.OP.,6P7

main76811-YC040-G1iACV36,MCV36..ATEVA,SPV,TOU,XLI200208-200307

MD.GREEN ME.,6P8

main76811-YC040-G2iACV36,MCV36..ATEVA,SPV,TOU,XLI200208-200408

DARK GREEN MC.,6R4

main76811-YC040-G3iACV36,MCV36..ATEVA,SPV,TOU,XLI200301-200408

LT.GREEN M.M.,6S8

main76811-YC040-J0iACV36,MCV36..ATEVA,SPV,TOU,XLI200208-200408

DK.BLUE MC.,8N8

main76811-YC040-J1iACV36,MCV36..ATEVA,SPV,TOU,XLI200208-200408

DK.BLUE M.M.,8P4

main76811-YC040-J2iACV36,MCV36..ATEVA,SPV,TOU,XLI200301-200408

LIGHT BLUE M.M.,8R0

main76811-YC050iACV36..GLI;MCV36..MTM..GD;MCV36..ATM..(GD,SPV)200208-200408

PLATED,CHROME PLATED

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-YC010iACV36,MCV36200208-200408

7581933010CLIP, LUGGAGE COMPARTMENT DOOR MOULDING

main75819-33010

9010905089

main90109-05089

9017905011

main90179-05011

90430T0002

main90430-T0002

8 parts on this diagram · 2 diagrams in section
