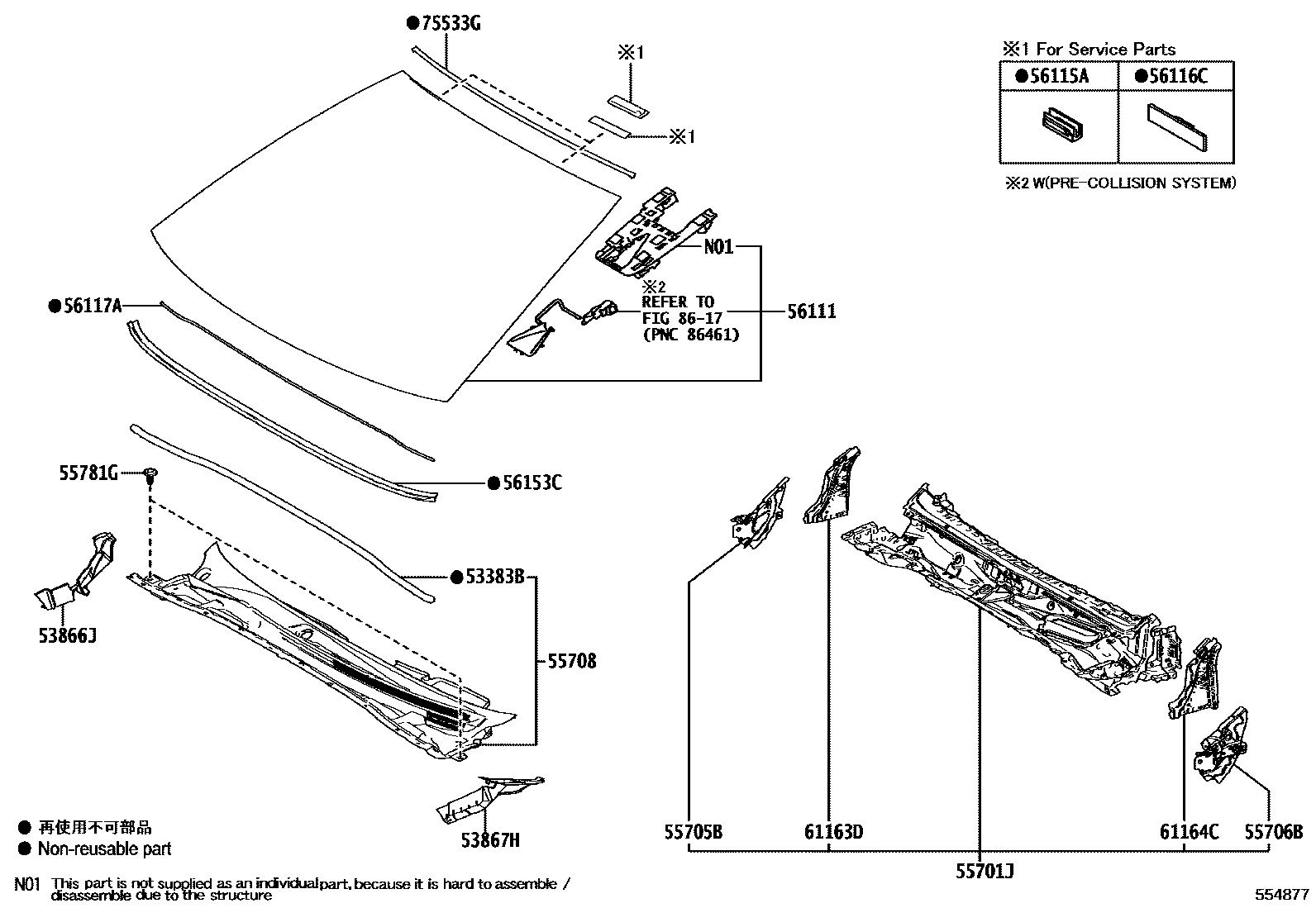

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1 0003 1 0004 1

53383BSEAL, HOOD TO COWL TOP

main53383-33140iASV70,AXVA70,AXVH7#,GSV70201709-202101

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-33090iASV70,AXVA70,AXVH71,GSV70..LHD201712-202101

main53866-33100iASV70,AXVH7#,GSV70..ARL201709-202101

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-33090iAXVA70,AXVH71,GSV70,MXVA71..LHD202102

main53867-33100iAXVA70,AXVH70..ARL202102

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-33260iASV70,AXVH7#,GSV70..ARL201709-202101

main55701-33270iAXVA70,AXVH71,GSV70,MXVA71..LHD202102

main55701-33250iAXVH71..TAKR201808-202008

LE PACKAGE(KOREA SPEC)

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-33040iAXVA70,AXVH7#,GSV70,MXVA71202102

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-33040iASV70,AXVA70,AXVH7#,GSV70201709-202101

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-33280iASV70,AXVH71,GSV70..ARL201709-201807

main55708-33281iAXVA70,AXVH70..ARL202102-202311

main55708-33282iAXVA70,AXVH70..ARL202311

main55708-33300iASV70,AXVA70,AXVH71,GSV70..GCC201712-201807

main55708-33301iAXVA70,AXVH71,GSV70,MXVA71..LHD202102-202312

main55708-33302iAXVA70,AXVH71,GSV70,MXVA71..LHD202401

main55708-33271iAXVH71..TAKR201808-202008

KOREA SPEC

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-09242×2iAXVA70,AXVH7#,GSV70,MXVA71202102

56111GLASS, WINDSHIELD

main56101-3T900iASV70,AXVA70..LE201712-201804

main56101-3T902iASV70,AXVA70,GSV70..GLE,LIMD,SE201712-201804

main56101-3T910iGSV70..N201712-202101

main56101-3T913iGSV70..V;ASV70,AXVH7#..ARL201709-202101

main56101-3T917iAXVH71..GCC;ASV70,AXVA70..LE201804-202101

main56101-3Y929iAXVH71..TAKR201808-202101

main56101-3Y934iAXVA70..GLE,SE202102

main56101-3Y957iGSV70202102

main56101-3Y959iMXVA71202102

main56101-3Y961iAXVH71..TAKR202102-202203

main56101-3Y971iAXVA70,AXVH70..ARL202102

main56101-3Y974iAXVH71..TAKR202204

main56101-3T914iASV70..N201709-202101

PAPUA NEW GUINEA/FIJI SPEC

main56101-3T915iAXVH71..TAKR201910-202008

LE PACKAGE(KOREA SPEC)

main56101-3Y933iAXVH71..GCC201804-202101

EXCLUSIVE PACKAGE&LIMITED&AUDIO-8INCH DISPLAY & DVD & 6SPEAKER

main56101-3Y955iAXVH71..GCC202102-202203

LIMITED&EXCLUSIVE PACKAGE&AUDIO-9INCH & *DA & 9SPEAKAR & JBL

main56101-3Y958iAXVH70..D202102-202203

ATARA SL

main56101-3Y972iAXVH71..GCC202204-202307

LIMITED&EXCLUSIVE PACKAGE&AUDIO-9INCH & *DA & 9SPEAKAR & JBL

main56101-3Y973iAXVH70..D202204

ATARA SL

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30120iAXVA70,AXVH7#,GSV70,MXVA71202102

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iASV70,AXVA70,AXVH7#,GSV70201709-202101

56117ADAM, WINDOW GLASS ADHESIVE

main56117-64010iAXVA70,AXVH7#,GSV70,MXVA71; AXVH70..D202102

*D,L=1298 OR 725; *D,L=1298 OR 725,ATARA SL

56153CMOULDING, FRONT WINDOW, INNER CENTER

main56153-33010iASV70,AXVA70,AXVH7#,GSV70201709-202101

main56153-33070iAXVA70,AXVH7#,GSV70,MXVA71202312

61163DPILLAR, FRONT BODY, LOWER INNER RH

main61163-33020iAXVA70,AXVH70..ARL202102

main61163-33030iAXVA70,AXVH71,GSV70,MXVA71..LHD202102

61164CPILLAR, FRONT BODY, LOWER INNER LH

main61164-33020iAXVA70,AXVH70..ARL202102

main61164-33030iAXVA70,AXVH71,GSV70,MXVA71..LHD202102

75533GMOULDING, WINDSHIELD, OUTSIDE

main75531-33150iAXVA70,AXVH7#,GSV70,MXVA71202102

8617PRE-COLLISION SYSTEM

→ Go to FIG 86-17

17 parts on this diagram · 4 diagrams in section
