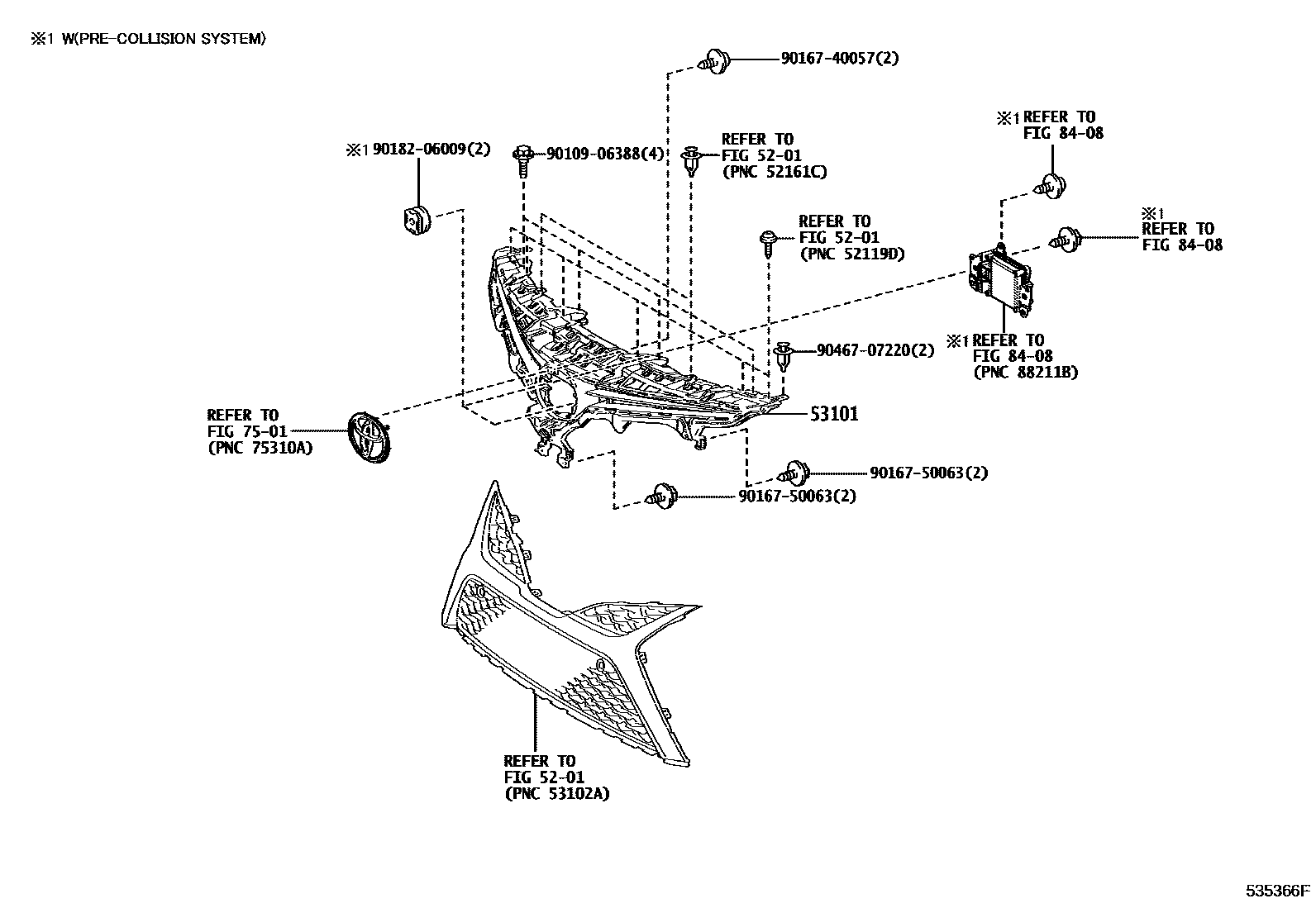

RADIATOR GRILLE

0001 1 0002 1 0003 1ATARA S OR ATARA SL 0004 1 0005 1 0006 1ATARA S OR ATARA SL

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

53101GRILLE SUB-ASSY, RADIATOR

main53101-33410iASV70..D;AXVH7#..ARL;ASV70,AXVA70..GLE,LE201712-202101

NO PAINT REQ.

main53101-33540iGSV70..LIMD;AXVH71..TAKR201712-202101

NO PAINT REQ.

main53101-33570iASV70,GSV70..N,V;ASV70,AXVA70,GSV70..SE201709-202101

NO PAINT REQ.

main53101-33620iAXVA70,AXVH7#,MXVA71..D;AXVA70,GSV70..GLE,LE,LIMD202102

NO PAINT REQ.

main53101-33640iAXVH70..D202102

NO PAINT REQ.,ATARA S

main53101-33640iAXVH70..V;AXVA70,GSV70..SE202102

NO PAINT REQ.

main53101-33640iAXVH70..V;AXVA70,GSV70..SE202102

NO PAINT REQ.,ATARA SL

main53101-33A00iAXVH71..GCC201804-202101

NO PAINT REQ.

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

9010906388

main90109-06388

9016740057

main90167-40057

9016750063

main90167-50063

9018206009

main90182-06009

9046707220

main90467-07220

9 parts on this diagram · 6 diagrams in section
