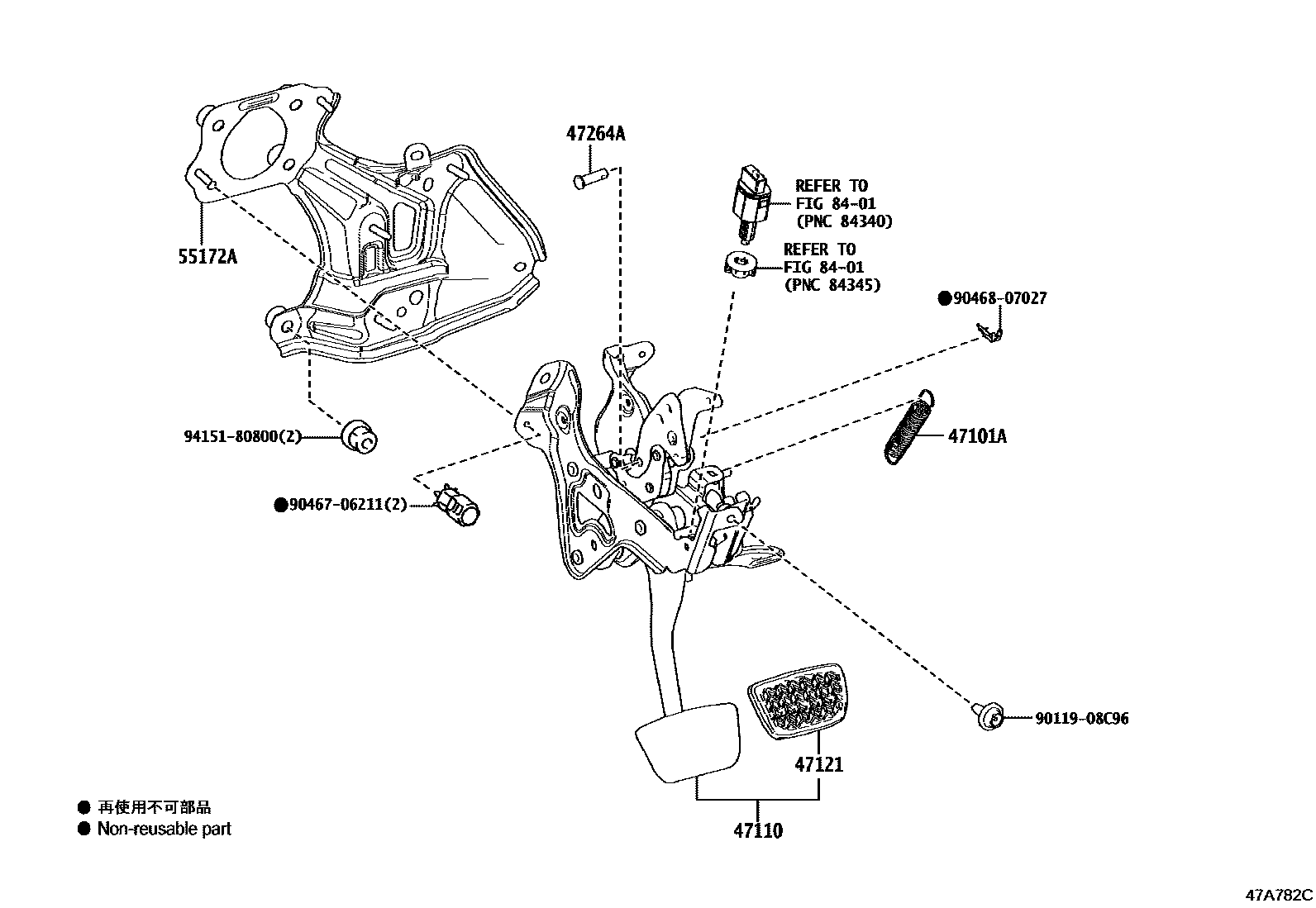

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12046iASV70,AXVA70,AXVH7#,GSV70201709-202101

47110SUPPORT ASSY, BRAKE PEDAL

main47110-33340iASV70,AXVA70,GSV70..LHD201712-202101

main47110-33341iAXVA70,GSV70,MXVA71..LHD202108

main47110-33360iASV70,GSV70..ARL201709-202101

main47110-33361iAXVA70..ARL202108

main47110-33370iAXVH71202102-202107

main47110-33371iAXVH71202108

main47110-33490iAXVH70202102-202107

main47110-33491iAXVH70202108

47121PAD, BRAKE PEDAL

main47121-48010iASV70,AXVA70,AXVH7#,GSV70201709-202101

main47121-62010iAXVA70,AXVH7#,GSV70,MXVA71202108

47264APIN(FOR PUSH ROD)

main90240-08078iASV70,AXVA70,AXVH7#,GSV70201710-202101

main90240-08082iASV70201709-201710

55172ABASE, BRAKE PEDAL SUPPORT

main55172-33040iASV70,AXVA70,AXVH71,GSV70..LHD201712-202101

main55172-33050iASV70,AXVH7#,GSV70..ARL201709-202101

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908C96

main90119-08C96

9046706211

main90467-06211

9046807027

main90468-07027

9415180800

main94151-80800

10 parts on this diagram · 2 diagrams in section
