IGNITION COIL & SPARK PLUG / GLOW PLUG

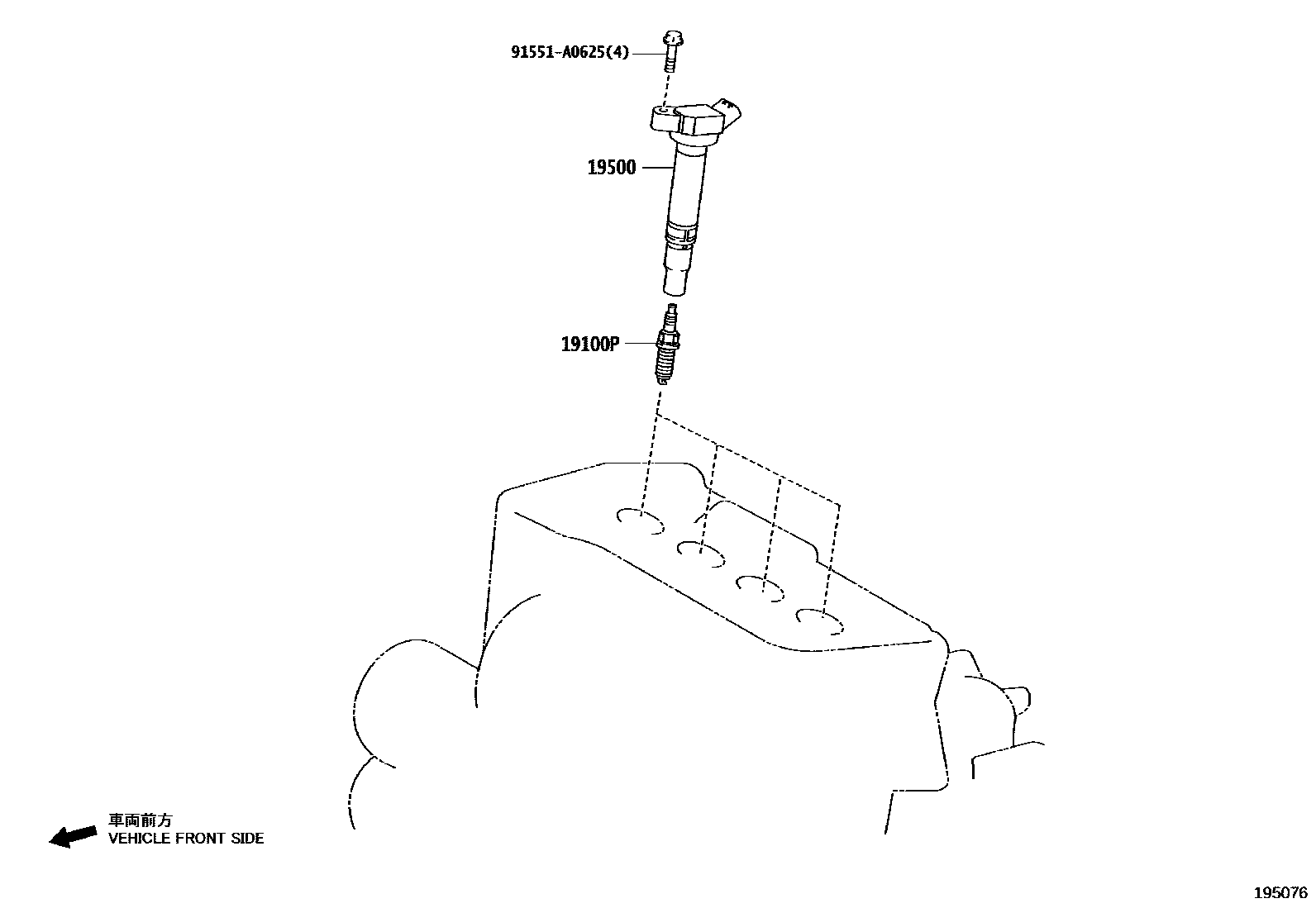

Parts diagram

19100PPLUG, SPARK

main90919-01233×4i201709-202101

SK16HR11

main90919-01263×6i201712-202101

FK20HBR8

main90919-01289×4i201712-202101

FC16HR-Q8

main90919-01297×4i202102

FC20HR-Q8

19500COIL ASSY, IGNITION

main90919-02256×4i201709-202101

main90919-02273×6i202307

main90919-02276×4i201712-202101

main90919-02277×4i202102

main90919-02280×6i201712-202101

91551A0625

main91551-A0625

3 parts on this diagram · 4 diagrams in section
