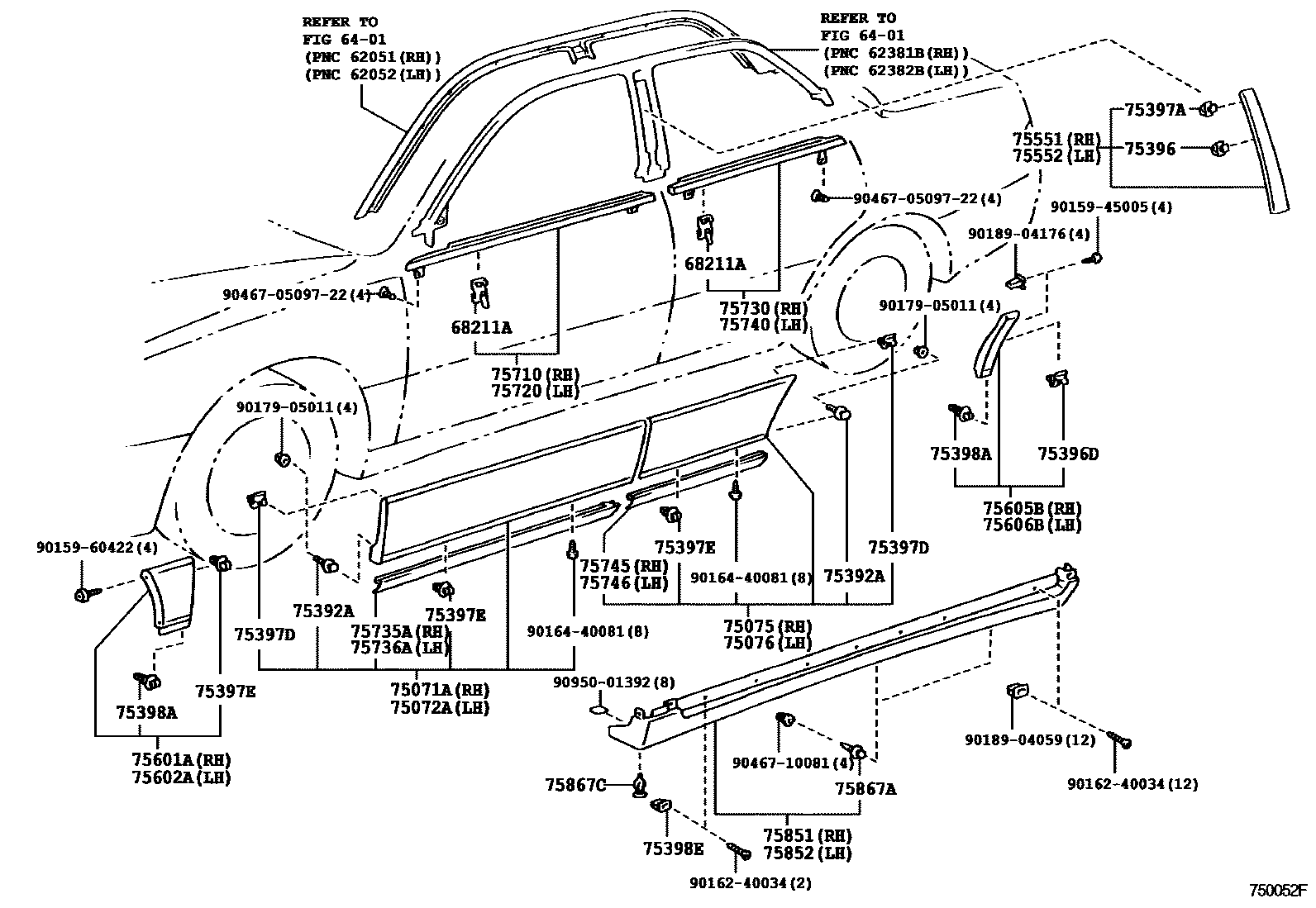

SIDE MOULDING

6401INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

→ Go to FIG 64-01

68211ACLIP, DOOR BELT MOULDING

main68211-33020×22iMCV20199608

75071AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH

main75071-33050-B0iMCV20199808-200010

DARK RED ME.,3N6

main75071-33050-B2iMCV20..GCC200001-200007

LT.GRAY ME.,4P2

main75071-33050-B3iMCV20200010

DARK RED ME.,3N6

main75071-33050-C0iMCV20199608-199908

LT.GRAY ME.,4M7

main75071-33050-C1iMCV20..GCC200001-200007

SILVER M.,062

main75071-33050-C2iMCV20200010

SILVER M,,051

main75071-33050-D0iMCV20199608-200010

GRAY ME.,1B2

main75071-33050-D1iMCV20199608-199808

DK.WINE RED MC.,3L3

main75071-33050-D2iMCV20199908-200010

GRAY ME.,1C0

main75071-33050-D3iMCV20200010

GRAY ME.,1B2

main75071-33050-D4iMCV20200010

GRAY ME.,1C0

main75071-33050-E0iMCV20199608-199808

DK.GRAY ME.,6P2 ,8L3

main75071-33050-E1iMCV20199908-200010

LT.GRAYISH BEIGE ME.,4M9

main75071-33050-E2iMCV20199908-200010

GRAY ME.,1C6

main75071-33050-E4iMCV20200010

GRAY ME.,1C6

main75071-33050-E5iMCV20200010

LT.GRAYISH BEIGE ME.,4M9

main75071-33050-F0iMCV20199908-200010

GRAYISH GREEN M.M.,6R6

main75071-33050-F1iMCV20200010

GRAYISH GREEN M.M.,6R6

main75071-33050-H1iMCV20..GCC199810-199908

MEDIUM GRAY ME.,202 ,6R1 ,8L3

main75071-33050-H3iMCV20..GCC200010

MEDIUM GRAY ME.,202

75072AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH

main75072-33050-B0iMCV20199808-200010

DARK RED ME.,3N6

main75072-33050-B2iMCV20..GCC200001-200007

LT.GRAY ME.,4P2

main75072-33050-B3iMCV20200010

DARK RED ME.,3N6

main75072-33050-C0iMCV20199608-199908

LT.GRAY ME.,4M7

main75072-33050-C1iMCV20199908-200010

SILVER M.,051

main75072-33050-C2iMCV20200010

SILVER M,,051

main75072-33050-D0iMCV20199608-200010

GRAY ME.,1B2

main75072-33050-D1iMCV20199608-199808

DK.WINE RED MC.,3L3

main75072-33050-D2iMCV20199908-200010

GRAY ME.,1C0

main75072-33050-D3iMCV20200010

GRAY ME.,1B2

main75072-33050-D4iMCV20200010

GRAY ME.,1C0

main75072-33050-E0iMCV20199608-199808

DK.GRAY ME.,6P2 ,8L3

main75072-33050-E1iMCV20199608-199908

LT.GRAYISH BEIGE ME.,051 ,4M9

main75072-33050-E2iMCV20199908-200010

GRAY ME.,1C6

main75072-33050-E4iMCV20200010

GRAY ME.,1C6

main75072-33050-E5iMCV20200010

LT.GRAYISH BEIGE ME.,4M9

main75072-33050-F0iMCV20199908-200010

GRAYISH GREEN M.M.,6R6

main75072-33050-F1iMCV20200010

GRAYISH GREEN M.M.,6R6

main75072-33050-H1iMCV20..GCC199810-199908

MEDIUM GRAY ME.,202 ,6R1 ,8L3

main75072-33050-H2iMCV20..GCC200010

MEDIUM GRAY ME.,202

75075MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH

main75075-33060-B0iMCV20199808-200010

DARK RED ME.,3N6

main75075-33060-B2iMCV20..GCC200001-200007

LT.GRAY ME.,4P2

main75075-33060-B3iMCV20200010

DARK RED ME.,3N6

main75075-33060-C0iMCV20199608-199908

LT.GRAY ME.,4M7

main75075-33060-C1iMCV20199908-200010

SILVER M.,051

main75075-33060-C2iMCV20200010

SILVER M,,051

main75075-33060-D0iMCV20199608-200010

GRAY ME.,1B2

main75075-33060-D1iMCV20199608-199808

DK.WINE RED MC.,3L3

main75075-33060-D2iMCV20199908-200010

GRAY ME.,1C0

main75075-33060-D3iMCV20200010

GRAY ME.,1B2

main75075-33060-D4iMCV20200010

GRAY ME.,1C0

main75075-33060-E0iMCV20199608-199808

DK.GRAY ME.,6P2 ,8L3

main75075-33060-E1iMCV20199608-199908

LT.GRAYISH BEIGE ME.,051 ,4M9

main75075-33060-E2iMCV20199908-200010

GRAY ME.,1C6

main75075-33060-E4iMCV20200010

GRAY ME.,1C6

main75075-33060-E5iMCV20200010

LT.GRAYISH BEIGE ME.,4M9

main75075-33060-F0iMCV20199908-200010

GRAYISH GREEN M.M.,6R6

main75075-33060-F1iMCV20200010

GRAYISH GREEN M.M.,6R6

main75075-33060-H1iMCV20..GCC199810-199908

MEDIUM GRAY ME.,202 ,6R1 ,8L3

main75075-33060-H2iMCV20..GCC200010

MEDIUM GRAY ME.,202

75076MOULDING SUB-ASSY, REAR DOOR, OUTSIDE LH

main75076-33060-B0iMCV20199808-200010

DARK RED ME.,3N6

main75076-33060-B2iMCV20..GCC200001-200007

LT.GRAY ME.,4P2

main75076-33060-B3iMCV20200010

DARK RED ME.,3N6

main75076-33060-C0iMCV20199608-199908

LT.GRAY ME.,4M7

main75076-33060-C1iMCV20199908-200010

SILVER M.,051

main75076-33060-C2iMCV20200010

SILVER M,,051

main75076-33060-D0iMCV20199608-200010

GRAY ME.,1B2

main75076-33060-D1iMCV20199608-199808

DK.WINE RED MC.,3L3

main75076-33060-D2iMCV20199908-200010

GRAY ME.,1C0

main75076-33060-D3iMCV20200010

GRAY ME.,1B2

main75076-33060-D4iMCV20200010

GRAY ME.,1C0

main75076-33060-E0iMCV20199608-199808

DK.GRAY ME.,6P2 ,8L3

main75076-33060-E1iMCV20199608-199908

LT.GRAYISH BEIGE ME.,051 ,4M9

main75076-33060-E2iMCV20199908-200010

GRAY ME.,1C6

main75076-33060-E4iMCV20200010

GRAY ME.,1C6

main75076-33060-E5iMCV20200010

LT.GRAYISH BEIGE ME.,4M9

main75076-33060-F0iMCV20199908-200010

GRAYISH GREEN M.M.,6R6

main75076-33060-F1iMCV20200010

GRAYISH GREEN M.M.,6R6

main75076-33060-H1iMCV20..GCC199908-200010

MEDIUM GRAY ME.,202

main75076-33060-H2iMCV20..GCC200010

MEDIUM GRAY ME.,202

75392ARETAINER, OUTSIDE MOULDING, NO.1

main75392-33020×8iMCV20199608

75396CLIP, OUTSIDE MOULDING, NO.2

main75396-33040×6iMCV20199608

75396DCLIP, OUTSIDE MOULDING, NO.2

main75396-33050×4iMCV20199608

75397ACLIP, OUTSIDE MOULDING, NO.3

main75395-33020×2iMCV20199608

75397DCLIP, OUTSIDE MOULDING, NO.3

main75397-33010×26iMCV20199608

75397ECLIP, OUTSIDE MOULDING, NO.1

main75395-33030×14iMCV20199608

75398ACLIP, OUTSIDE MOULDING, NO.5

main75398-33010×4iMCV20199608

75398ECLIP, OUTSIDE MOULDING, NO.2

main75398-33020×2iMCV20199608

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75505-33010iMCV20199608

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75506-33010iMCV20199608

75601AMOULDING SUB-ASSY, FRONT FENDER, RH

main75601-33020-B0iMCV20199808-200010

DARK RED ME.,3N6

main75601-33020-B2iMCV20..GCC200001-200007

LT.GRAY ME.,4P2

main75601-33020-B3iMCV20200010

DARK RED ME.,3N6

main75601-33020-C0iMCV20199608-199908

LT.GRAY ME.,4M7

main75601-33020-C1iMCV20199908-200010

SILVER M.,051

main75601-33020-C2iMCV20200010

SILVER M,,051

main75601-33020-D0iMCV20199608-200010

GRAY ME.,1B2

main75601-33020-D1iMCV20199608-199808

DK.WINE RED MC.,3L3

main75601-33020-D2iMCV20199908-200010

GRAY ME.,1C0

main75601-33020-D3iMCV20200010

GRAY ME.,1B2

main75601-33020-D4iMCV20200010

GRAY ME.,1C0

main75601-33020-E0iMCV20199608-199808

DK.GRAY ME.,6P2 ,8L3

main75601-33020-E1iMCV20199908-200010

LT.GRAYISH BEIGE ME.,4M9

main75601-33020-E2iMCV20199908-200010

GRAY ME.,1C6

main75601-33020-E4iMCV20200010

GRAY ME.,1C6

main75601-33020-E5iMCV20200010

LT.GRAYISH BEIGE ME.,4M9

main75601-33020-F0iMCV20199908-200010

GRAYISH GREEN M.M.,6R6

main75601-33020-F1iMCV20200010

GRAYISH GREEN M.M.,6R6

main75601-33020-H1iMCV20..GCC199810-199908

MEDIUM GRAY ME.,202 ,6R1 ,8L3

main75601-33020-H2iMCV20..GCC200010

MEDIUM GRAY ME.,202

75602AMOULDING SUB-ASSY, FRONT FENDER, LH

main75602-33020-B0iMCV20199808-200010

DARK RED ME.,3N6

main75602-33020-B2iMCV20..GCC200001-200007

LT.GRAY ME.,4P2

main75602-33020-B3iMCV20200010

DARK RED ME.,3N6

main75602-33020-C0iMCV20199608-199908

LT.GRAY ME.,4M7

main75602-33020-C1iMCV20..GCC200001-200007

SILVER M.,062

main75602-33020-C2iMCV20200010

SILVER M,,051

main75602-33020-D0iMCV20199608-200010

GRAY ME.,1B2

main75602-33020-D1iMCV20199608-199808

DK.WINE RED MC.,3L3

main75602-33020-D2iMCV20199908-200010

GRAY ME.,1C0

main75602-33020-D3iMCV20200010

GRAY ME.,1B2

main75602-33020-D4iMCV20200010

GRAY ME.,1C0

main75602-33020-E0iMCV20199608-199808

DK.GRAY ME.,6P2 ,8L3

main75602-33020-E1iMCV20199908-200010

LT.GRAYISH BEIGE ME.,4M9

main75602-33020-E2iMCV20199908-200010

GRAY ME.,1C6

main75602-33020-E4iMCV20200010

GRAY ME.,1C6

main75602-33020-E5iMCV20200010

LT.GRAYISH BEIGE ME.,4M9

main75602-33020-F0iMCV20199908-200010

GRAYISH GREEN M.M.,6R6

main75602-33020-F1iMCV20200010

GRAYISH GREEN M.M.,6R6

main75602-33020-H1iMCV20..GCC199810-199908

MEDIUM GRAY ME.,202 ,6R1 ,8L3

main75602-33020-H2iMCV20..GCC200010

MEDIUM GRAY ME.,202

75605BMOULDING SUB-ASSY, QUARTER OUTSIDE, RH

main75605-33030-B0iMCV20199808-200010

DARK RED ME.,3N6

main75605-33030-B2iMCV20..GCC200001-200007

LT.GRAY ME.,4P2

main75605-33030-B3iMCV20200010

DARK RED ME.,3N6

main75605-33030-C0iMCV20199608-199908

LT.GRAY ME.,4M7

main75605-33030-C1iMCV20199908-200010

SILVER M.,051

main75605-33030-C2iMCV20200010

SILVER M,,051

main75605-33030-D0iMCV20199608-200010

GRAY ME.,1B2

main75605-33030-D1iMCV20199608-199808

DK.WINE RED MC.,3L3

main75605-33030-D2iMCV20199908-200010

GRAY ME.,1C0

main75605-33030-D3iMCV20200010

GRAY ME.,1B2

main75605-33030-D4iMCV20200010

GRAY ME.,1C0

main75605-33030-E0iMCV20199608-199808

DK.GRAY ME.,6P2 ,8L3

main75605-33030-E1iMCV20199608-199908

LT.GRAYISH BEIGE ME.,051 ,4M9

main75605-33030-E2iMCV20199908-200010

GRAY ME.,1C6

main75605-33030-E4iMCV20200010

GRAY ME.,1C6

main75605-33030-E5iMCV20200010

LT.GRAYISH BEIGE ME.,4M9

main75605-33030-F0iMCV20199908-200010

GRAYISH GREEN M.M.,6R6

main75605-33030-F1iMCV20200010

GRAYISH GREEN M.M.,6R6

main75605-33030-H1iMCV20..GCC199810-199908

MEDIUM GRAY ME.,202 ,6R1 ,8L3

main75605-33030-H2iMCV20..GCC200010

MEDIUM GRAY ME.,202

75606BMOULDING SUB-ASSY, QUARTER OUTSIDE, LH

main75606-33030-B0iMCV20199808-200010

DARK RED ME.,3N6

main75606-33030-B2iMCV20..GCC200001-200007

LT.GRAY ME.,4P2

main75606-33030-B3iMCV20200010

DARK RED ME.,3N6

main75606-33030-C0iMCV20199608-199908

LT.GRAY ME.,4M7

main75606-33030-C1iMCV20..GCC200001-200007

SILVER M.,062

main75606-33030-C2iMCV20200010

SILVER M,,051

main75606-33030-D0iMCV20199608-200010

GRAY ME.,1B2

main75606-33030-D1iMCV20199608-199808

DK.WINE RED MC.,3L3

main75606-33030-D2iMCV20199908-200010

GRAY ME.,1C0

main75606-33030-D3iMCV20200010

GRAY ME.,1B2

main75606-33030-D4iMCV20200010

GRAY ME.,1C0

main75606-33030-E0iMCV20199608-199808

DK.GRAY ME.,6P2 ,8L3

main75606-33030-E1iMCV20199608-199908

LT.GRAYISH BEIGE ME.,051 ,4M9

main75606-33030-E2iMCV20199908-200010

GRAY ME.,1C6

main75606-33030-E4iMCV20200010

GRAY ME.,1C6

main75606-33030-E5iMCV20200010

LT.GRAYISH BEIGE ME.,4M9

main75606-33030-F0iMCV20199908-200010

GRAYISH GREEN M.M.,6R6

main75606-33030-F1iMCV20200010

GRAYISH GREEN M.M.,6R6

main75606-33030-H1iMCV20..GCC199908-200010

MEDIUM GRAY ME.,202

main75606-33030-H2iMCV20..GCC200010

MEDIUM GRAY ME.,202

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-33060iMCV20199608

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-33060iMCV20199608

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-33060iMCV20199608-200107

75735AMOULDING, FRONT DOOR OUTSIDE, LOWER RH

main75735-33030iMCV20199608

75736AMOULDING, FRONT DOOR OUTSIDE, LOWER LH

main75736-33030iMCV20199608

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-33060iMCV20199608

75745MOULDING, REAR DOOR OUTSIDE, LOWER RH

main75745-33030iMCV20199608

75746MOULDING, REAR DOOR OUTSIDE, LOWER LH

main75746-33030iMCV20199608

75851MOULDING, ROCKER PANEL, RH

main75851-33020iMCV20199608

75852MOULDING, ROCKER PANEL, LH

main75852-33020iMCV20199608

75867ACLIP, ROCKER PANEL MOULDING

main75867-20110×4iMCV20199608

75867CCLIP, ROCKER PANEL MOULDING

main75867-30110×14iMCV20199608

9015945005

main90159-45005

9015960422

main90159-60422

9016240034

main90162-40034

9016440081

main90164-40081

9017905011

main90179-05011

9018904059

main90189-04059

9018904176

main90189-04176

904670509722

main90467-0509722

9046710081

main90467-10081

9095001392

main90950-01392

42 parts on this diagram · 1 diagram in section
