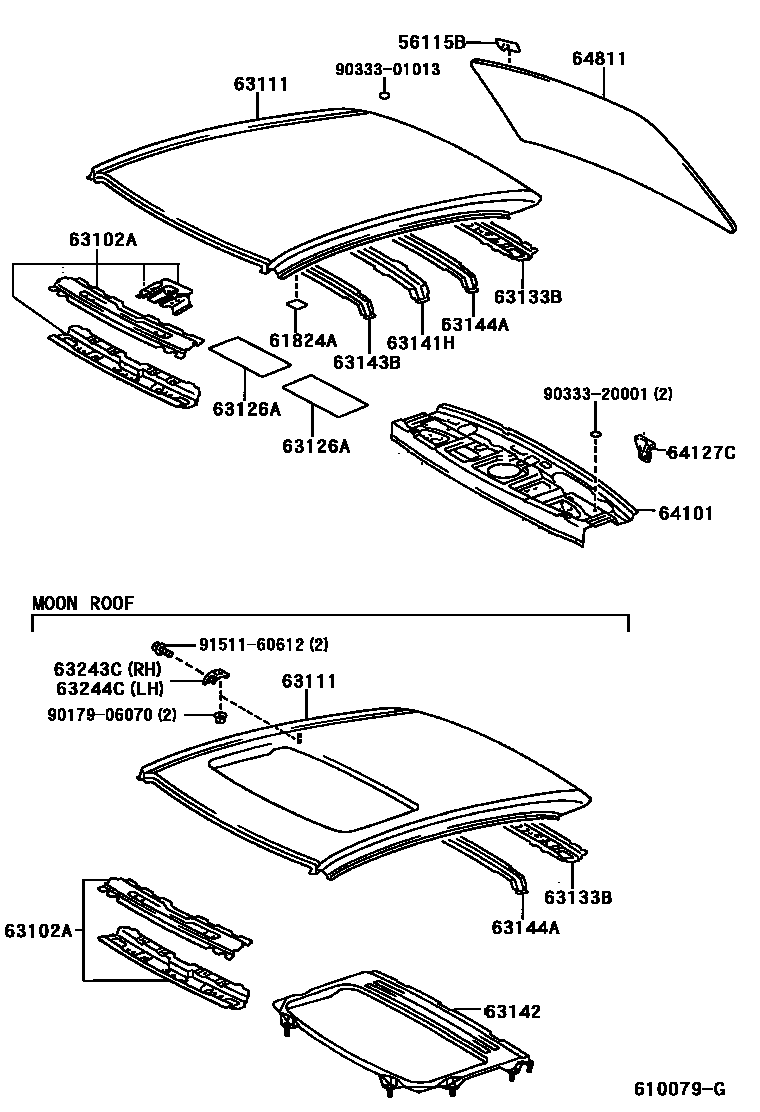

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1W(MOON ROOF)

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56116-35040iMCV20199608

61824APLATE, NOISE CONTROL, NO.1

main62939-23010iMCV20199608

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-33080iMCV20199608-199811

main63102-33081iMCV20199811

main63102-33090iMCV20199608-199811

W(MOON ROOF)

main63102-33091iMCV20199811

W(MOON ROOF)

63111PANEL, ROOF

main63111-33130iMCV20199608

main63111-33140iMCV20199608

W(MOON ROOF)

63126ADAMPER, WINDSHIELD HEADER PANEL

main63126-32010iMCV20199608

63133BFRAME, BACK WINDOW

main63133-33030iMCV20199608

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-33030iMCV20199608

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-33020iMCV20199608

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-33030iMCV20199608

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-33040iMCV20199608

main63144-33050iMCV20199608

W(MOON ROOF)

63243CBRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH

main63243-33060iMCV20199608

63244CBRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH

main63243-33060iMCV20199608

64101PANEL SUB-ASSY, UPPER BACK

main64101-33210iMCV20..GCC199810-199908

main64101-33220iMCV20..ARL199608-199908

64127CBRACKET, LUGGAGE DOOR DAMPER STAY

main64127-32050iMCV20199608

64811GLASS, BACK WINDOW

main64811-33290iMCV20199608

*UVCEHTT,T=3.5,GREEN

9017906070

main90179-06070

9033301013

main90333-01013

9033320001

main90333-20001

9151160612

main91511-60612

19 parts on this diagram · 2 diagrams in section
