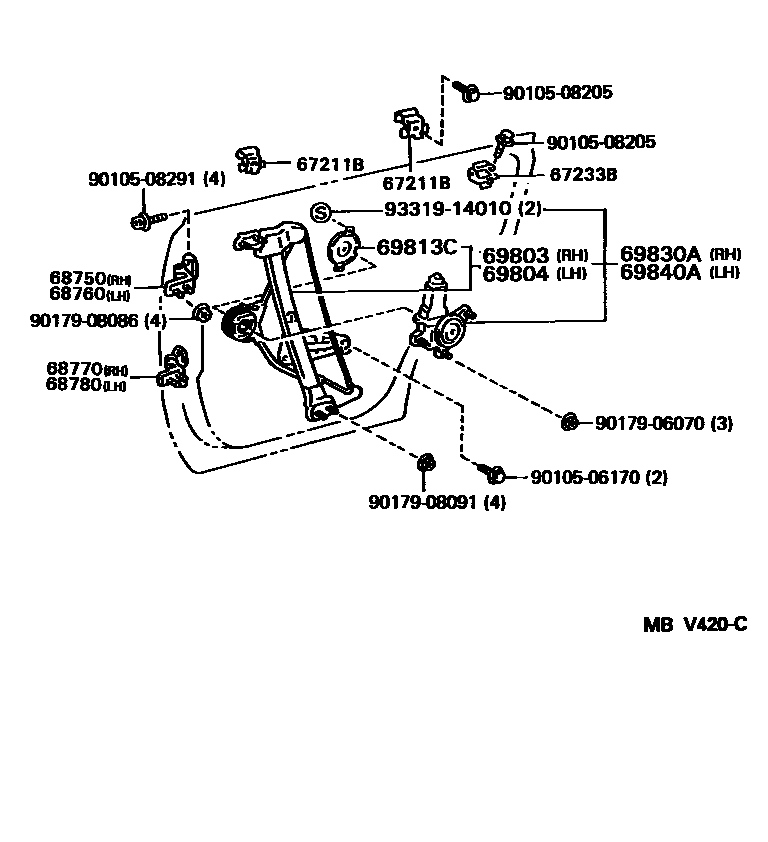

REAR DOOR WINDOW REGULATOR & HINGE

67211BSTOP, REAR DOOR WINDOW, UPPER

main67211-32040×4iVCV10199203-199608

67233BSUPPORT, REAR DOOR TRIM

main67233-32010×4iVCV10199203-199303

STAMPED NO.1

main67233-32020×4iVCV10199203-199303

STAMPED NO.2

main67233-32030×4iVCV10199203-199303

STAMPED NO.3

main67233-32040×4iVCV10199303-199608

STAMPED NO.1

main67233-32050×4iVCV10199303-199608

STAMPED NO.2

main67233-32060×4iVCV10199303-199608

STAMPED NO.3

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-32041iVCV10199203-199608

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-32041iVCV10199203-199608

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-32051iVCV10199203-199608

68780HINGE ASSY, REAR DOOR, LOWER LH

main68770-32051iVCV10199203-199608

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-32060iVCV10199203-199409

main69803-32061iVCV10199409-199608

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-32060iVCV10199203-199409

main69804-32061iVCV10199409-199608

69813CPLATE, REAR DOOR POWER WINDOW REGULATOR BASE

main69813-20050iVCV10199501-199608

RH

main69813-32030×2iVCV10199203-199409

main69814-20050iVCV10199501-199608

LH

69830AREGULATOR ASSY, REAR DOOR WINDOW, RH

main69830-32100iVCV10199203-199409

main69830-32101iVCV10199409-199608

69840AREGULATOR ASSY, REAR DOOR WINDOW, LH

main69840-32100iVCV10199203-199409

main69840-32101iVCV10199409-199608

9010506170

main90105-06170

9010508205

main90105-08205

9010508291

main90105-08291

9017906070

main90179-06070

9017908086

main90179-08086

9017908091

main90179-08091

9331914010

main93319-14010

18 parts on this diagram · 1 diagram in section
