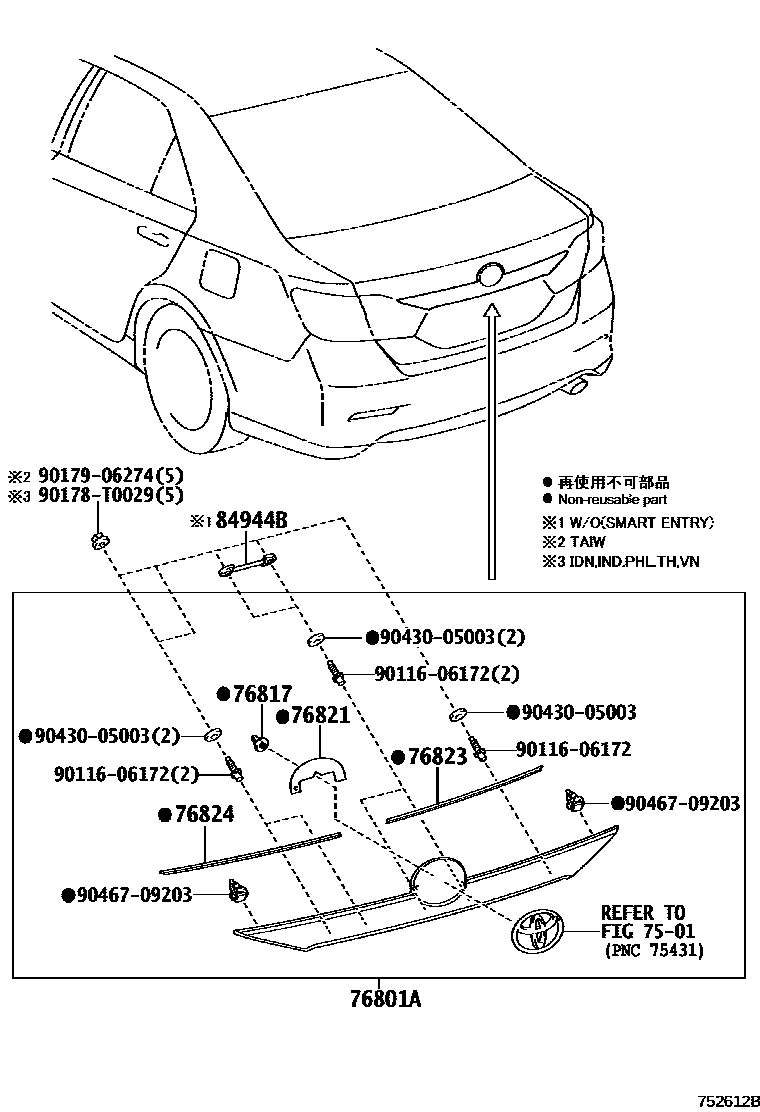

REAR MOULDING

0001 1 0004 1 0005 1

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE

main76801-06790iACV51,ASV50..N..TAIW201112-201503

PLATED

main76801-06800iASV50..E..TAIW201112-201503

PLATED

main76801-06810iAVV50..V..TAIW201202-201503

PLATED

main76801-06820iACV51,ASV50..TH201203-201402

PLATED

main76801-06830iASV50..G..(IDN,IND,PHL)201203-201504

PLATED

main76801-06840iAVV50..RHD..V201203-201504

PLATED

main76801-06A20iAVV50..G..TAIW201202-201503

PLATED

main76801-06A30iAVV50..G..TH201203-201502

PLATED

76817CLIP, BACK DOOR OUTSIDE GARNISH

main76817-12060iACV51,ASV50;AVV50..IND,TAIW,TH201112-201504

76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER

main76821-06030iACV51,ASV50,AVV50..TAIW201112-201503

main76821-06050iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201504

main76821-06060iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201502-201903

main76821-06070iASV51,AVV50..TAIW201503-202007

76823PROTECTOR, BACK DOOR GARNISH MOULDING, RH

main76824-06020iACV51,ASV50,AVV50..TAIW201112-201503

main76824-06040iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201504

main76824-06060iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201502-201903

main76824-06070iASV51,AVV50..TAIW201503-202007

76824PROTECTOR, BACK DOOR GARNISH MOULDING, LH

main76825-06220iACV51,ASV50,AVV50..TAIW201112-201503

main76825-06230iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201504

main76825-06250iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201502-201903

main76825-06260iASV51,AVV50..TAIW201503-202007

84944BCOVER, LUGGAGE ELECTRICAL KEY SWITCH

main84944-33020iACV51,ASV50..N;ASV50..E..(IDN,PHL,VN)201112-201504

9011606172

main90116-06172

90178T0029

main90178-T0029

9017906274

main90179-06274

9043005003

main90430-05003

9046709203

main90467-09203

12 parts on this diagram · 3 diagrams in section
