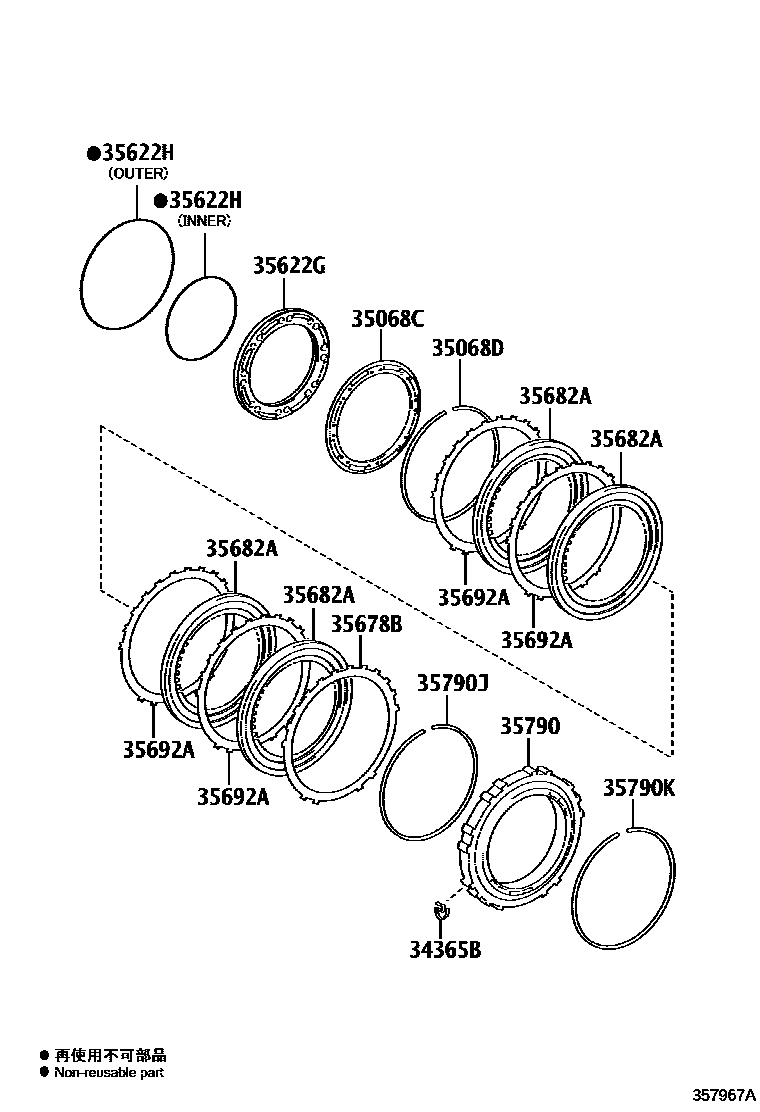

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
34365BRETAINER, OUTER RACE
35068CSPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN
35068DRING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)
35622GPISTON, BRAKE, NO.2
TRANSAXLE NO.=XXTXXX
TRANSAXLE NO.=XXAXXX
TRANSAXLE NO.=XXAXXX
35622HRING, O (FOR BRAKE PISTON NO.2)
INNER
OUTER
35678BFLANGE, BRAKE, NO.2
T=4.0,MARK 40,TRANSAXLE NO.=XXAXXX
T=4.1,MARK 41,TRANSAXLE NO.=XXAXXX
T=4.1,MARK 42,TRANSAXLE NO.=XXAXXX
T=4.1,MARK 43,TRANSAXLE NO.=XXAXXX
T=4.1,MARK 44,TRANSAXLE NO.=XXAXXX
T=4.0,MARK 40
T=4.1,MARK 41
T=4.2,MARK 42
T=4.3,MARK 43
T=4.4,MARK 44,TRANSAXLE NO.=XXTXXX
T=4.5,MARK 45
T=4.6,MARK 46
T=4.7,MARK 47
T=4.0,MARK 40A
T=4.1,MARK 41A
T=4.2,MARK 42A
T=4.3,MARK 43A
T=4.4,MARK 44A,TRANSAXLE NO.=XXAXXX
35692APLATE, BRAKE, NO.2
35790CLUTCH ASSY, 1 WAY
35790JRING, SNAP NO.1 (FOR 1 WAY CLUTCH)
35790KRING, SNAP NO.2 (FOR 1 WAY CLUTCH)
11 parts on this diagram · 2 diagrams in section
