REAR MOULDING
76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
SUPER WHITE 2,040
SILVER ME.,1D4
GRAY ME.,1G3
BLACK,202
BEIGE ME.,4R0
LT.GREEN ME.,6V1
SUPER WHITE 2,040
SILVER ME.,1D4
GRAY ME.,1G3
SILVER ME.,1F7
BLACK,202
BEIGE ME.,4R0
DK.BROWN ME.,4U5
LT.GREEN ME.,6V1
DK.BLUE MC.,8S6
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.,TW 2.4E SE PACKAGE
76817CLIP, BACK DOOR OUTSIDE GARNISH
76818APAD, LUGGAGE GARNISH, NO.1
76819ASEAL, LUGGAGE COMPERTMENT DOOR MOULDING, RH
76819BPAD, LUGGAGE GARNISH, NO.2
76821APROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH
76825PROTECTOR, BACK DOOR OUTSIDE GARNISH
76826RETAINER, BACK DOOR GARNISH, NO.1
76827RETAINER, BACK DOOR GARNISH, NO.2
AUDIO-6CD CHANGER,6SPEAKER; AUDIO-RADIO LESS(WITH/COVER),6SPEAKER
76827ARETAINER, BACK DOOR GARNISH, NO.2
76829SEAL, LUGGAGE COMPERTMENT DOOR MOULDING, LH
9017905102
main90179-05102
9043004260
main90430-04260

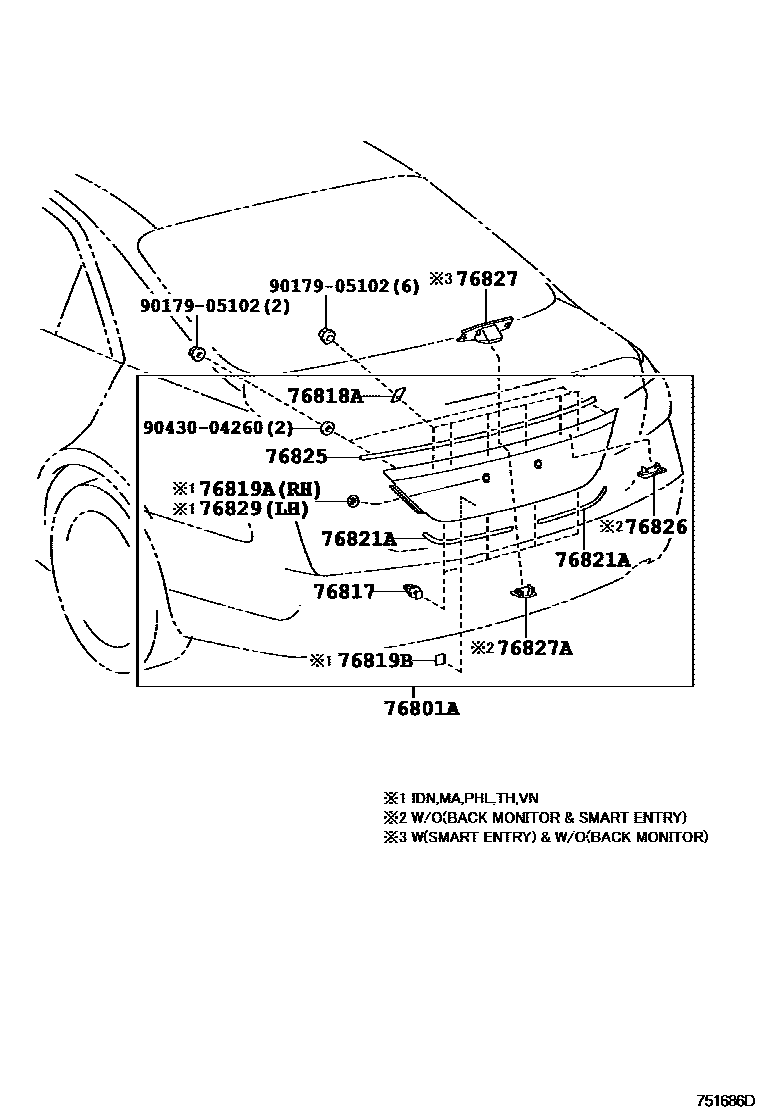

13 parts on this diagram · 1 diagram in section
