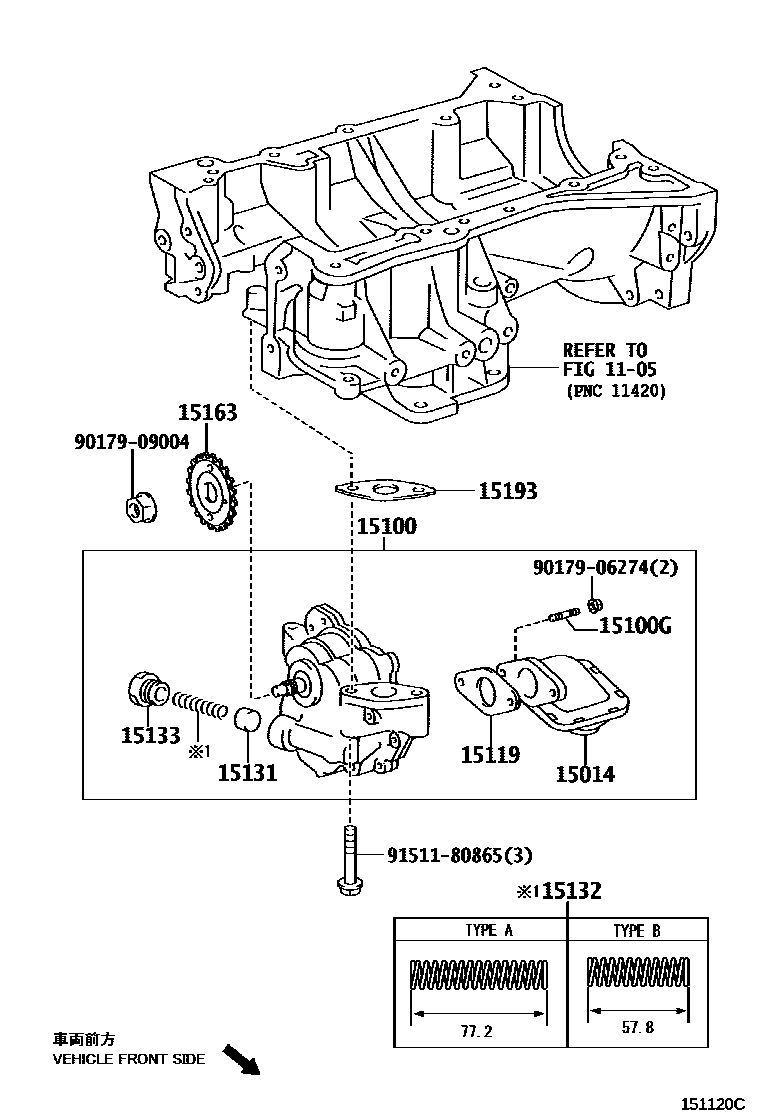

ENGINE OIL PUMP

0001 1 0002 1

1105CYLINDER BLOCK

→ Go to FIG 11-05

15014STRAINER SET, OIL PUMP

main15014-0H020i1AZFE..ACV41..20G..TAIW200605-200709

(L)

main15014-0H030i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH,VN200907

(L)

main15014-28020i2AZFXE..AHV40200907

15100PUMP ASSY, OIL

main15100-0H020i1AZFE,2AZFE..ACV4#..(20E,24E,24G)..TAIW200605-200903

(L)

main15100-0H030i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH200608-200907

(L)

main15100-28020i2AZFE..ACV40..VN200605-200909

(J)

15100GBOLT,STUD(FOR OIL PUMP)

main15183-0H020×2i1AZFE,2AZFE..ACV4#..(20E,24E,24G)..TAIW200605-200903

(L)

main15183-0H030×2i2AZFE..ACV40..VN200608-200909

(L)

main15183-28020×2i2AZFXE..AHV40200907

15119GASKET, OIL PUMP COVER

main15119-0H030i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH200609-200907

(L)

main15119-28020i2AZFXE..AHV40200907

15131VALVE, OIL PUMP RELIEF

main15131-17010i2GRFE..GSV40..VN200605-200909

main15131-46040i2AZFE..ACV40..24E..TAIW;1AZFE,2AZ#..ACV4#,AHV40..20,20E,20G,24G,24V,HBD200903

15132SPRING, OIL PUMP RELIEF VALVE

main15132-0H020i1AZFE..ACV41..20G..TAIW200605-200709

TYPE A:REFER ILLUST.

main15132-0H030i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH,VN200907

TYPE A:REFER ILLUST.

main15132-46020i2AZFE..ACV40..24E..TAIW;1AZFE,2AZFE..ACV4#..20,20E,20G,24G,24V; 2GRFE..GSV40200903

TYPE B:REFER ILLUST.

15133PLUG, OIL PUMP RELIEF VALVE

main15133-0H020i1AZFE,2AZFE..ACV4#..(20E,24E,24G)..TAIW200605-200903

(L)

main15133-0H030i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH200609-200907

(L)

main15133-28020i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH; 2GRFE..GSV40..IDN,PHL,TH200605-200907

(J)

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-0H031i2AZFE..ACV40..VN200605-200909

(L)

main15163-28010i2AZFE..ACV40..24E..TAIW;1AZFE,2AZFE..ACV4#..20,20E,20G,24G,24V200903

(J)

15193GASKET, OIL PUMP

main15193-28010i2AZFE..ACV40..VN200605-200909

main15193-31020i2GRFE..GSV40200903

9017906274

main90179-06274

9017909004

main90179-09004

9151180865

main91511-80865

13 parts on this diagram · 2 diagrams in section
