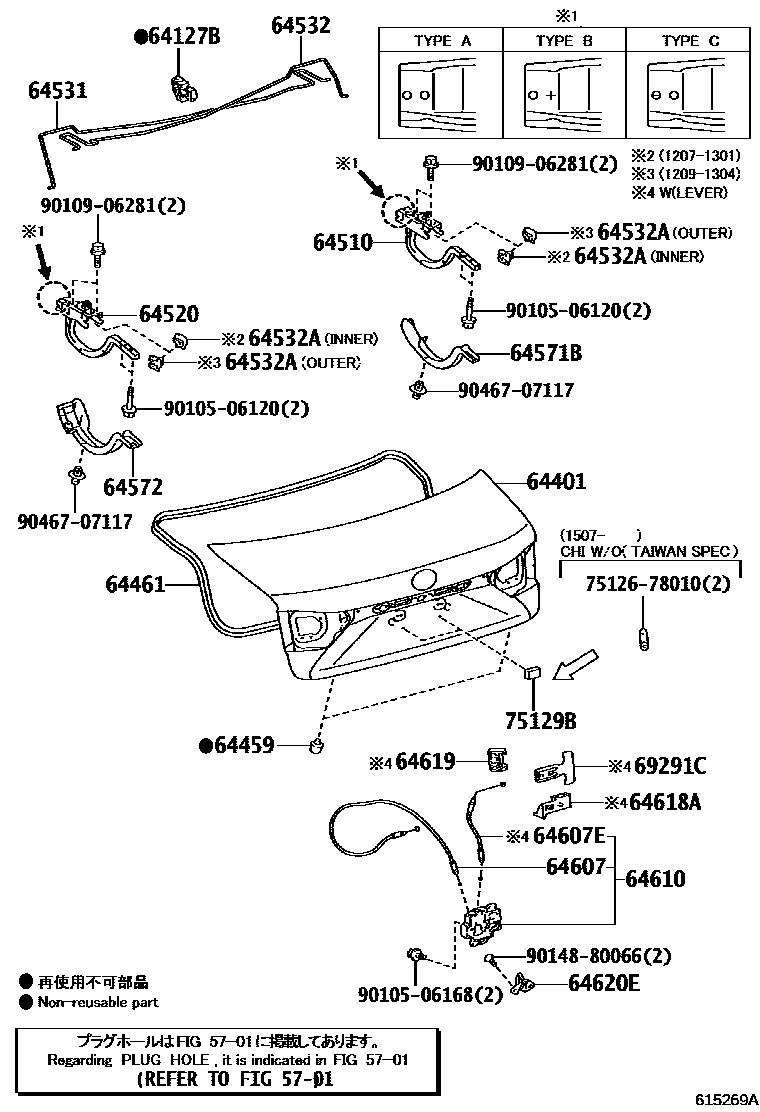

LUGGAGE COMPARTMENT DOOR & LOCK
5701HOLE PLUG
64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
main64401-33660supersedes 64401-33710iASV60,GSV60..GCC; ASV60..CHI; ASV60..RHD;GSV60..ARL,CHI201206-201507
AUDIO-EMVN & DVD & *MAR & 15SPEAKER; AUDIO-EMVN & DVD & 8SPEAKER; F PACKAGE&AUDIO-EMVN & DVD & 8SPEAKER; G PACKAGE&AUDIO-EMVN & DVD & *MAR & 15SPEAKER; G PACKAGE&AUDIO-EMVN & DVD & 8SPEAKER
TAIWAN SPEC&AUDIO-*DA & DVD & 8SPEAKER; TAIWAN SPEC&AUDIO-EMVN & DVD & *MAR & 15SPEAKER; TAIWAN SPEC&AUDIO-EMVN & DVD & 8SPEAKER
64459CUSHION, LUGGAGE COMPARTMENT DOOR
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
EASY CLOSER DOOR-WITHOUT,TYPE A:REFER ILLUST.; TYPE A:REFER ILLUST.
EASY CLOSER DOOR-WITHOUT,TYPE A:REFER ILLUST.; TYPE A:REFER ILLUST.
EASY CLOSER DOOR-WITHOUT,TYPE B:REFER ILLUST.; TYPE B:REFER ILLUST.
EASY CLOSER DOOR-WITHOUT,TYPE B:REFER ILLUST.; TYPE B:REFER ILLUST.
EASY CLOSER DOOR-WITHOUT,TYPE C:REFER ILLUST.; TYPE C:REFER ILLUST.
EASY CLOSER DOOR-WITHOUT,TYPE C:REFER ILLUST.; TYPE C:REFER ILLUST.
D PACKAGE,TYPE A:REFER ILLUST.; EASY CLOSER DOOR-WITH(DOOR & TRUNK) & POWER TRUNK LID,TYPE A:REFER ILLUST.; TYPE A:REFER ILLUST.
AUTO & EASY CLOSER DOOR-WITH,TYPE A:REFER ILLUST.
D PACKAGE,TYPE B:REFER ILLUST.; EASY CLOSER DOOR-WITH(DOOR & TRUNK) & POWER TRUNK LID,TYPE B:REFER ILLUST.; TYPE B:REFER ILLUST.
AUTO & EASY CLOSER DOOR-WITH,TYPE B:REFER ILLUST.; D PACKAGE,TYPE B:REFER ILLUST.
D PACKAGE,TYPE C:REFER ILLUST.; EASY CLOSER DOOR-WITH(DOOR & TRUNK) & POWER TRUNK LID,TYPE C:REFER ILLUST.; TYPE C:REFER ILLUST.
AUTO & EASY CLOSER DOOR-WITH,TYPE C:REFER ILLUST.; D PACKAGE,TYPE C:REFER ILLUST.
64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE C:REFER ILLUST.
TYPE C:REFER ILLUST.
64531BAR, LUGGAGE DOOR HINGE TORSION, RH
D PACKAGE
EASY CLOSER DOOR-WITHOUT
AUTO & EASY CLOSER DOOR-WITH; D PACKAGE
64532BAR, LUGGAGE DOOR HINGE TORSION, LH
AUTO & EASY CLOSER DOOR-WITH; D PACKAGE
EASY CLOSER DOOR-WITHOUT
AUTO & EASY CLOSER DOOR-WITH; D PACKAGE
64532ABUSH(FOR LUGGAGE DOOR HINGE TORSION BAR)
RH,INNER
LH,INNER
RH,OUTER
LH,OUTER
64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH
EASY CLOSER DOOR-WITHOUT
D PACKAGE; EASY CLOSER DOOR-WITH(DOOR & TRUNK) & POWER TRUNK LID
64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH
64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
EASY CLOSER DOOR-WITHOUT
EASY CLOSER DOOR-WITHOUT
D PACKAGE; EASY CLOSER DOOR-WITH(DOOR & TRUNK) & POWER TRUNK LID
D PACKAGE; EASY CLOSER DOOR-WITH(DOOR & TRUNK) & POWER TRUNK LID
AUTO & EASY CLOSER DOOR-WITH; D PACKAGE
64607ECABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
EASY CLOSER DOOR-WITHOUT
64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR
EASY CLOSER DOOR-WITHOUT
64618ACLAMP, LUGGAGE LOCK CONTROL CABLE
BLACK
64619PLATE, LUGGAGE LOCK CONTROL CABLE
BLACK,TRIM0#,1#,2#; BLACK,TRIM0#,1#,2#,3#
64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR
69291CHANDLE, LUGGAGE COMPARTMENT DOOR, INSIDE
75129BCUSHION, REAR LICENCE PLATE
7512678010STAY, REAR LICENSE PLATE BRACKET, LOWER
main75126-78010
9010506120
main90105-06120
9010506168
main90105-06168
9010906281
main90109-06281
9014880066
main90148-80066
9046707117
main90467-07117
26 parts on this diagram · 2 diagrams in section
