AIR BAG

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-33021iGSV40200605-200908

89170SENSOR ASSY, AIRBAG

main89170-33560supersedes 89170-33540iGSV40..CHI200607-200908

main89170-33580iACV40,GSV40200908-201206

89173ASENSOR, AIRBAG, FRONT RH

main89173-39365iGSV40200605-200908

main89173-39435iACV40,GSV40200908

89174ASENSOR, AIRBAG, FRONT LH

main89173-39365iGSV40200605-200908

main89173-39435iACV40,GSV40200908

89178ASENSOR, SEAT POSITION AIRBAG

main89178-33050iGSV40200605-200908

89833SENSOR, AIRBAG, REAR RH

main89831-30020iACV40,GSV40200908

main89831-33020iGSV40200605-200908

89834SENSOR, AIRBAG, REAR LH

main89831-30020iACV40,GSV40200908

main89831-33020iGSV40200605-200908

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-30010iACV40,GSV40200908

main89831-33010iGSV40200605-200908

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-30010iACV40,GSV40200908

main89831-33010iGSV40200605-200908

9011908C48

main90119-08C48

9155380618

main91553-80618

91553A0825

main91553-A0825

9415180600

main94151-80600

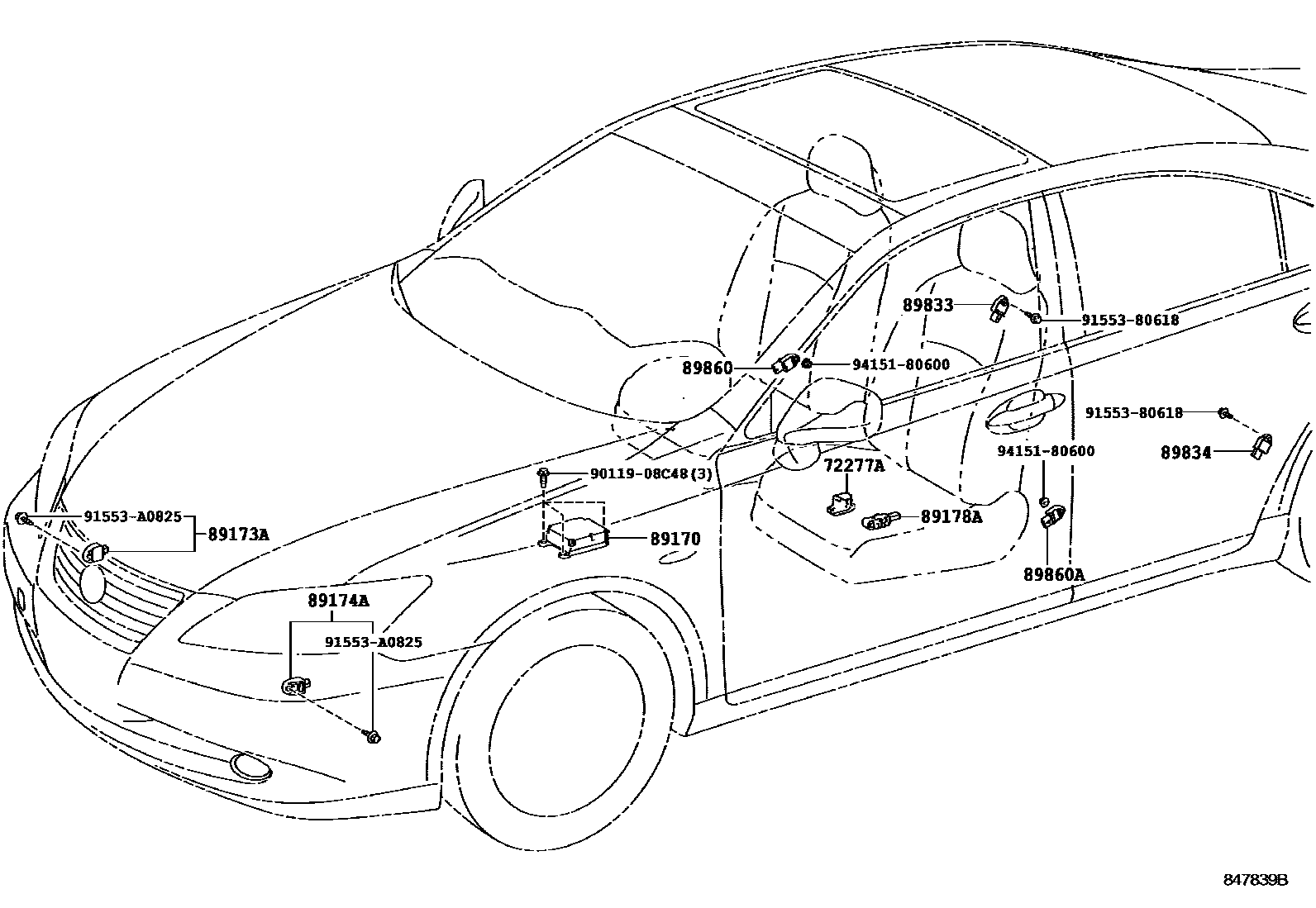

13 parts on this diagram · 1 diagram in section
