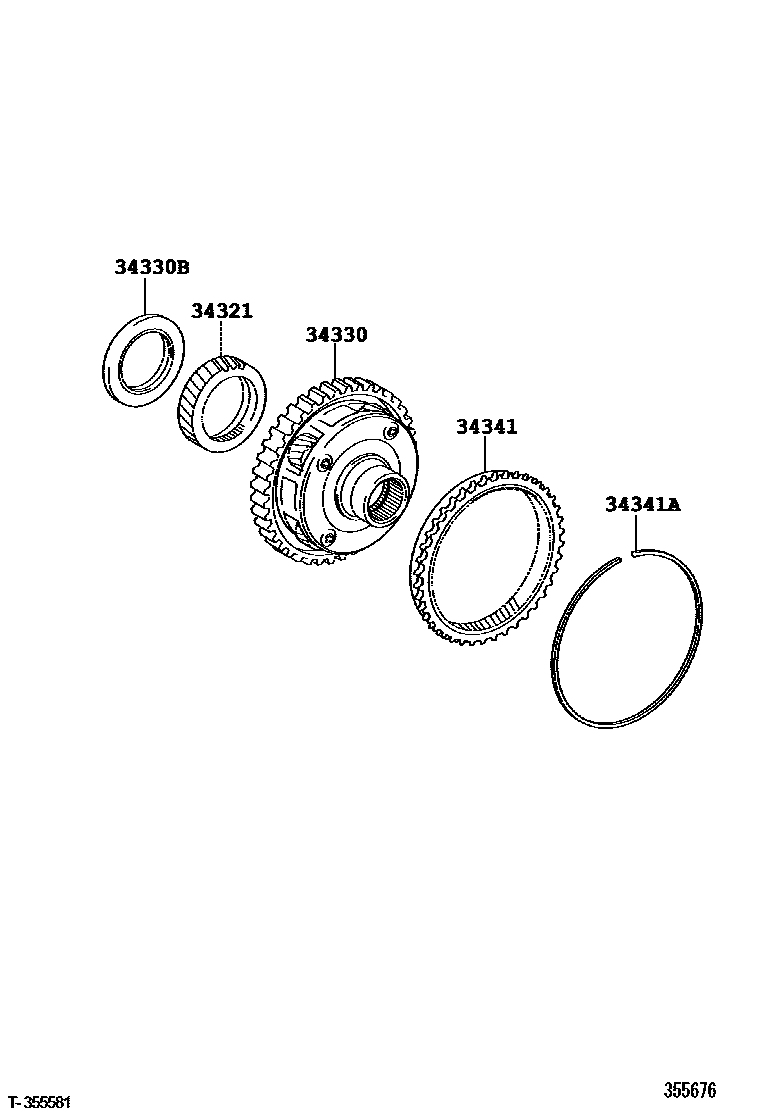

OVERDRIVE GEAR (ATM)

0001 1U660E 0002 1U250E

34321GEAR, UNDERDRIVE PLANETARY SUN

main34321-33010iGSV40200908

34330GEAR ASSY, UNDERDRIVE PLANETARY

main34330-28020iACV40200908

main34330-33040iGSV40200605-200908

34330BBEARING, THRUST NEEDLE ROLLER

main90374-57003iGSV40200605-200908

34341GEAR, UNDERDRIVE PLANETARY RING

main34341-28020iACV40200908

main34341-33030iGSV40200605-200908

34341ARING, HOLE SNAP (FOR UNDERDRIVE PLANETARY RING)

main90520-99104iGSV40200605-200908

main90521-99121iACV40200908

5 parts on this diagram · 2 diagrams in section
