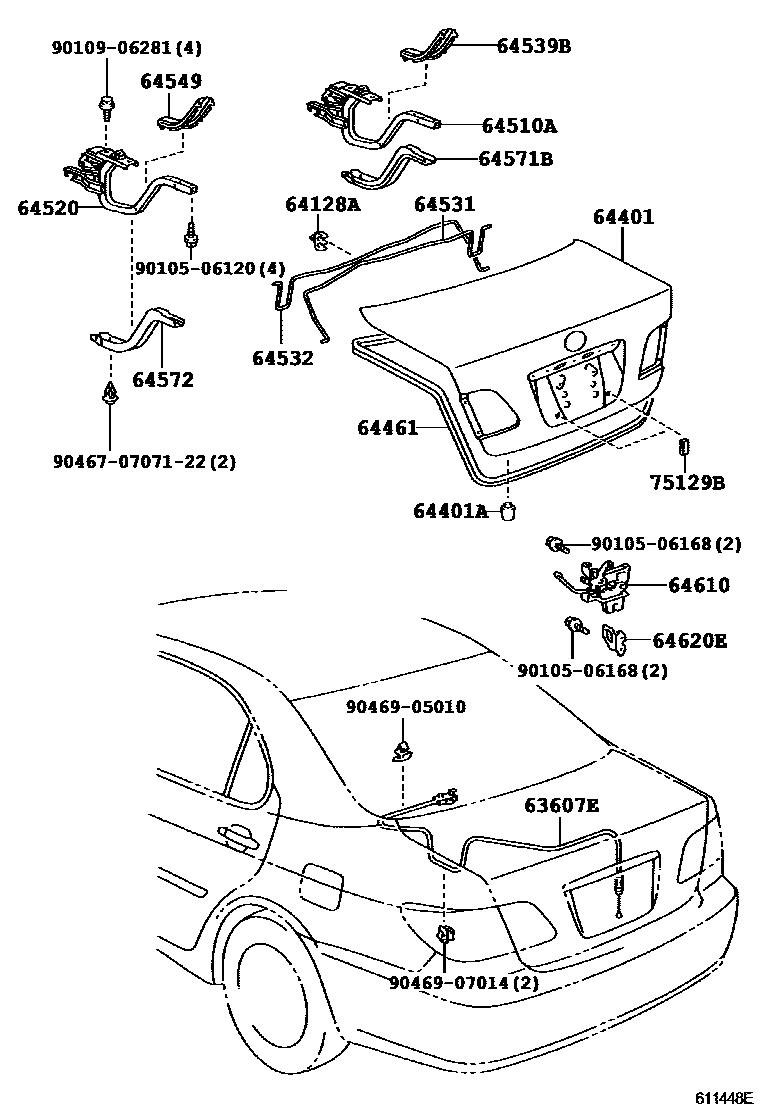

LUGGAGE COMPARTMENT DOOR & LOCK

63607ECABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-33080iMCV30200107-200406

64128ASUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR, NO.2

main64128-33010iMCV30200107-200406

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-33350iMCV30200107-200406

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-09035×2iMCV30200406-200603

main90541-09088×2iMCV30200107-200209

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-33060iMCV30200107-200406

64510AHINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-33030iMCV30200107-200406

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64510-33030iMCV30200107-200406

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-33120iMCV30200107-200406

main64531-33210iMCV30200406-200603

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-33120iMCV30200107-200406

main64532-33210iMCV30200406-200603

64539BPLATE, LUGGAGE DOOR HINGE ARM, RH

main64539-33010iMCV30200107-200406

64549PLATE, LUGGAGE DOOR HINGE ARM, LH

main64549-33010iMCV30200107-200406

64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64571-33010iMCV30200107-200406

64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64572-33010iMCV30200107-200406

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-33100iMCV30200107-200406

64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR

main64621-53010iMCV30200107-200406

75129BCUSHION, REAR LICENCE PLATE

main75129-13020×2iMCV30200107-200406

9010506120

main90105-06120

9010506168

main90105-06168

9010906281

main90109-06281

904670707122

main90467-0707122

9046905010

main90469-05010

9046907014

main90469-07014

22 parts on this diagram · 1 diagram in section
