ELECTRONIC MODULATED SUSPENSION

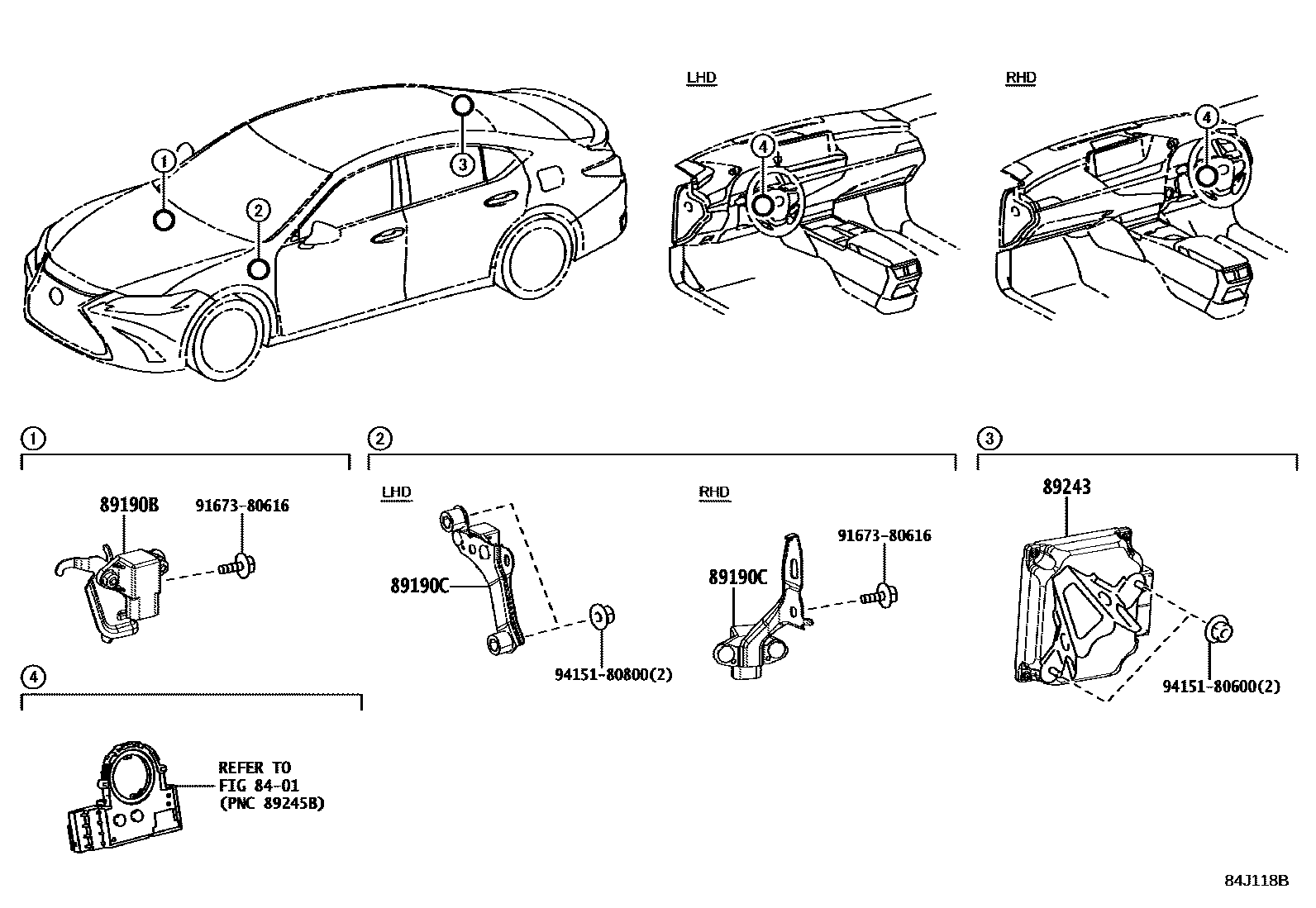

Parts diagram
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
89190BSENSOR ASSY, ACCELERATION, RH
main89190-33040i201907-202108
F SPORT
89190CSENSOR ASSY, ACCELERATION, LH
main89190-33050i202108-202402
F SPORT
main89190-41010i202108-202410
F SPORT
89243COMPUTER, ABSORBER CONTROL
main89243-33110i201807-202008
F SPORT
main89243-33111i202008-202108
F SPORT
main89243-33120i201806-202008
F SPORT
main89243-33121i202008-202108
F SPORT
main89243-33130i202108-202410
F SPORT&TIRE & DISC WHEEL-235/40R19, SUMMER TIRE, FOR F SPORT
main89243-33131i202410
F SPORT&TIRE & DISC WHEEL-235/40R19, SUMMER TIRE, FOR F SPORT
main89243-33140i202108-202410
F SPORT&TIRE & DISC WHEEL-235/40R19, SUMMER TIRE, FOR F SPORT
main89243-33141i202410
F SPORT&TIRE & DISC WHEEL-235/40R19, SUMMER TIRE, FOR F SPORT; TAIWAN SPEC&F SPORT&TIRE & DISC WHEEL-235/40R19, SUMMER TIRE, FOR F SPORT
9167380616
main91673-80616
9415180600
main94151-80600
9415180800
main94151-80800

7 parts on this diagram · 1 diagram in section
