BATTERY CARRIER

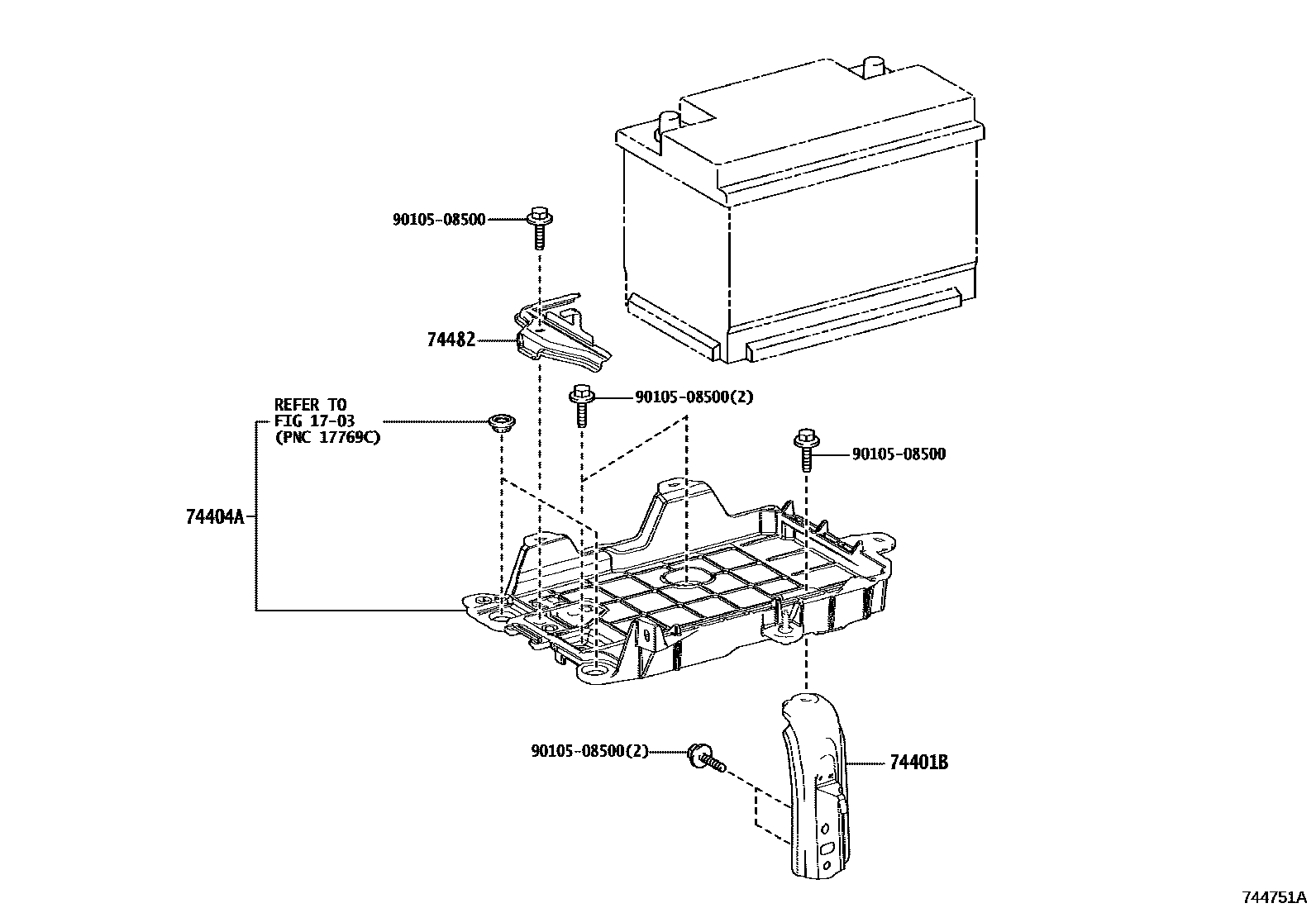

Parts diagram

1703AIR CLEANER

→ Go to FIG 17-03

74401BBRACKET SUB-ASSY, BATTERY CARRIER

main74401-33010i201806-202007

74404ACLAMP SUB-ASSY, BATTERY

main74404-33160i201806-202007

74482CLAMP, BATTERY, NO.2

main74482-33020i201806-202007

9010508500

main90105-08500

5 parts on this diagram · 2 diagrams in section
