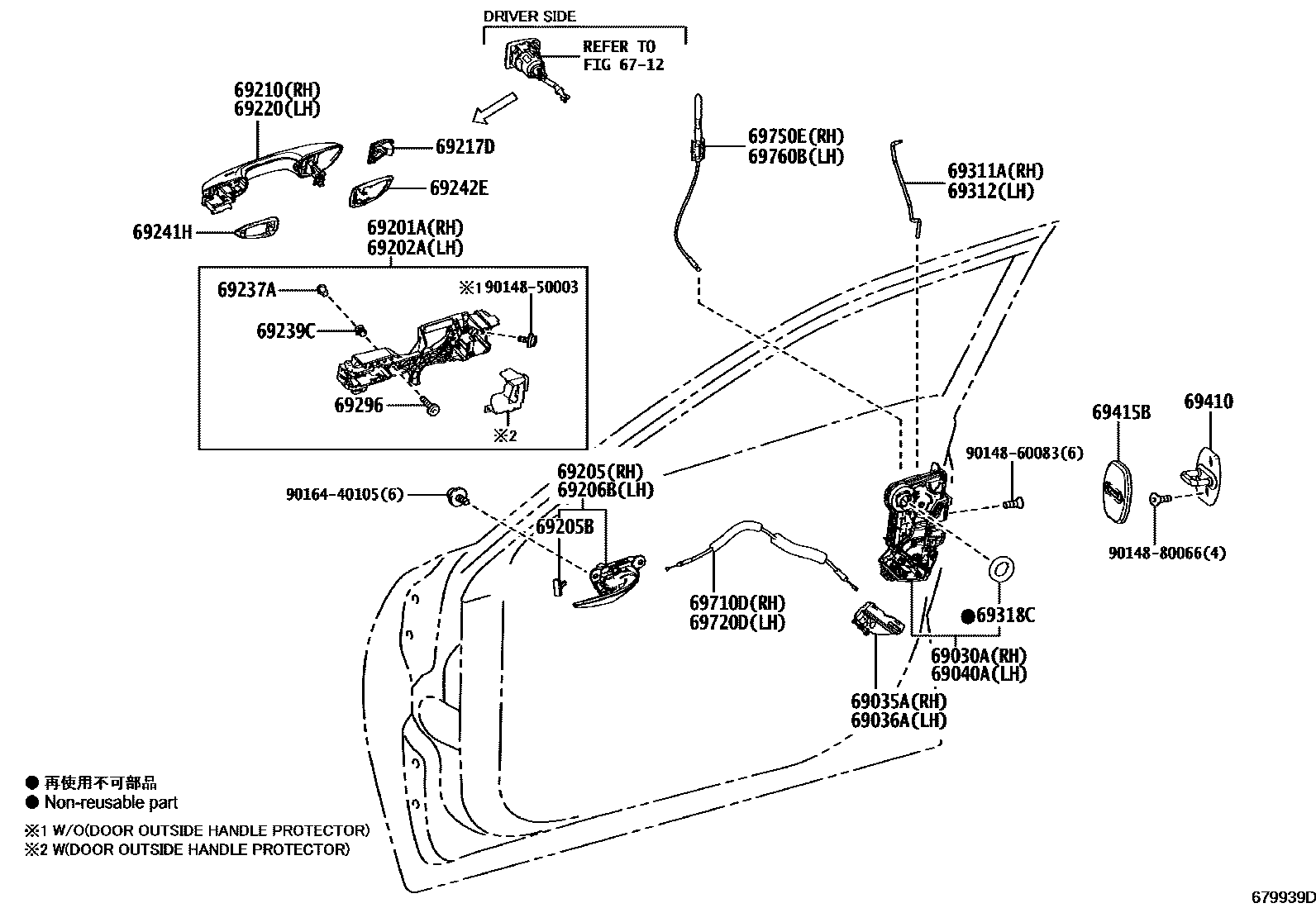

FRONT DOOR LOCK & HANDLE
6712LOCK CYLINDER SET
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
SOUTH AFRICA SPEC
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
main69202-50060iASZ10,AXZA10,GSZ10..EUR; AXZA10,AXZH10,GSZ10..LHD..EUR; AXZH10..RHD;AXZH10..CHI,GCC;ASZ10,AXZA10,GSZ10..ARL,CHI,GCC,GEN201806-201809
AZERBAIJAN SPEC; BELARUS SPEC; GEORGIA SPEC; KAZAKHSTAN SPEC; KYRGYZ SPEC; MOLDOVA SPEC; UKRAINE SPEC; UZBEKISTAN SPEC
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
WHITE NOVA GF.,083
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
BLACK,212
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
ICE ECRU M.M.,4X8
SUNLIGHT GREEN M.M.,6X0
HEAT BLUE CONTRAST LAYERI,8X1
DEEP BLUE MC.,8X5
WHITE NOVA GF.,083
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
SONIC CHROME,1L1
SONIC IRIDIUM,1L2
BLACK,212
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
ICE ECRU M.M.,4X8
SUNLIGHT GREEN M.M.,6X0
HEAT BLUE CONTRAST LAYERI,8X1
DEEP BLUE MC.,8X5
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
BLACK,PASSENGER SIDE ONLY
BLACK,PASSENGER SIDE ONLY
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
WHITE NOVA GF.,083
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
BLACK,212
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
ICE ECRU M.M.,4X8
SUNLIGHT GREEN M.M.,6X0
HEAT BLUE CONTRAST LAYERI,8X1
DEEP BLUE MC.,8X5
WHITE NOVA GF.,083
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
SONIC CHROME,1L1
SONIC IRIDIUM,1L2
BLACK,212
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
ICE ECRU M.M.,4X8
SUNLIGHT GREEN M.M.,6X0
HEAT BLUE CONTRAST LAYERI,8X1
DEEP BLUE MC.,8X5
69237ANUT, FRONT DOOR HANDLE
69239CBUSH, FRONT DOOR HANDLE
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
RH
LH
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
RH
LH
69296SCREW, DOOR INSIDE HANDLE
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69415BCOVER, DOOR LOCK STRIKER, FRONT
69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
9016440105
main90164-40105
31 parts on this diagram · 1 diagram in section
