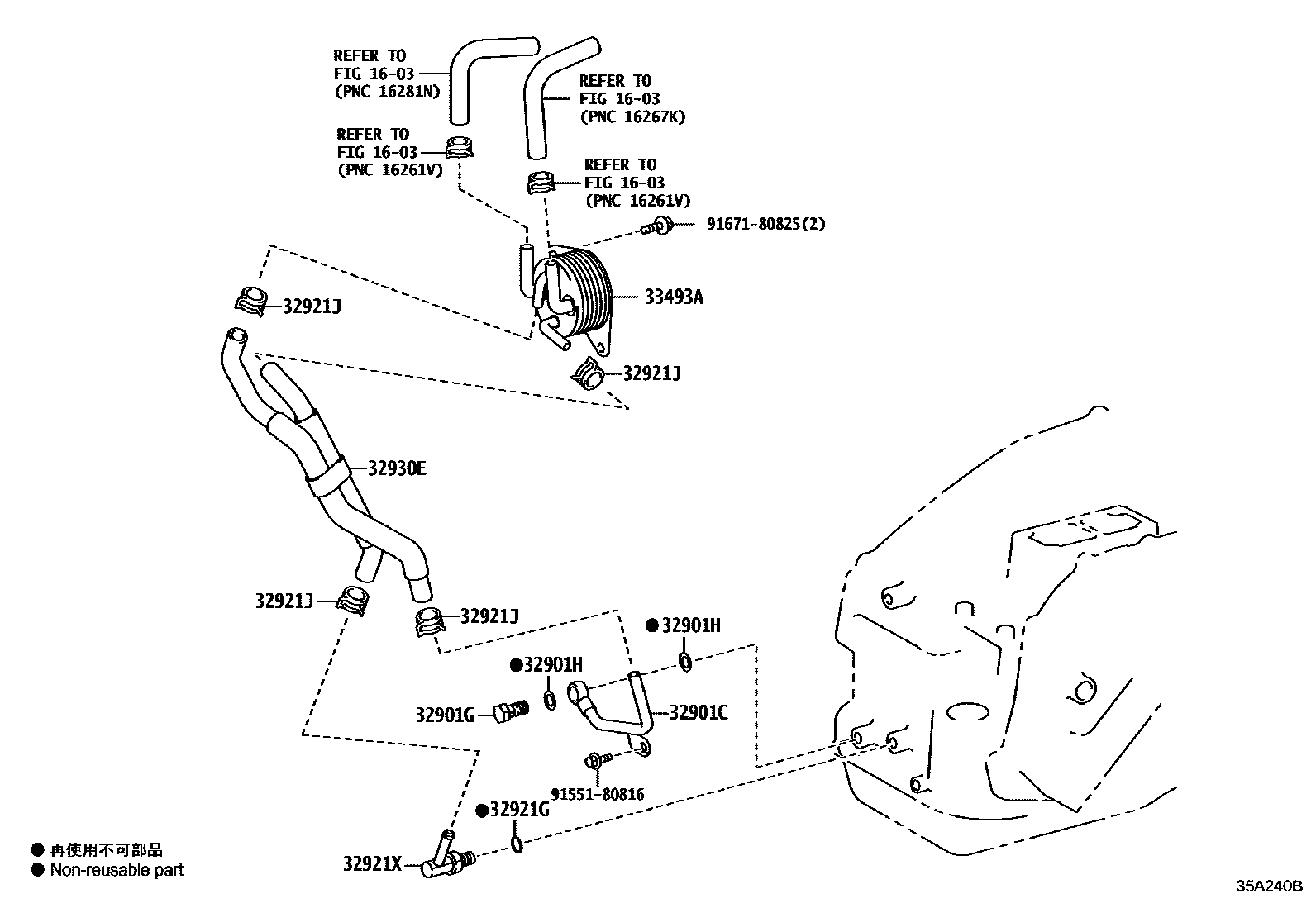

OIL COOLER & TUBE (ATM)

0001 1U761E 0002 1UB80E 0003 1UB80E 0004 1UA80E 0005 1UA80E

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

32901CUNION SUB-ASSY, OIL COOLER

main32901-48010iASZ10201806-202108

main32901-48020iAXZA10201806-202107

32901GBOLT, UNION(FOR OIL COOLER)

main90401-14003iGSZ10201806-202004

TOYOTA:REFER 35-01

32901HGASKET(FOR OIL COOLER UNION)

main90430-14013×2iASZ10201806-202108

main90430-14016×2iGSZ10202006-202107

AISIN AW:REFER 35-01

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11031iGSZ10202006-202107

AISIN AW:REFER 35-01

32921JCLIP(FOR OIL COOLER HOSE)

main90466-16004×4iASZ10..EUR201806-202108

32921XUNION OR ELBOW, OIL COOLER INLET

main90407-14032iASZ10..CHI201806-202007

32930EHOSE ASSY, TRANSMISSION OIL COOLER, NO.1

main32930-33070iASZ10..CHI201806-202007

33493ACOOLER, TRANSMISSION OIL(ATF WARMER)

main33493-33060iAXZA10,GSZ10201806-201911

main33493-33061iAXZA10,GSZ10201911-202108

main33493-33070iASZ10..CHI201806-202007

9155180816

main91551-80816

9167180825

main91671-80825

11 parts on this diagram · 5 diagrams in section
